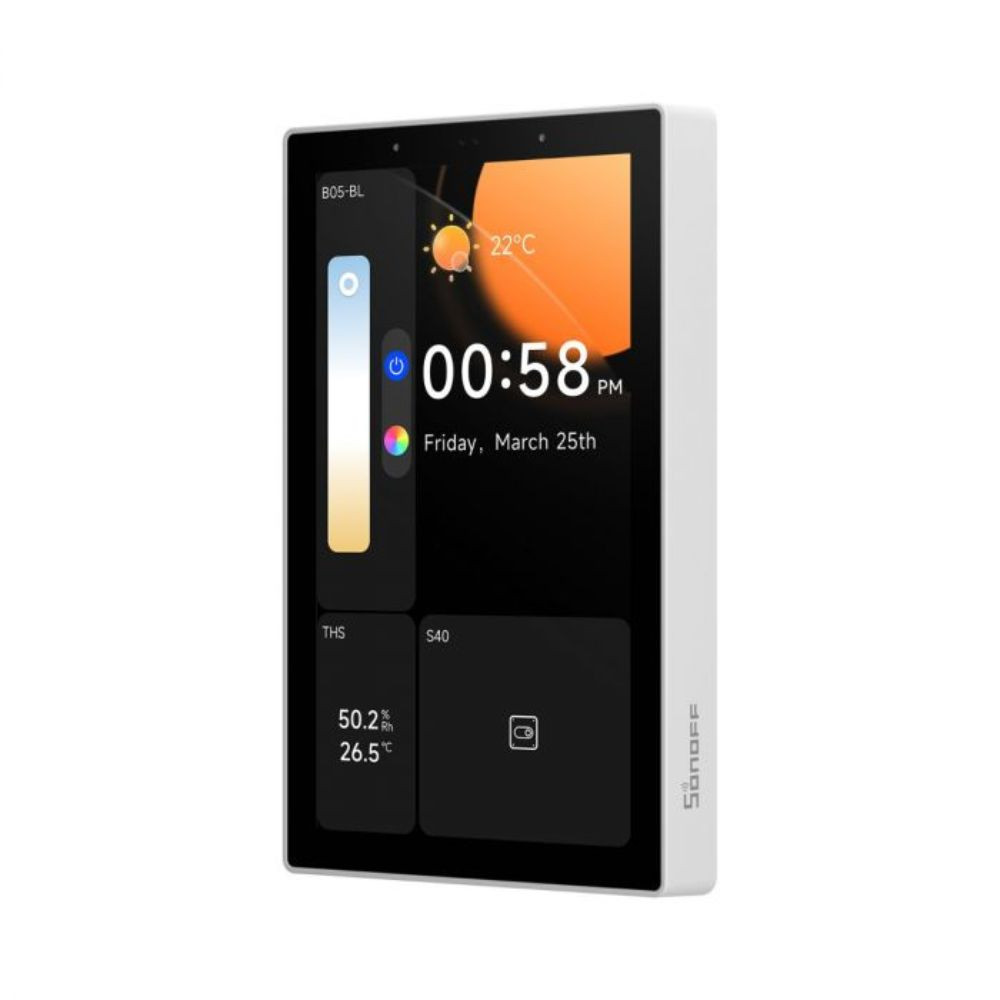

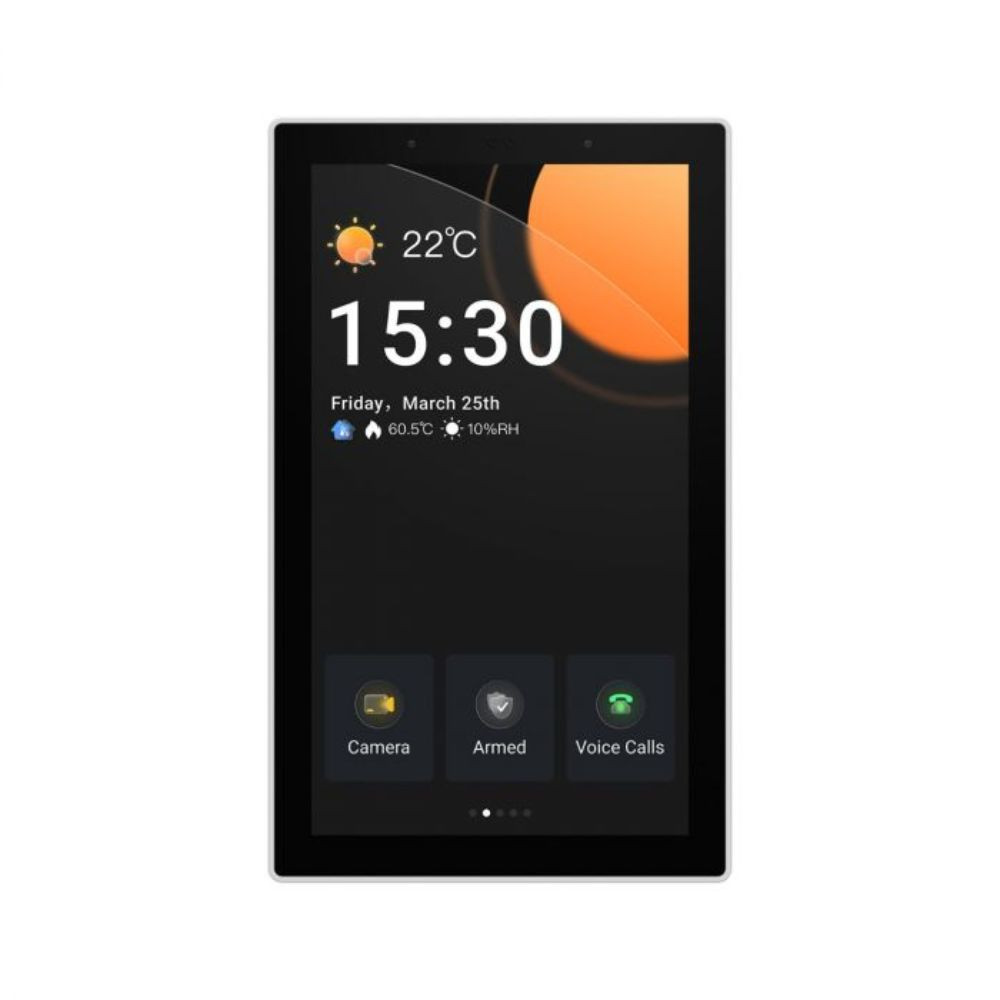

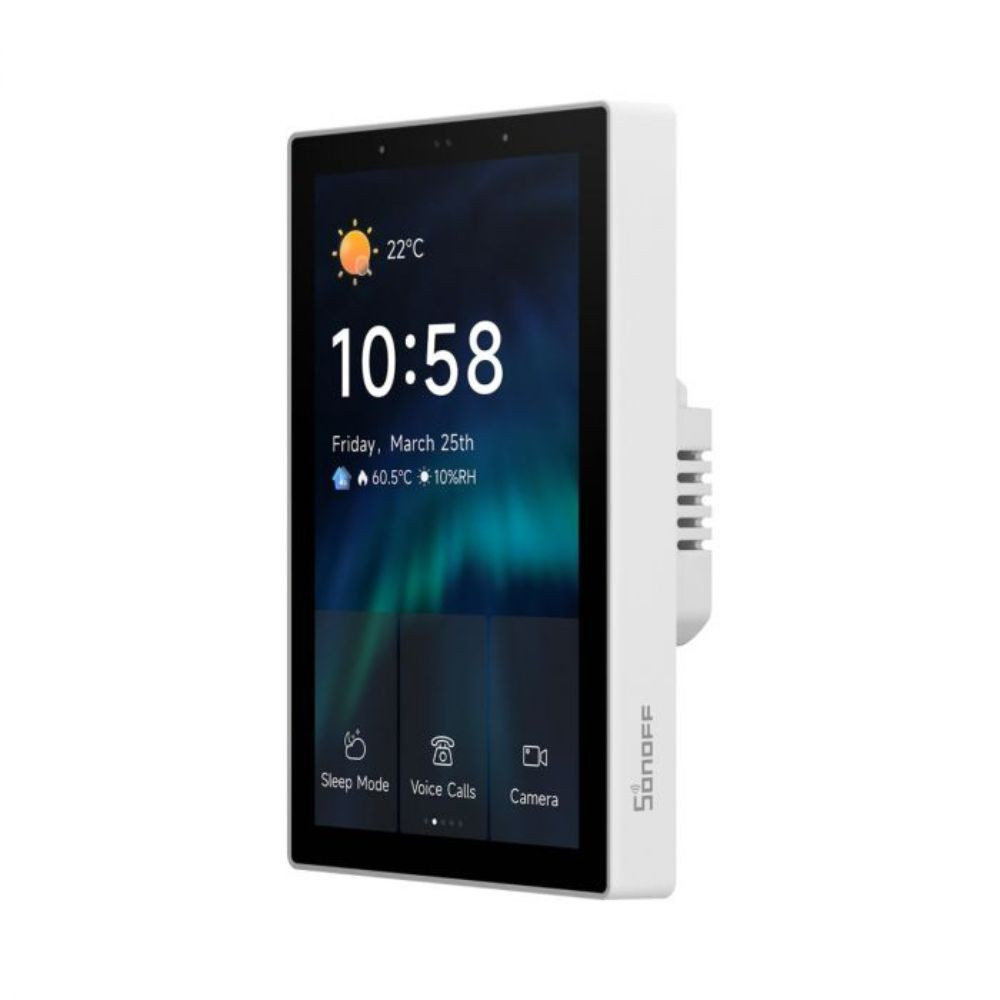

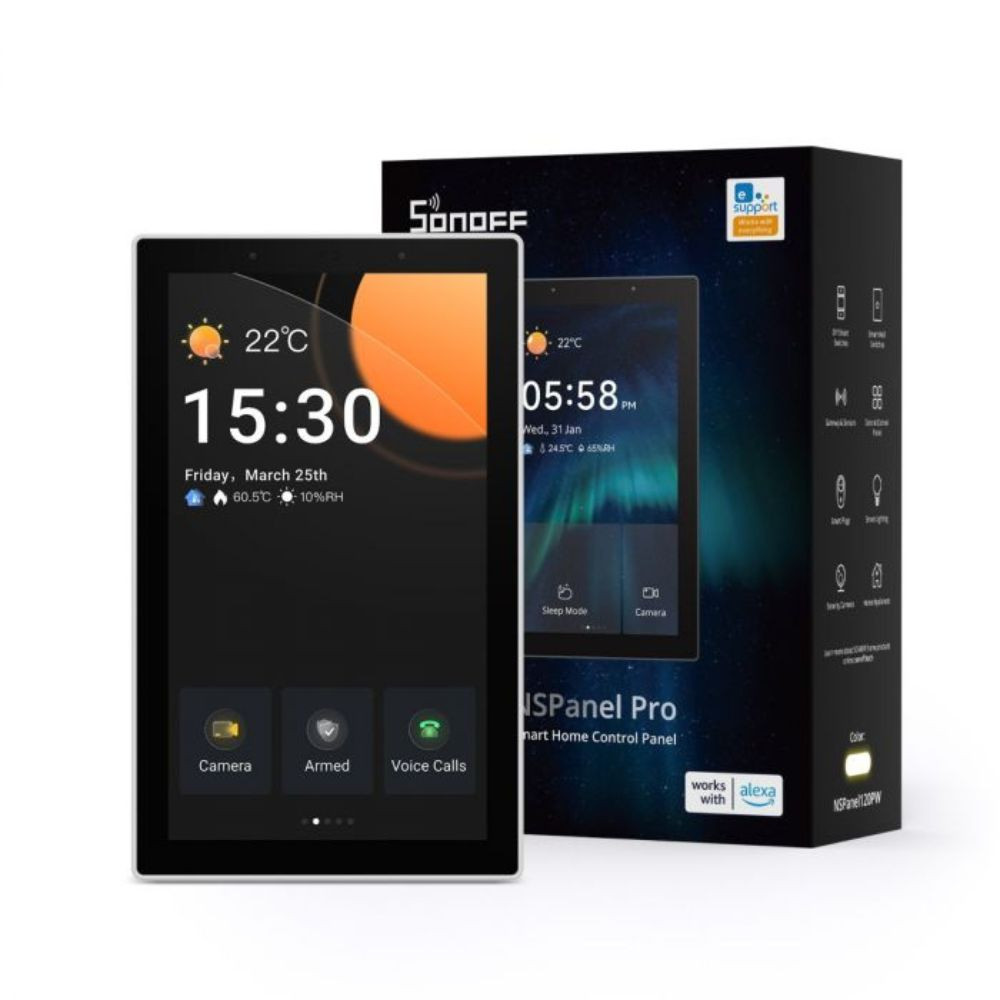

Sonoff NSPanel Pro 120 Overview
The Sonoff NSPanel Pro 120 is a premium, wall-mounted smart home control panel that integrates three functionalities in one device: a Zigbee 3.0 hub, a Matter controller, and a 4.7-inch touchscreen-based eWeLink control panel. It enables centralized control of lighting, thermostats, security devices, and smart scenes, and also displays real-time camera feeds. The panel supports voice control (via Alexa and Google Assistant) and is compatible with Home Assistant and Node-RED platforms.
The NSPanel Pro 120 is an upgraded version of the NSPanel Pro 86, featuring a larger display (750×1334 px), a faster UI, and Matter protocol support. Its built-in microphone and speaker allow for two-way communication, such as video calls or intercom features. The panel’s home screen is customizable, allowing for personalized wallpapers and quick-access websites.
This panel is ideal for users who want to centralize smart home control on a larger screen, especially if using Zigbee 3.0 or Matter devices. It’s easy to install and comes with advanced functions like energy consumption monitoring, security modes, and thermostat control.
About the Sonoff Brand
Sonoff is a leading brand in the smart home market, known especially for DIY and budget-friendly solutions. Its product line includes relays, switches, and sensors that support Wi-Fi and Zigbee protocols. Devices are managed through the eWeLink app, and integrate with Home Assistant, Alexa, Google Home, and IFTTT.
The NSPanel Pro series represents Sonoff’s premium control panels, designed to fit into standard wall switch sockets, offering a tablet-like control interface.
Smart Home Protocols & Platform Compatibility:
- Supported Protocols: Wi-Fi 2.4GHz, Zigbee 3.0, eWeLink-Remote (Bluetooth)
- Local Remote Control: via eWeLink-Remote from Sonoff devices
- Native Platform: eWeLink cloud and mobile app
- Matter Compatibility: Yes, allows adding and controlling Matter devices from various manufacturers
- Cloud Platform Integrations: Google Home, Amazon Alexa, SmartThings
- Third-party Platforms: IFTTT, Home Assistant, Node-RED
- Voice Assistants: Amazon Alexa, Google Assistant
Key Features of the Sonoff NSPanel Pro 120:
- 1. Central or Room-Specific Control Controls Wi-Fi-based eWeLink devices via the factory eWeLink cloud. Devices can be grouped into up to three screens, and their states and sensor data can be accessed directly from the panel.
- 2. Manual Scene Activation Supports touch-activated execution of manual eWeLink scenes created in the app. Great for one-touch actions like "I’m home" or "I’m leaving" scenarios.
- 3. Zigbee Gateway Its built-in Zigbee gateway pairs devices either from the panel or via the eWeLink app. Compatible with both eWeLink Zigbee and standard Zigbee 3.0 devices, including Philips Hue and IKEA Zigbee bulbs. Offers three security modes: HOME, AWAY, SLEEP, with customizable triggers and local alarms based on sensor inputs.
- 4. Bluetooth Gateway From firmware version 1.5.6, the panel functions as an eWeLink-Remote (Bluetooth) hub, supporting devices like the Sonoff R5 switch or S-MATE module to control other eWeLink devices via Bluetooth.
- 5. Camera Feed Display Supports viewing live streams from compatible eWeLink cameras, the eWeLink Camera app, RTSP-compatible and DIY (ESP32-CAM) cameras directly on the panel. The panel can function as a video door phone for checking visitors or monitoring rooms and gardens.
- 6. Intercom Feature Enables intercom calls between multiple NSPanel 120 Pro units or between the mobile app and a panel.
- 7. Energy Panel Displays energy usage data from compatible eWeLink devices with consumption tracking.
- 8. Thermostat Function Allows setting up cloud-based thermostat profiles using a temperature sensor (e.g., Sonoff or SmartWise Zigbee thermometer) and a switch/relay. Includes heating and cooling modes with adjustable hysteresis between 1–5°C.
- 9. Web Browser Access Custom web links can be set in the eWeLink app and launched with one touch on the 750x1334 px touchscreen panel.
Smart Features:
- Centralized control of devices and scenes
- Real-time status queries and ON/OFF control
- Weekly energy usage tracking
- Timed control and automation creation
- Security modes (arm/disarm/home)
- Notifications and alerts based on sensor activation
- Real-time video and two-way audio
- Quick website access and display
- Customizable home screen and wallpapers
- Call initiation and reception via built-in mic and speaker
- 7-day weather forecast (city configurable)
- Adjustable volume settings
Specifications:
- Product Category: Premium smart home control panel
- Dimensions: 122.5 × 74.5 × 39.5 mm
- Colors: White (NSPanel120PW) and Anthracite Gray (NSPanel120PB)
- Compatibility: SONOFF and other brands’ Zigbee 3.0 & Matter devices
- UI: Custom home screen, wallpapers, web shortcut access
- Voice Control: Amazon Alexa, Google Assistant
- Display: 4.7" TFT LCD, 750x1334 px, multi-touch, 16.7M colors
- Audio: Built-in mic and speaker, two-way audio
- Light Sensor: Automatic brightness adjustment
- Processor: Quad-core Cortex-A35 CPU
- Graphics: Mali-G31 GPU
- Storage: 8 GB eMMC ROM, 2 GB DDR3 RAM

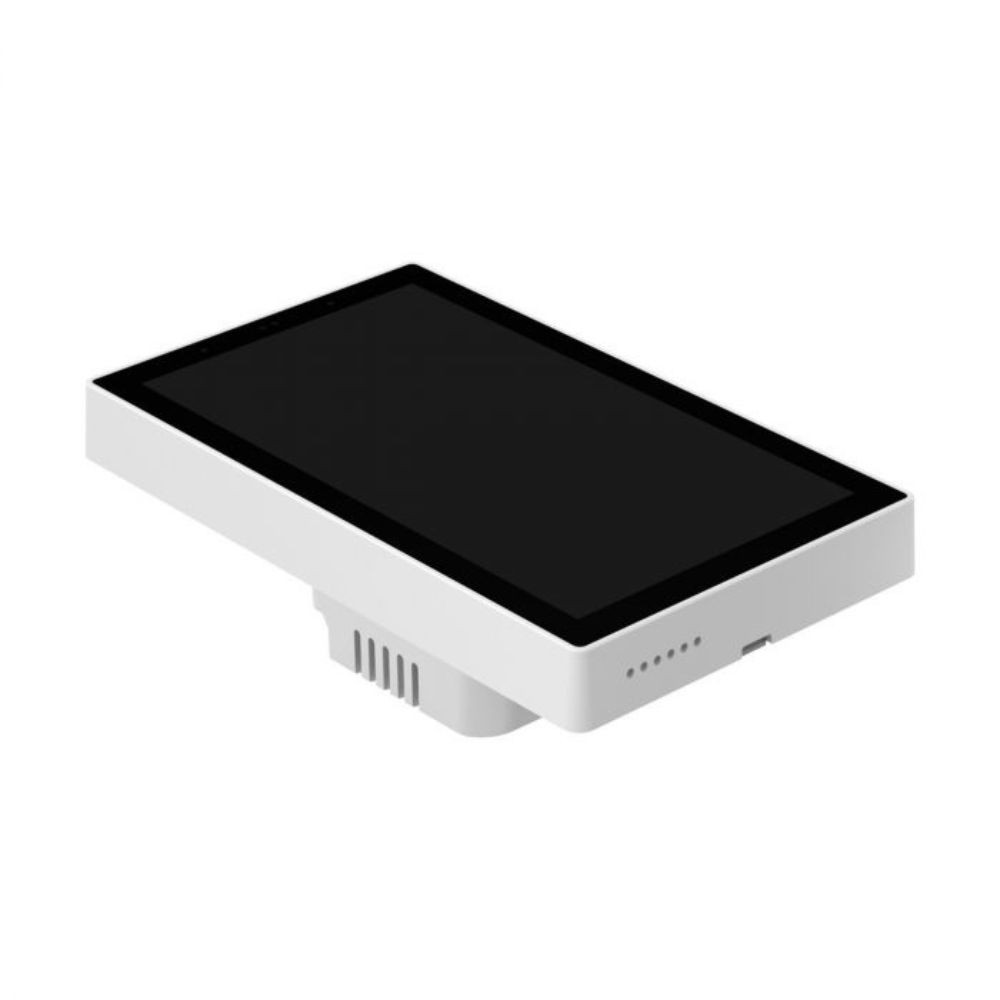

- Installation: Fits wall sockets (requires live + neutral wires) or use with desktop stand
