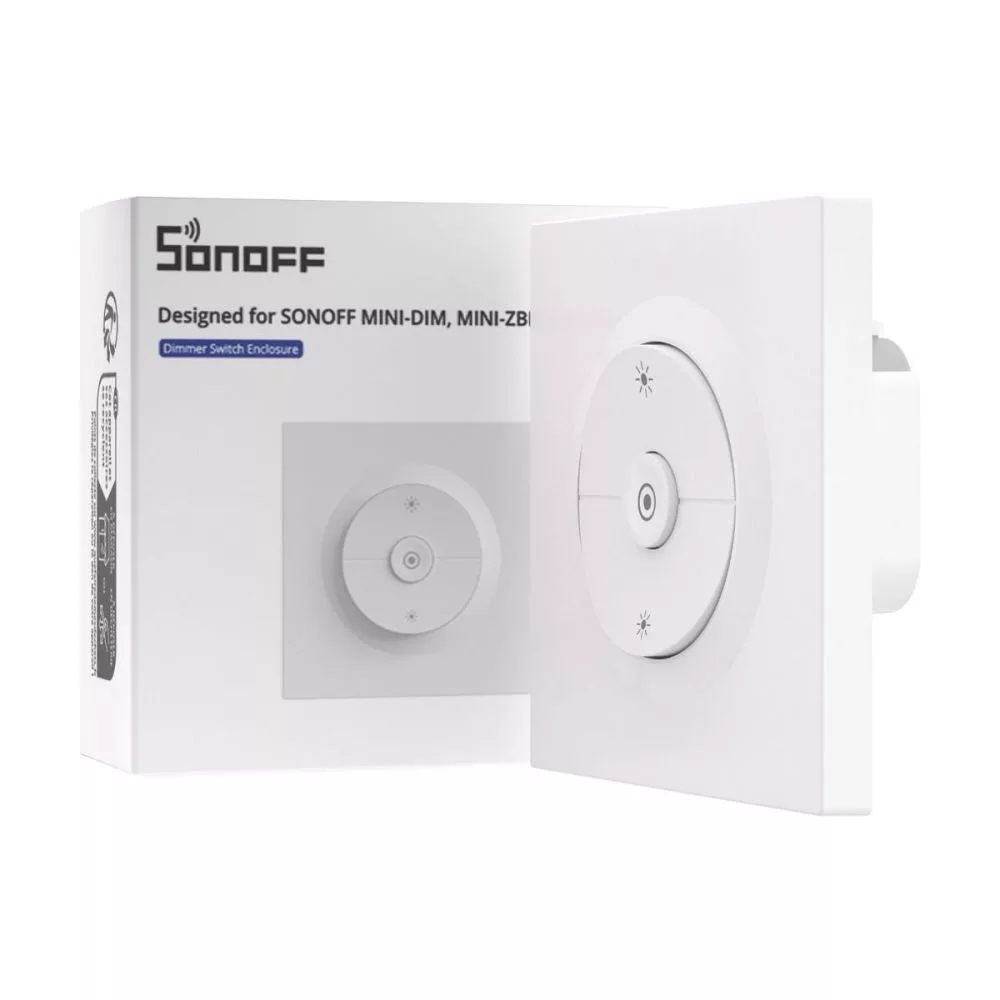

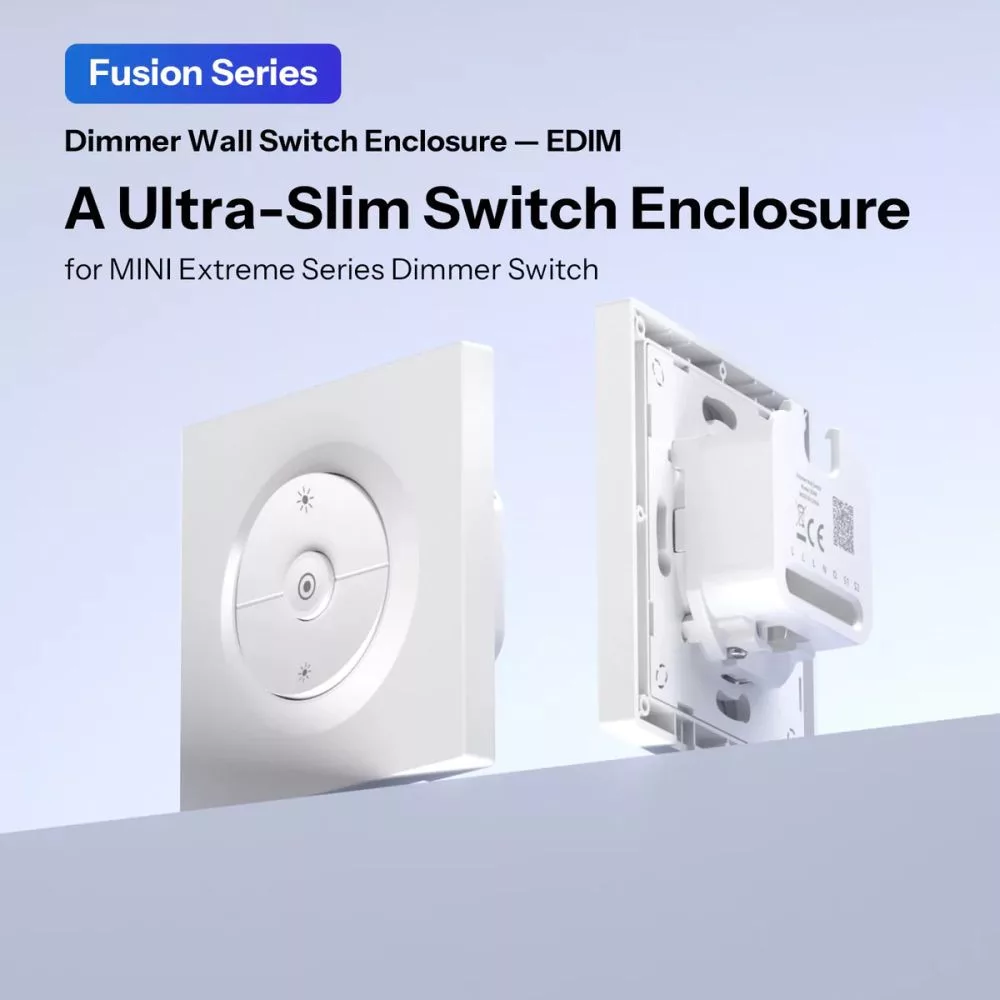

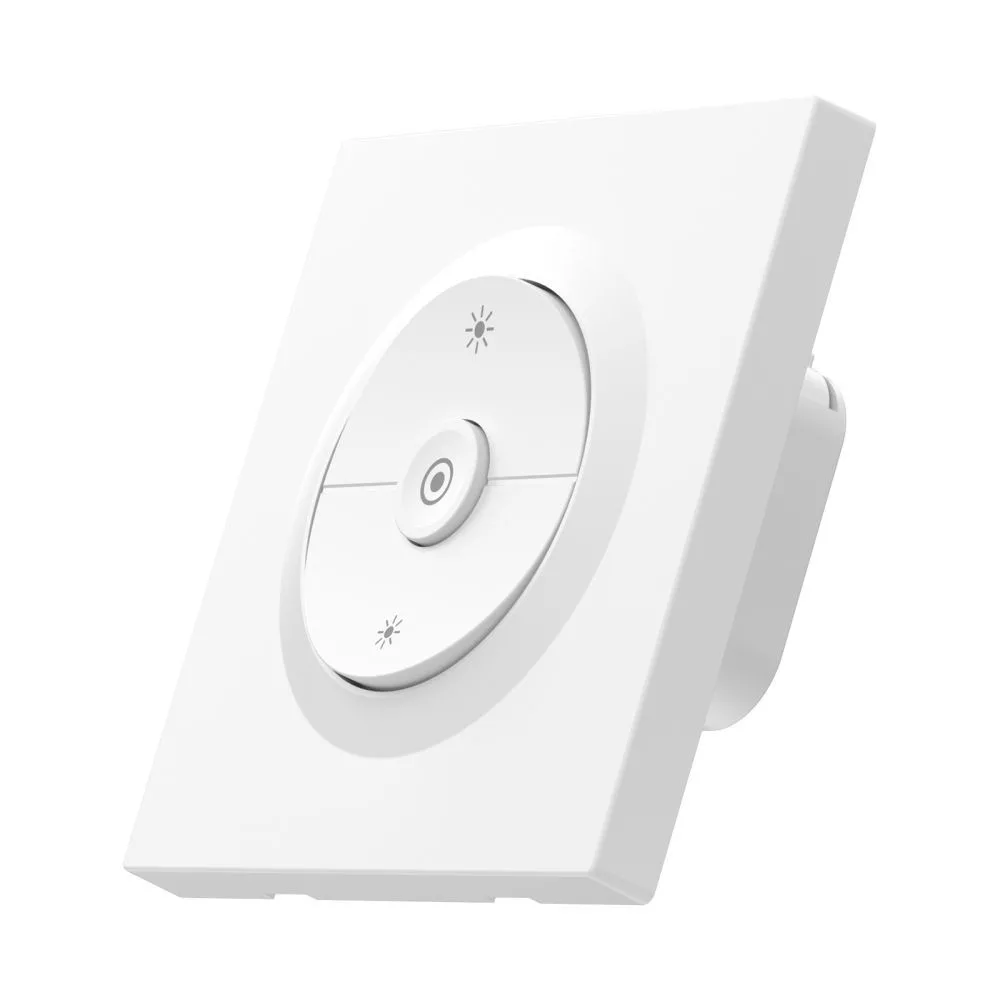

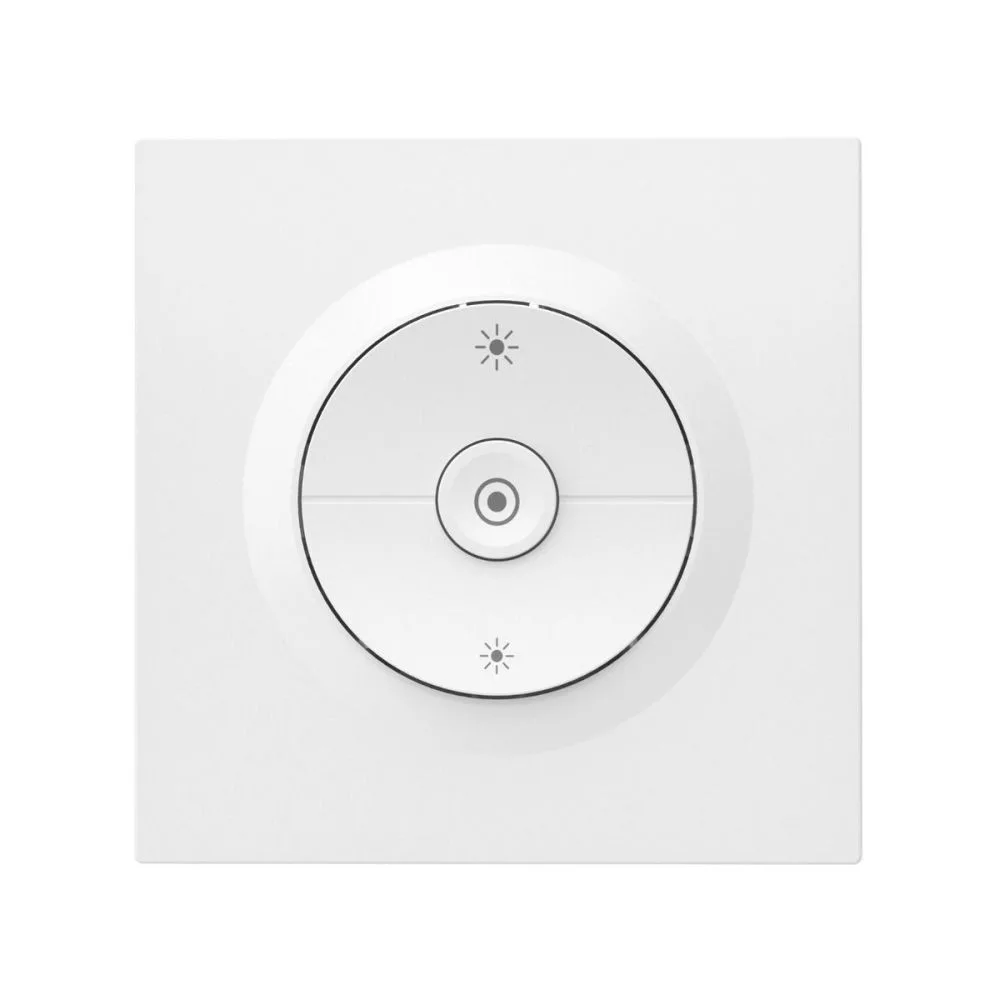

SONOFF Fusion EDIM – Dimmer wall switch, for Sonoff MINI-DIM / MINI-ZBDIM modules

The SONOFF Fusion Series Dimmer Switch Enclosure (EDIM) is a wall-mounted dimmer control switch designed for Sonoff MINI-DIM and MINI-ZBDIM retrofit modules (module not included), available as part of the SONOFF Fusion Series.


All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:
Sonoff
SONOFF Fusion EDIM – Dimmer wall switch, for Sonoff MINI-DIM / MINI-ZBDIM modules
SONOFF Fusion EDIM – Dimmer wall switch, for Sonoff MINI-DIM / MINI-ZBDIM modules
SONOFF Fusion EDIM – Dimmer wall switch, for Sonoff MINI-DIM / MINI-ZBDIM modules
SONOFF Fusion EDIM – Dimmer wall switch, for Sonoff MINI-DIM / MINI-ZBDIM modules
1
4
in stock (20+ pcs)
8.81 €
Details

The SONOFF Fusion Series Dimmer Switch Enclosure (EDIM) is a wall-mounted dimmer control switch designed for Sonoff MINI-DIM and MINI-ZBDIM retrofit modules (module not included), available as part of the SONOFF Fusion Series. When used with Sonoff retrofit modules, it enables brightness control of traditional lighting, integrated into modern, unified wall switch designs. It is an ideal solution for fine-tuning lighting in homes, offices, or other indoor spaces where adjustability and energy efficiency are important.

The dimmer switch is compatible with the Fusion Series frame system, allowing it to be combined with other switches and sockets within a single installation. The device cannot function as a traditional switch (non-smart) on its own, as it does not contain the switching electronics. A compatible module must be purchased separately. With the appropriate retrofit module (Sonoff MINI-DIM or MINI-ZBDIM), users can control brightness manually or via an app, making it an excellent choice for those seeking simple, aesthetic, and functional lighting control.

The product primarily functions as a wall-mounted dimmer switch, compatible with suitable dimming modules. Its compact design allows installation into standard wall boxes, while the Fusion Series design ensures a modern and elegant appearance.


About the SONOFF Brand

SONOFF is one of the most well-known brands in smart home and electrical devices, recognized for its excellent value for money. Its product range includes relays, switches, sensors, and various automation devices with Wi-Fi, Zigbee, and Matter support. The Fusion Series product line provides a unified appearance and compatibility between traditional and smart installations.


Main Product Features

  • Brightness control: Manual adjustment of traditional lighting when used with a compatible dimmer module.
  • Fusion Series compatibility: Modular system, combinable with other Fusion Series switches and sockets.
  • Clean design: Modern and unified look for wall installations.
  • Simple operation: Physical control without the need for an app or network (module dependent).
  • Compact design: Fits into standard wall boxes.


Electrical Features

  • Supply voltage: 100–240 V AC
  • Frequency: 50/60 Hz
  • Load capacity: Defined by the installed dimmer module
  • Output: Regulated: output matching the mains voltage
  • Number of circuits: 1 lighting circuit


Additional Features

  • Application: Indoor lighting control
  • Installation: Flush-mounted (in-wall)
  • Compatibility: Sonoff MINI-DIM and ZBMINI-DIM
  • Product family: SONOFF Fusion Series


Technical Specifications

  • Product name: SONOFF Fusion Series Dimmer Switch Enclosure (EDIM)
  • Type: Conventional dimmer switch enclosure
  • Supply voltage: 100–240 V AC
  • Frequency: 50/60 Hz
  • Installation: Flush-mounted
  • Compatibility: Sonoff MINI-DIM and ZBMINI-DIM
  • Dimensions: 86 × 86 × 34 mm
  • Operating temperature: -10 °C to +40 °C


Data
Colour:
white
Device power supply:
230V AC (L + N)
Operating temperature range:
-10°C - 40°C
Operating humidity range:
0% - 95% RH
IP rating:
IP20
Dimmer feature:
yes
Output circuits / gangs:
1
Rated voltage (output):
230V AC
Rated power (output):
400W
Conductor cross section:
2, 5 mm2
Physical on/off button on device:
yes
External switch supported:
no
Ethernet (RJ-45):
no
Wi-Fi:
no
Zigbee:
no
Thread:
no
Z-Wave:
no
RF transmitter / receiver:
no
Bluetooth:
no
Smartphone app:
eWeLink app
Warranty:
24 months
Warranty type:
standard legal warranty
Size:
34 x 86 x 86 mm
Product category:
wall switch
Size 1 (cm):
3, 4
Size 2 (cm):
8, 6
Size 3 (cm):
8, 6
Weight:
90 g/pcs
