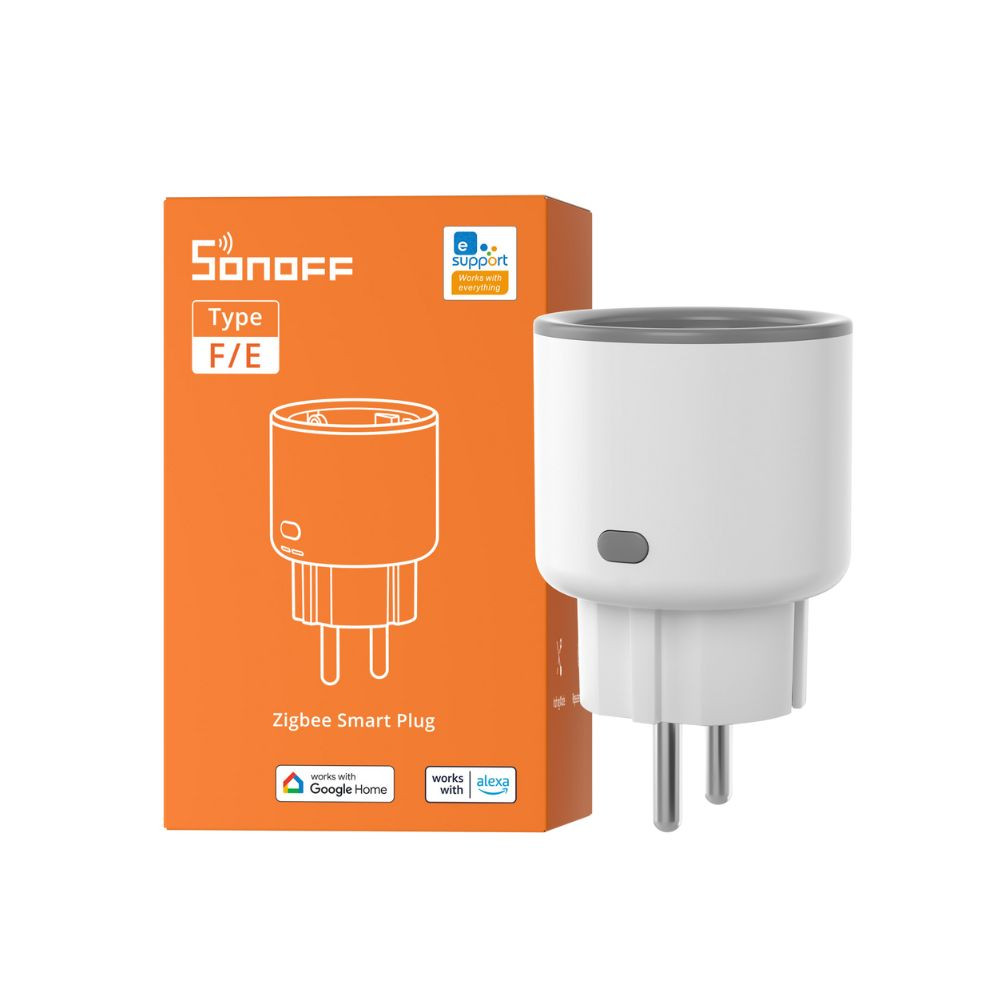

The Sonoff iPlug S60ZBTPF is a compact smart plug using the Zigbee 3.0 protocol, offering real-time energy monitoring, remote control, and automation features. With this device, a standard wall socket can be transformed into a smart outlet in a single step.

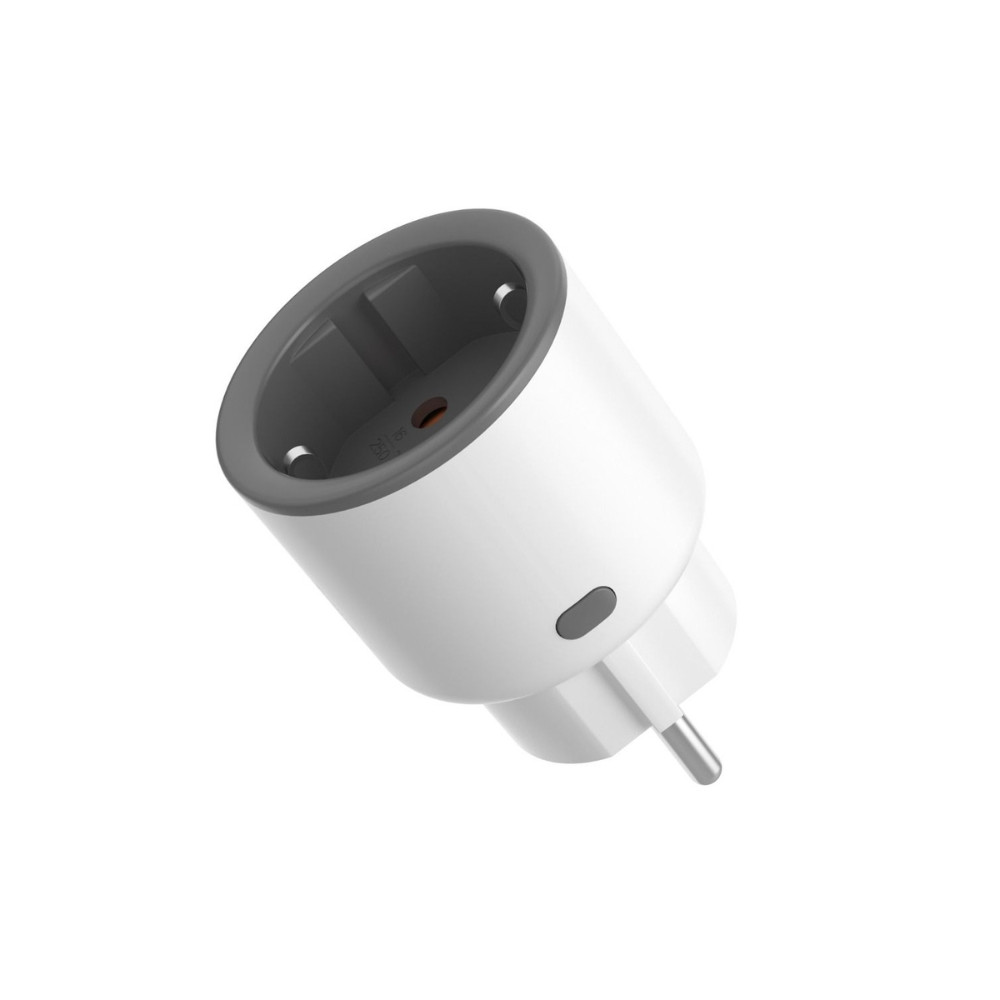

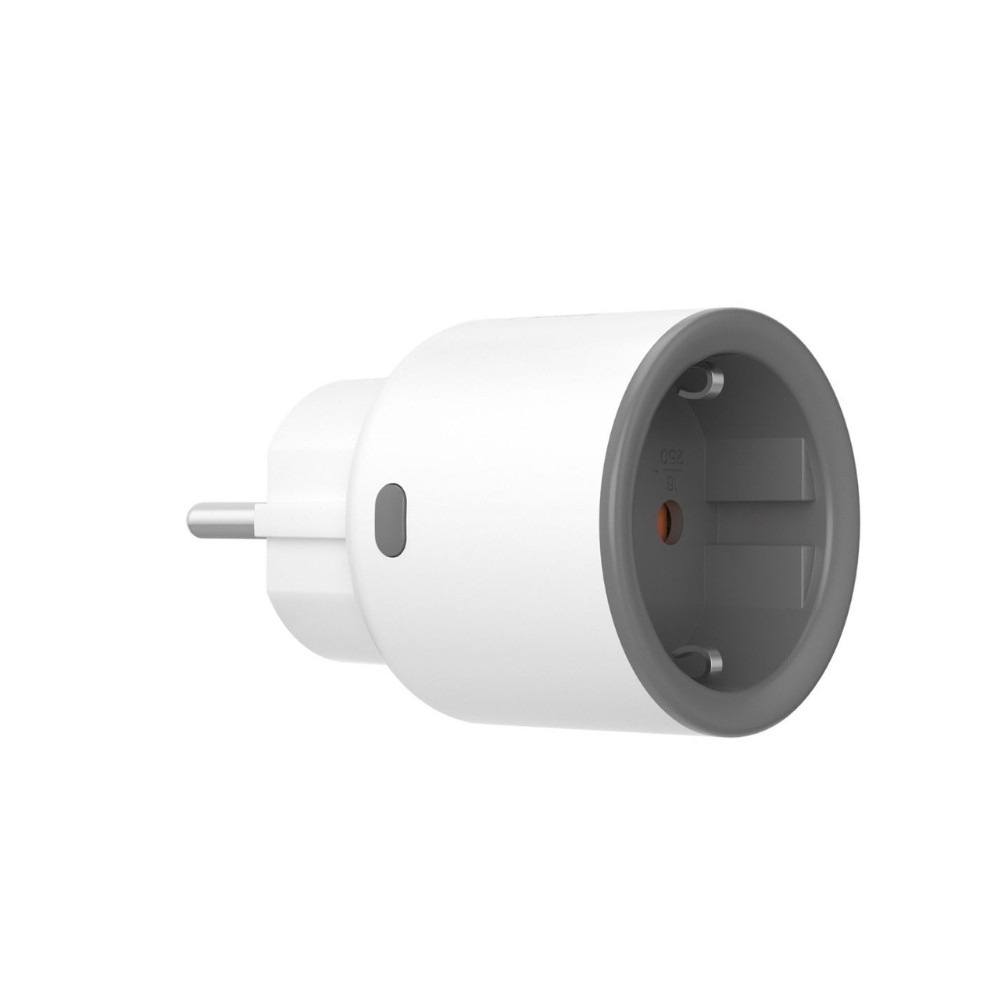

It supports loads up to 16A and 4000W, making it suitable for larger household appliances like washing machines or space heaters. The built-in overload protection automatically turns off the device when consumption exceeds the preset threshold, protecting connected equipment. Its compact size (50x50x61.5 mm) ensures it does not block adjacent sockets, making it ideal for simultaneous use with other devices. The flame-retardant PC V0 plastic housing and built-in safety features ensure secure operation.
The iPlug S60ZBTPF supports schedules, scenes, and automation, and enables voice control via Amazon Alexa and Google Assistant when used with a compatible Zigbee hub. It also functions as a Zigbee router, helping to improve the coverage and stability of your Zigbee network.

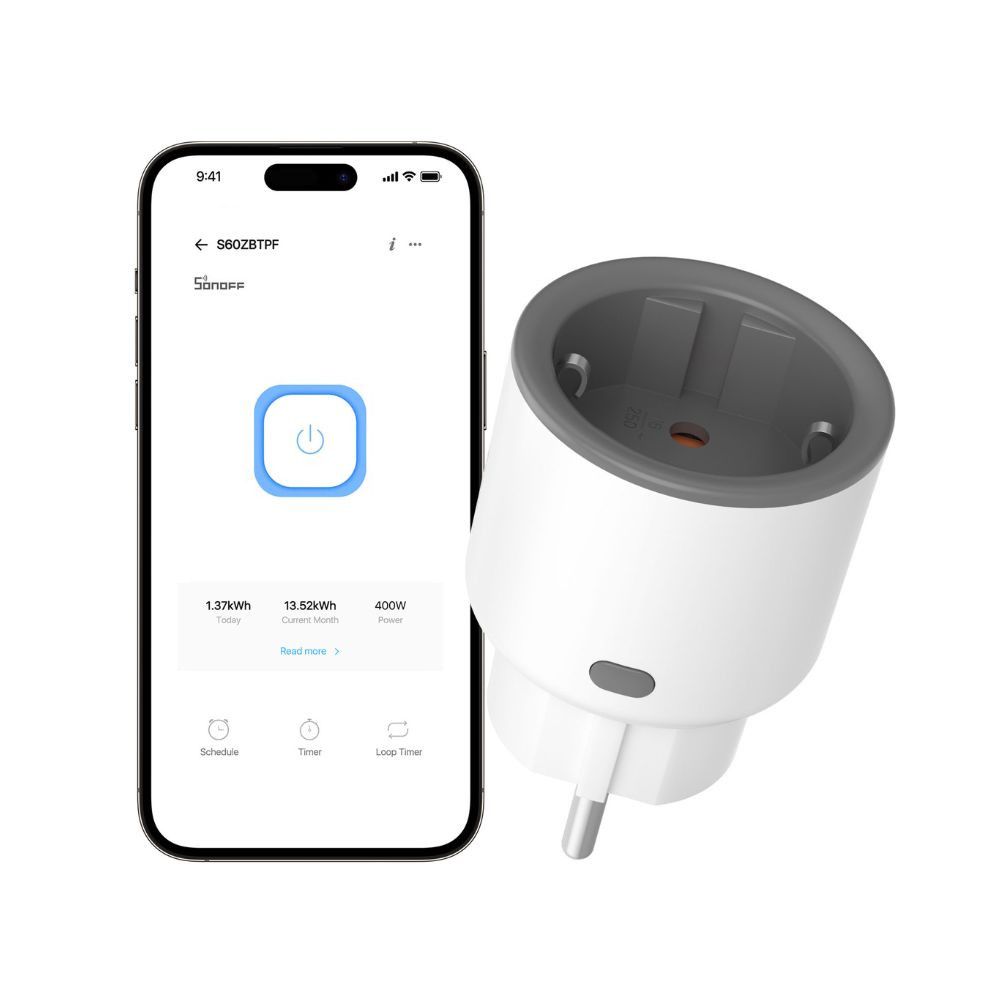

A Zigbee 3.0 gateway is required for smart home integration and remote control. Sonoff offers several eWeLink cloud-compatible options, such as the Sonoff Zigbee Bridge Pro and Zigbee Bridge Ultra. When used with a Sonoff Zigbee gateway, the device can be remotely controlled, scheduled, and automated through the eWeLink app. The energy monitor stores up to 6 months of hourly consumption data in the eWeLink cloud. The consumption history can be viewed as a graph in the app, and data can also be downloaded. The app displays real-time current (A), voltage (V), and power (W), along with daily, previous day, and monthly energy usage (kWh).
Smart control rules can be set in the app, such as: if the real-time power, daily consumption, or current month consumption exceeds a specific value, the plug will execute a command. (For example: if monthly usage exceeds 39.99 kWh, turn off the plug and send a "40 kWh monthly limit reached" notification to your smartphone.)
Of course, the device also includes a physical button for manual switching on/off. Remote access can be shared with family members. It's the perfect solution for smart control and energy monitoring of household appliances and plug-in lamps. With it, you can conveniently turn on your desired devices remotely before arriving home, and schedule shut-off to save energy and reduce costs.
About the Sonoff Brand
Sonoff is a globally recognized brand for high-quality, affordable, and reliable smart home devices. Their product range includes relays, switches, sensors, plugs, and gateways, primarily operating through the eWeLink app, but many are also compatible with Home Assistant, Zigbee2MQTT, and other open-source platforms. Sonoff devices often support voice control (Alexa, Google Assistant), and more of their products now include energy monitoring features.
Key Features
- Real-Time Energy Monitoring: View voltage, current, and total energy usage of connected devices in the app.
- Overload Protection: Automatically switches off the device when usage exceeds the threshold, protecting your appliances.
- Scheduling and Automation: Set timers, countdowns, and automation rules for operation.
- Voice Control: Use voice commands with Amazon Alexa or Google Assistant (via a compatible Zigbee hub).

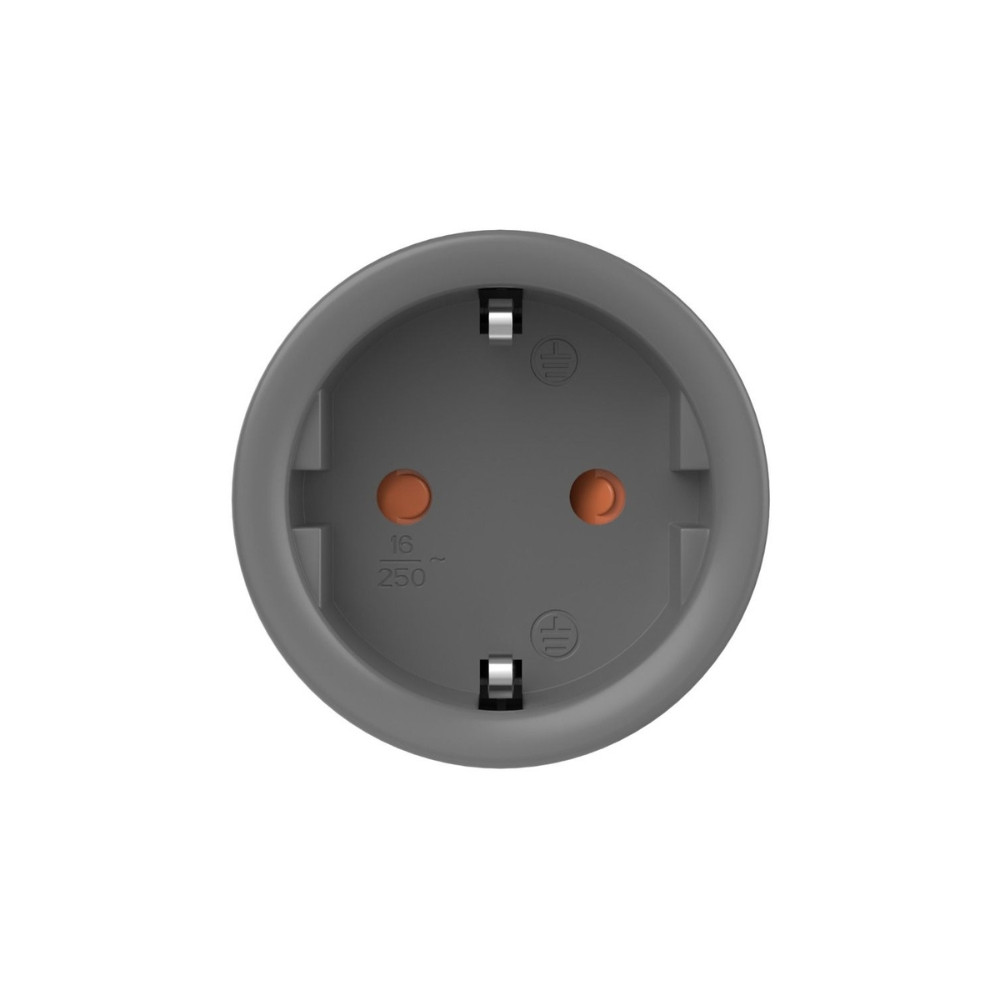

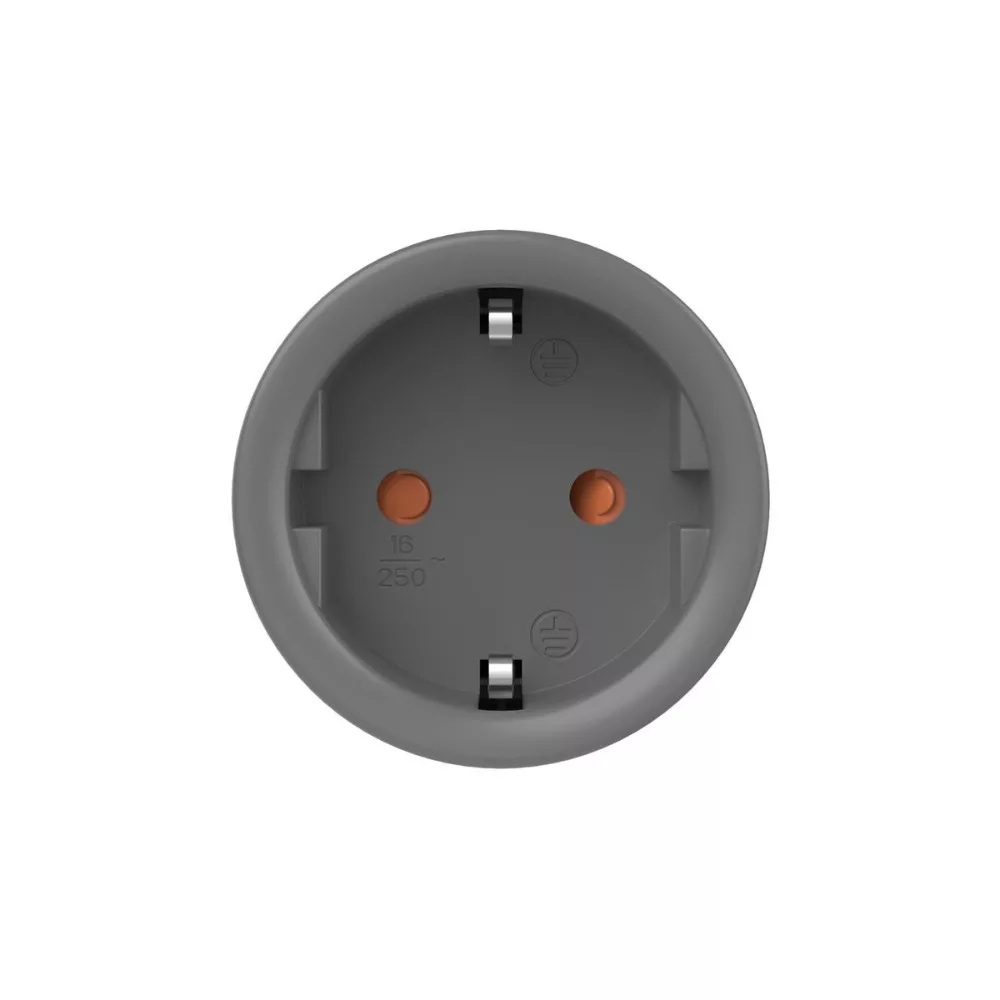

- Compact Design: The S60 series is designed to avoid blocking adjacent sockets.
Smart Home Protocols and Platform Compatibility
- Supported Protocols: Zigbee 3.0
- Router Functionality: Yes, supports up to 64 Zigbee endpoints
- Official Platform: eWeLink app when used with a Sonoff Zigbee gateway
- Cloud Platform Integration: SmartThings, Amazon Alexa, Google Assistant
- Third-Party Platform Compatibility: Home Assistant (ZHA, Zigbee2MQTT), IFTTT (depending on Zigbee Bridge)
- Integration Options: Zigbee2MQTT supported
- Voice Control: Amazon Alexa, Google Assistant
Smart Features
- Remote ON/OFF switching – control your plug-in devices from anywhere.
- Mobile App – Free iOS and Android app: eWeLink
- Status Monitoring – See plug status (on/off) in the app.
- Scheduling – Multiple scheduling options: fixed times, repeated schedules, countdown, cycle.
- Shareable – Grant access to family members for remote control.
- Device Groups – Organize your devices into groups and control them together.
- Scenes / Smart Control – Automate based on temperature, humidity, or other sensor inputs.
- History and Event Log – View daily, monthly, and yearly records.
- Supports both cloud and local operation.
Electrical Features
- Max Current: 16A
- Max Power: 4000W
- Local Switching: Manual physical button
- Timer Relay: Auto-on / Auto-off function (inching mode)
- Energy Monitoring: Displays daily, previous day, and monthly consumption in the app
- Live Electrical Data: Real-time current (A), voltage (V), and power (W) display
- Operation within Set Electrical Parameters: Automatically shuts off when preset min./max. values are exceeded
- Consumption Statistics: Daily and monthly usage statistics with hourly data for up to 6 months
- Notifications: Push alerts for exceeding defined power or consumption limits
- Partial Surge Protection: Protection from secondary effects of lightning strikes
- Short Circuit Protection: Internal fuse trips if internal components are damaged
- High Relay Endurance: 40,000 switching cycles
- Child Safety: Prevents children from inserting objects or fingers into the plug
Other Specifications
- Housing: Flame-retardant PC plastic (V0 flammability rating)
- Relay Lifespan: Approx. 40,000 switching cycles
- Certifications: CE, FCC, RoHS
- Operating Temperature: -10°C – +40°C
- Operating Humidity: 10%–90% RH, non-condensing
