Gledepto's Zigbee Pro series has innovative, high quality products, supporting smart app control through Zigbee connection, local remote control with 2.4GHz RF remote controllers, and voice control by Alexa and Google Home (depending on the gateway).
They are compatible with all major Zigbee gateways and platforms: compatible with Sonoff ZBBridge and other eWeLink Zigbee gateways, work with Tuya/SmartLife Zigbee gateways, also compatible with SmartThings gateway, homee, ConBee II, Hubitat Elevation, Philips Hue gateway, Amazon Alexa devices with built-in Zigbee gateway, and also work with the Terncy (Apple Home compatible) gateway.
Also, the Pro products can be controlled with Gledopto's 2,4GHz remote controllers and wireless wall panels, so local remote control is also supported.

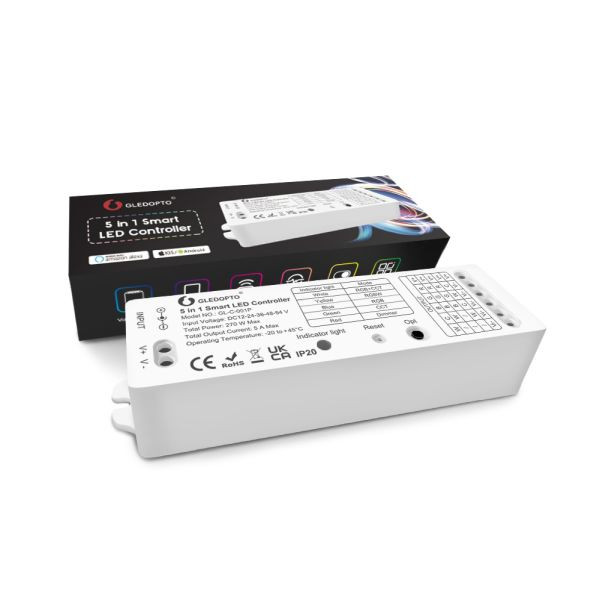

Gledopto Zigbee Pro 5 in 1 LED Controller (Zigbee+RF) (GL-C-001P) is one the most advanced of Gledopto's Pro flagship products, which supports 5 working modes and can be practically installed for any of these use cases:
- in RGB+CCT and RGBCCT mode: supports RGB color lights + warm / cold white color lights;
- in RGBW mode: can control RGBW LED strips for RGB color lights + warm / cold white color lights;
- in RGB mode: can control RGB LED strips for color and white light;
- in CCT mode: can manage warm / cold white light and light intensity; or any dual-color LED strips; (max. 2 pcs. LED strips can be controlled)
- in Dimmer mode: can control light intensity (dimmer) for single-color LED strips, (max. 5 pcs. LED strips can be controlled)
You can chose the required mode of operation very easily by pushing OPT button on the device before pairing it with the Zigbee gateway.
Also, the DC power supply may have either DC 12V, or DC 24V, or DC 36V, or DC 48V or even DC 54V, so this 5-in-1 Zigbee Pro LED controller can be practically used to control LED strips with almost any voltage and any type.
As one of the most advanced product on the market, Gledopto 5-in-1 Zigbee Pro LED controller also supports PWM (pulse-width modulation) frequency settings. It makes it possible to set a frequency to best match the power supply to avoid or reduce its noise, and also to set the frequency to avoid disturbing flickering of the LED light. You may use a physical button on the device to set 600 Hz -> 800 Hz -> 1000 Hz -> 2000 Hz -> 4000 Hz -> 8000 Hz. The standard setting is 1000 Hz.
Optionally, you may also set a default power-on mode on the device with the help of the physical button: after power-on the LED should be ON or should be OFF,
The controller is compatible with most ZigBee ZLL and ZigBee 3.0 gateways. It was tested with Philips Hue®, Osram Lighify®, Amazon Echo Plus, Sonoff eWeLink Zigbee gateways and Tuya Zigbee gateways.
Maximum load on output:
- in case of 12V voltage: 10A
- in case of 24V voltage: 10A
- in case of 36V voltage: 7,5A
- in case of 48V voltage: 5,6A
- in case of 54V voltage: 5A
Features (depending on the operation mode and the controlled LEDs):
- Set colors (in RGBCCT, RGBW and RGB modes): 16 million colors supported
- Set brightness level: dimmer features
- Set color temperature (in all but dimmer mode): for white light: cold or warm white color): 2000K to 6500K
- Smart phone app control - depending on your Zigbee gateway
- Voice control - via Google Assistant or Alexa - depending on your Zigbee gateway
- 2.4GHz RF remote controller or RF wall panel compatible (sold separately), no Zigbee Hub needed for RF remote control
- Easy mounting - by double side adhesive or by screw
- Total output:
- 12V: total max. 10A,
- 24V: total max. 10A
- 36V: total max. 7.5A
- 48V: total max. 5.6A
- 54V: total max. 5A
- Various DC power adapters and LED strips supported: DC 12V / DC 24V / DC 36V / DC 48V / DC 54V
- 5 mode of operations supported: RGB+CCT / RGBCCT, RGBW, RGB, CCT, Dimmer
- Easy integration with Zigbee wireless communications protocol
- Compatible with high number of gateways: Sonoff / eWeLink Zigbee gateways, Tuya/SmartLife Zigbee gateways, Philips Hue bridge, SmartThings / Aeotec gateway, homee, ConBee II, Hubitat Elevation, Amazon Zigbee gateways, Terncy (Apple Home compatible) gateway.
Note: some modes may not work with some gateways (e.g. RGB mode not compatible with eWeLink gateway) - Zigbee mesh support: yes
