SONOFF Smart Stackable Power Meter (SPM) MAIN unit

Sonoff’s Smart Stackable Power Meter (SPM) is a professional category, DIN-rail compatible, stackable relay with power meter and overload protection, with up to 20A per channel max. capacity. It can save consumption to a memory card (not an accessory).

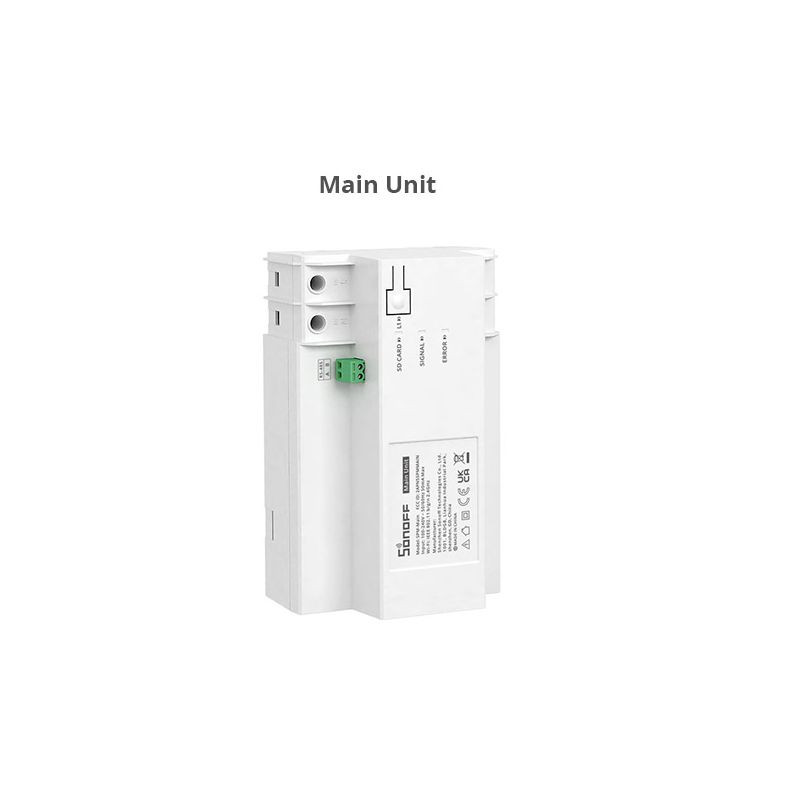

This is SPM’s main unit, with Ethernet and LAN support, SPM stackable 4-channel relays are not part of the product, they are sold separately.


All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:
Sonoff
Factory SKU ID:
SPM-Main
Supported protocols:
Ethernet / LAN, Wi-Fi
in stock (29 pcs)
28.92
Details

【Connect up to 32 pcs. of SPM-4Relays】One SPM-Main unit can be connected to 32 SPM-4Relays. Each SPM-4Relay has 4 isolated channels to help you manage devices more conveniently.
【Power metering】You can monitor the power consumption by checking eWeLink App on your mobile phone. Obtaining current, voltage and power easily.
【Max. 20A/Gang】Each channel can support maximum current of 20A, no fear of high power load.
【Communicated by RS-485】The SPM-Main communicates with the SPM-4Relays through RS-485, which allows for multi-terminal and stable long-distance data transmission.
【Overload Protection】Once the overload protection is enabled, it can protect your devices from burning out.



SONOFF Smart Stackable Power Meter consists of

(1) a main unit with built-in Wi-Fi chip and support for eWeLink IoT cloud and eWeLink app, and

(2) one or multiple SONOFF Smart Stackable Power Meter 4-Relays.



THIS PRODUCT IS THE MAIN UNIT. SPM 4-RELAY units are sold separately.



They all fit onto DIN rail of an electric cabinet, and provide smart control and power metering feature with max. performance of 20A per gang, as well as, overload protection for all gangs. It is a high performance professional smart home tool to manage homes, office buildings, industrial buildings or even shopping malls to keep track of residents or tenants power consumption.





The SPM Main unit communicates with the eWeLink cloud through Ethernet or Wi-Fi, and communicates with the SPM-4relay modules via RS-485, which allows multi-terminal and stanle long term data transmission. One main unit can work with up to 32 pcs. of 4-relay units, so has a total support of 128 x 20A channel management and power metering.

The device has an SD card slot, you may insert an SDHC memory card (not included with the product) to store up to 180 days consumption data and check the data via HTTP API. Data can also be exported.




Sonoff SPM Wiring:





Product features:

  • Remote ON / OFF – Anytime, anywhere, from now on you can turn all your channels on and off remotely.
  • Possibility to add up to 32 pcs. of 4-channel power metering relays to the main channel, total support for up to 128 independent channels
  • Fits to DIN-rail
  • SD card support: supports adding a 8GB-32GB SDHC memory card to store up to 180 days consumption data
  • Controling the channels independently
  • Physical on/off buttons on the 4-relay devices
  • Overload protection for all channels
  • Mobil App – free iOS és Android mobil App: eWeLink, connecting to eWeLink IoT cloud
  • Sync status – Check actual relay status (turned ON or OFF) with the mobile App
  • Share control – Control the device together with your family





Info
Product type:
MAIN UNIT of professional, high performance control and power metering unit
Colour:
white
Device power supply:
100V-240V AC
Wiring:
230V AC (live and neutral)
DIN rail compatible:
yes
Embedded relay:
no
Dimmer feature:
no
Physical on/off button on device:
no
External switch supported:
no
2-way or 3-way switching:
no
Wi-Fi:
yes
Wi-Fi standards:
802.11 b/g/n (2.4GHz)
Zigbee:
no
RF transmitter / receiver:
no
Bluetooth:
Bluetooth pairing with phone
Controllable from internet:
yes
Manufacturer smartphone app:
yes, free app: eWeLink (Android, iOS)
Voice control:
no
Cloud mode:
default mode is connecting to the eWeLink cloud
LAN mode:
yes, if the connection with the eWeLink cloud is disconnected, limited features
REST API support:
yes
MQTT support:
no
History:
up to 180 days power metering history stored on memory card (sold separately)
Weight:
260 g/pcs
