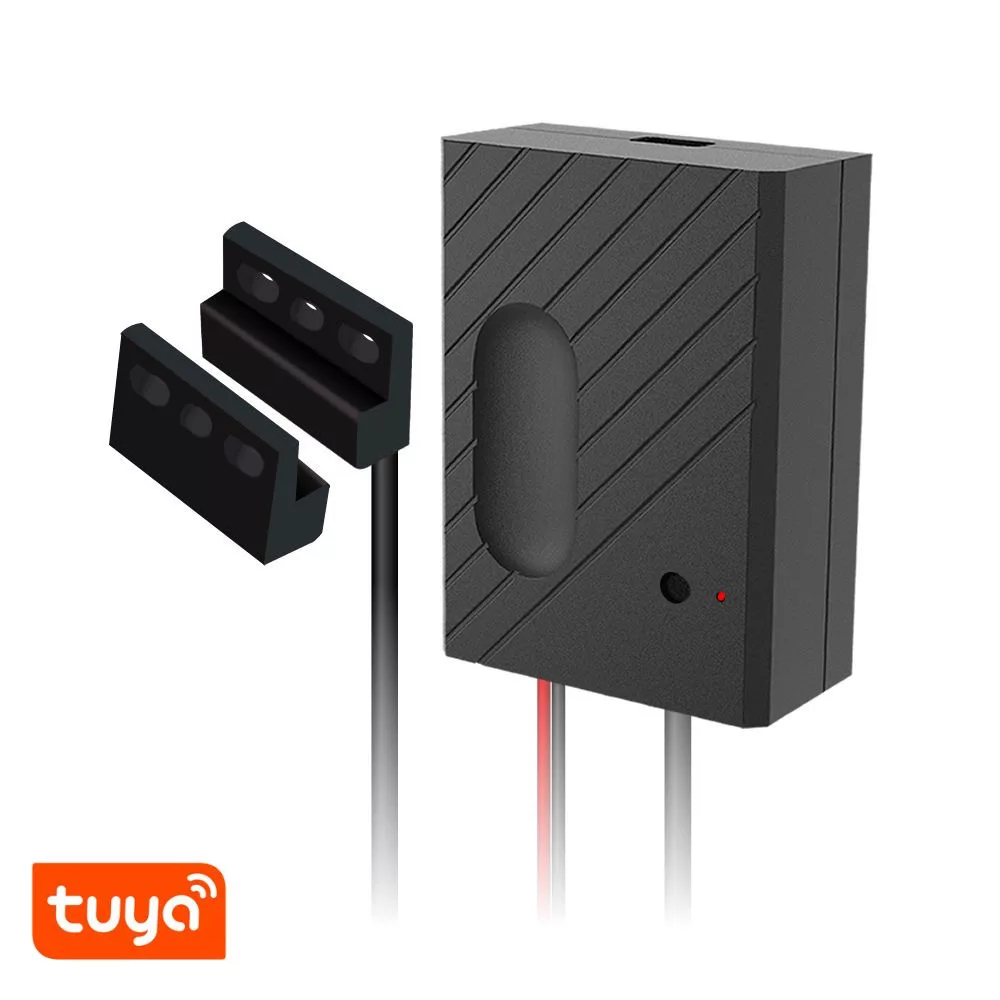

The TuyaSmart Garage Door Controller Kit makes motorized, RF remote-controlled, or wall switch-controlled garage doors smart, allowing them to be remotely controlled, automated, and monitored from a mobile phone via the internet.
The TuyaSmart system is compatible with most garage door and garden gate opener motors where opening and closing can be started from a shared button using dry contact switching, meaning by closing a voltage-free circuit from a wall switch or remote control.
Compared with standard Wi-Fi relays, its main advantage is that it includes a waterproof status sensor. This means you can not only send open and close commands from the Tuya / Smart Life app, but also see the current open or closed state of the garage door or garden gate in the app.
The status sensor has a 5-meter cable and is waterproof, so it can also be installed on an outdoor gate. The controller itself, however, must be installed in a protected location, as it is not waterproof.
The TuyaSmart garage door opener is compatible with Tuya systems and can be controlled through the Tuya / Smart Life app. It also supports Google Home, Amazon Alexa voice control, and IFTTT integration.

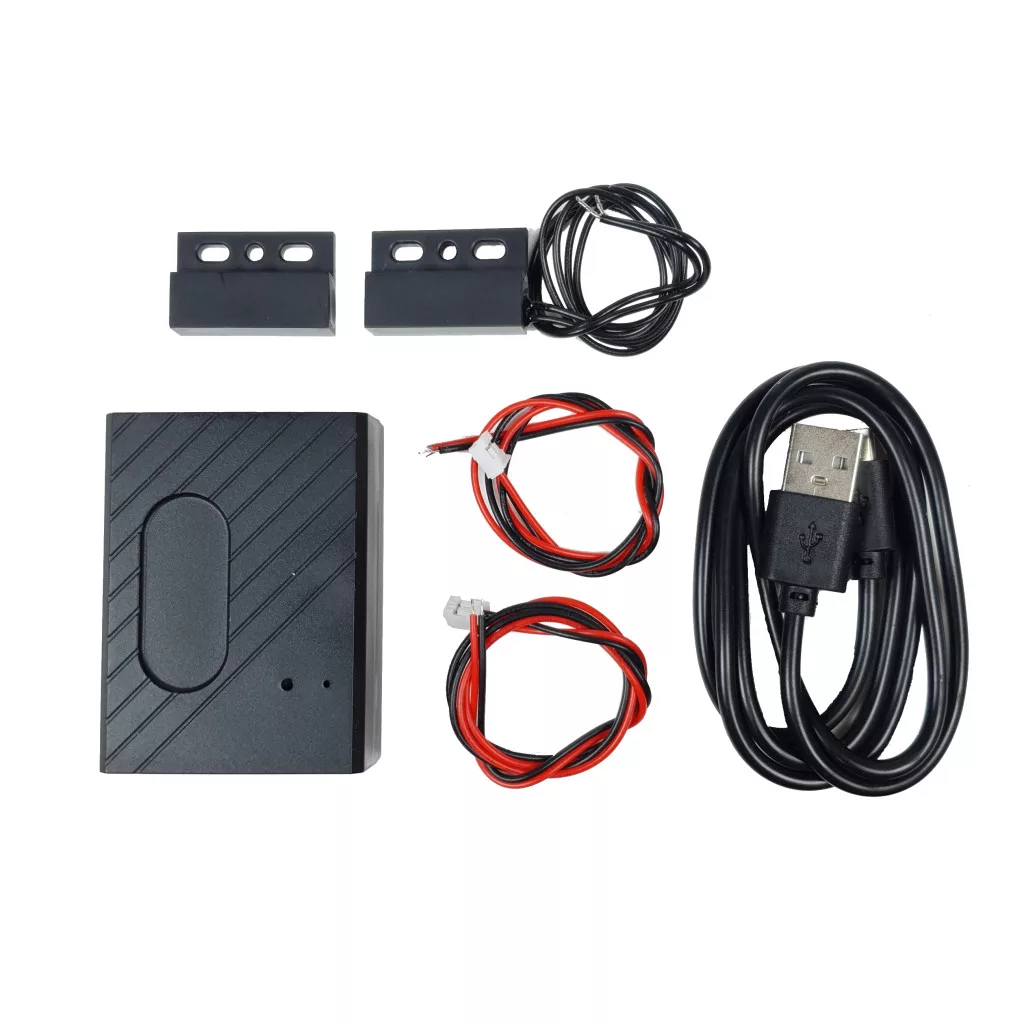

Package Contents

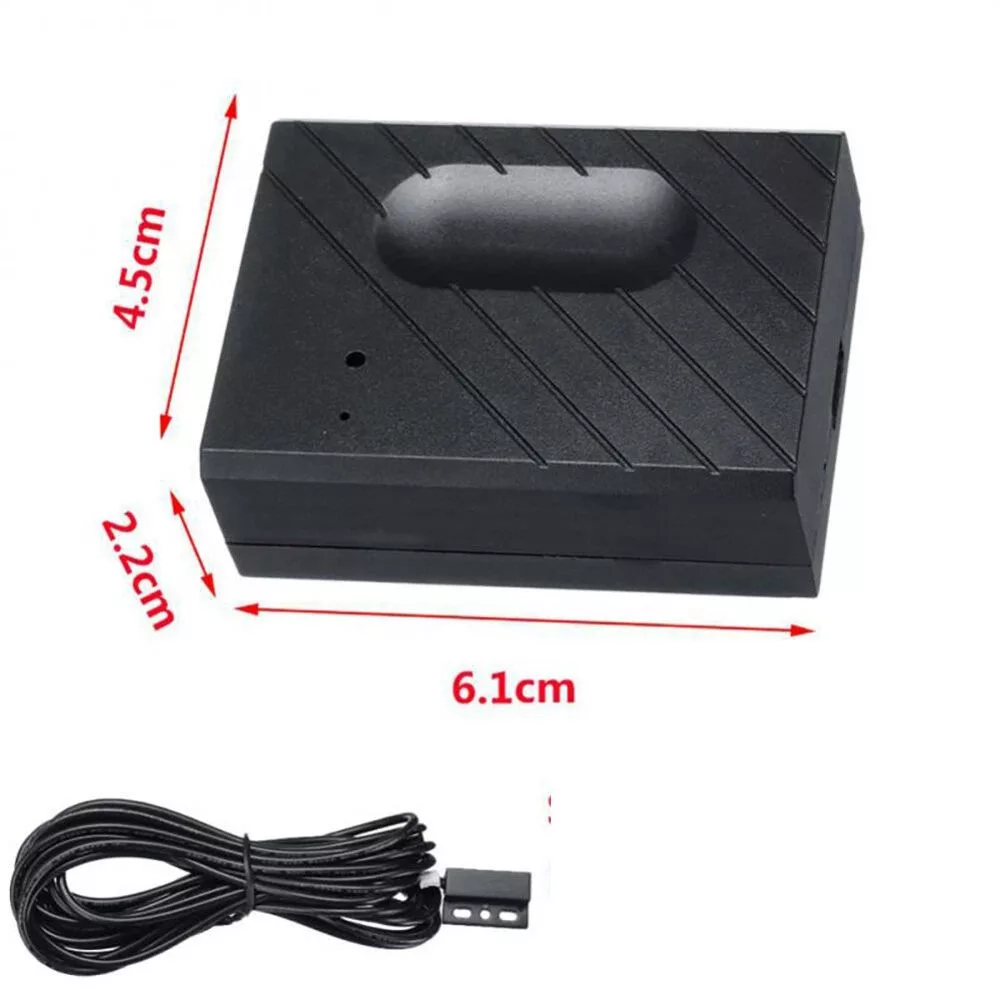

- Tuya / Smart Life app-compatible Wi-Fi relay switch for starting garage door or gate opening and closing with dry contact pulse switching
- Magnetic garage door status sensor for checking open or closed status in the mobile app
- Screws and mounting accessories required for installing the sensor
The kit does not include the standard 5V / 1A USB power adapter required for the Wi-Fi controller. It also does not include a wall switch, remote control, or gate opener motor.
Using the free Tuya / Smart Life app on an iOS or Android smartphone with internet access, you can remotely control your smart garage door or garden gate opener motor and set scheduled opening or closing. Remote access through the app can also be shared with family members.
Status Sensor Operation
The status sensor feedback is displayed in the Tuya / Smart Life app as the relay status. When controlled from the app, the relay sends a short contact pulse to the gate motor to start opening or closing. The app shows the opening and closing process with a moving animation and displays the corresponding status feedback.
The ALERT function available in the Tuya / Smart Life app can send standard iOS / Android push notifications to the phone for every status change. This means the owner can receive notifications both when the door opens and when it closes.
Since the device status in the Tuya / Smart Life app is provided by the open / closed status sensor, opening and closing the garage door or garden gate with the original RF remote control is also reflected in the app, and notifications can be sent about these events as well.
The controller is compatible with Amazon Alexa and Google Assistant voice control and can be integrated with IFTTT. This allows automations such as opening the garage door automatically when your phone arrives within a defined distance, for example within 100 meters of your home.
Alternative Solutions Without Status Sensor
- SmartWise 5V–32V 1-gang relay: Suitable for similar control, but without a status sensor
- SmartWise 5V–32V 2-gang relay: Recommended if your remote control has two buttons, with separate buttons for opening and closing the gate
Key Features
- Waterproof status sensor can be installed outdoors and is also suitable for gate opener monitoring
- Compatible with most garage door motors where opening and closing are controlled by the same remote button or wall switch using dry contact switching
- Hungarian-language mobile app: Free iOS and Android Tuya / Smart Life app
- Status query: The current garage door status is visible in the mobile app, open or closed
- Remote ON/OFF control: Open or close your garage door or garden gate remotely from anywhere
- Scheduling: Set one-time or recurring schedules, for example to close the gate every evening at 8 PM
- Shared control: Remote access can be shared with family members or other users
- Groups and rooms: TuyaSmart devices can be organized into groups and rooms in the Tuya / Smart Life app
- Smart Scene control: Create conditional automations between different Tuya and TuyaSmart devices
- Voice control compatibility: Can be connected to Amazon Alexa, Google Assistant, and Google Nest
Smart Home Integration and Compatibility
- Tuya Smart: Full remote control and configuration support
- Smart Life: Full remote control and configuration support
- Wi-Fi: Connects directly to the home Wi-Fi network
- Amazon Alexa: Voice control supported
- Google Assistant: Voice control supported
- Google Nest: Supported through Google Home integration
- IFTTT: Automation integration supported
- Dry contact gate motors: Compatible with most garage door and garden gate motors using voltage-free contact control
