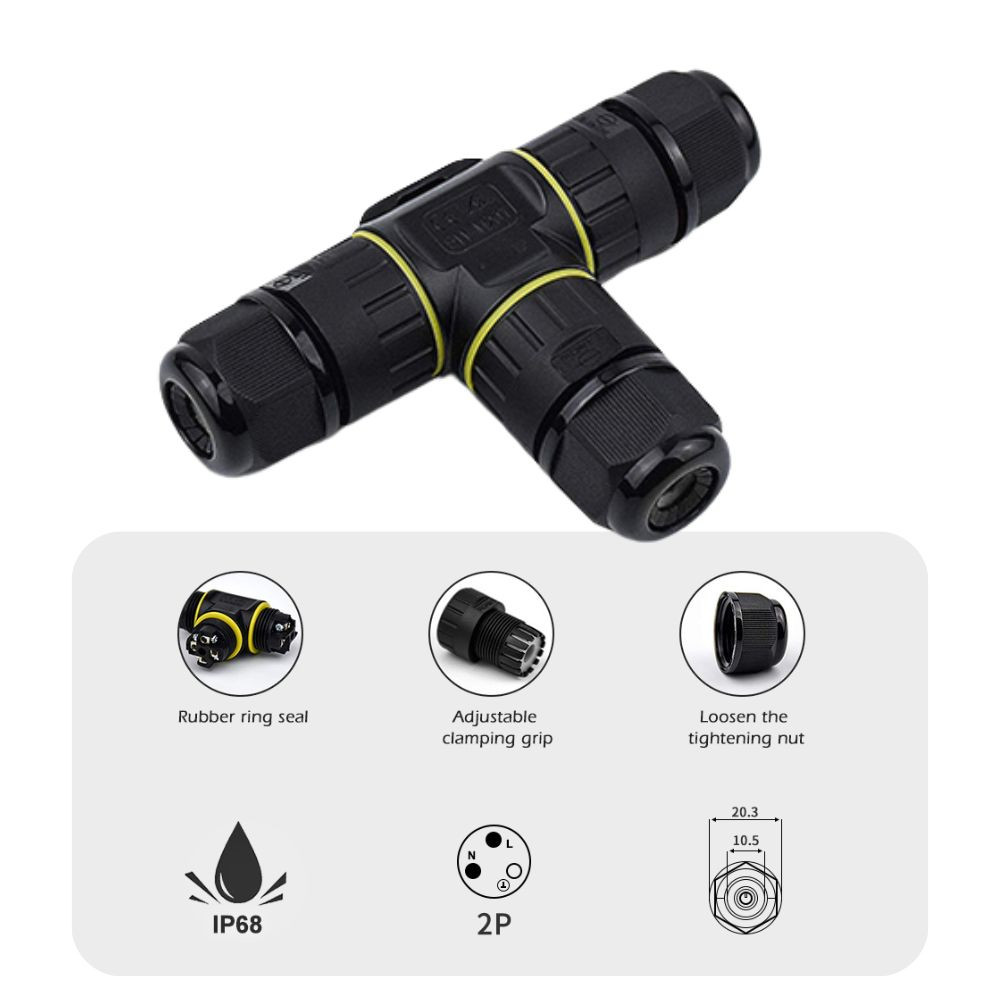

EW-M20T waterproof IP68 wire T-Connector - for 3 x 2 wires
The EW-M20T is a robust T-shaped waterproof wire connector (for 3 wires) with IP68 protection, designed primarily for outdoor and industrial applications. It is the ideal solution for LED lighting systems, automation devices, and other electrical equipment where reliable, waterproof three-way cable connections are required.
- IP68 protection – dustproof and waterproof design
- Available with 2, 3 or 4 poles
- Contacts made of copper alloy with nickel plating
- Housing material: PA66 plastic (UL94 V-0 flame retardant)
- Rated voltage: 400 V
- Rated current: 24 A
- Compatible wire cross-section: 0.5–2.5 mm²
- Cable outer diameter: 5–9 mm or 9–12 mm
- Operating temperature range: –40 °C to +105 °C
- Screw terminal connection – safe and re-connectable wiring
