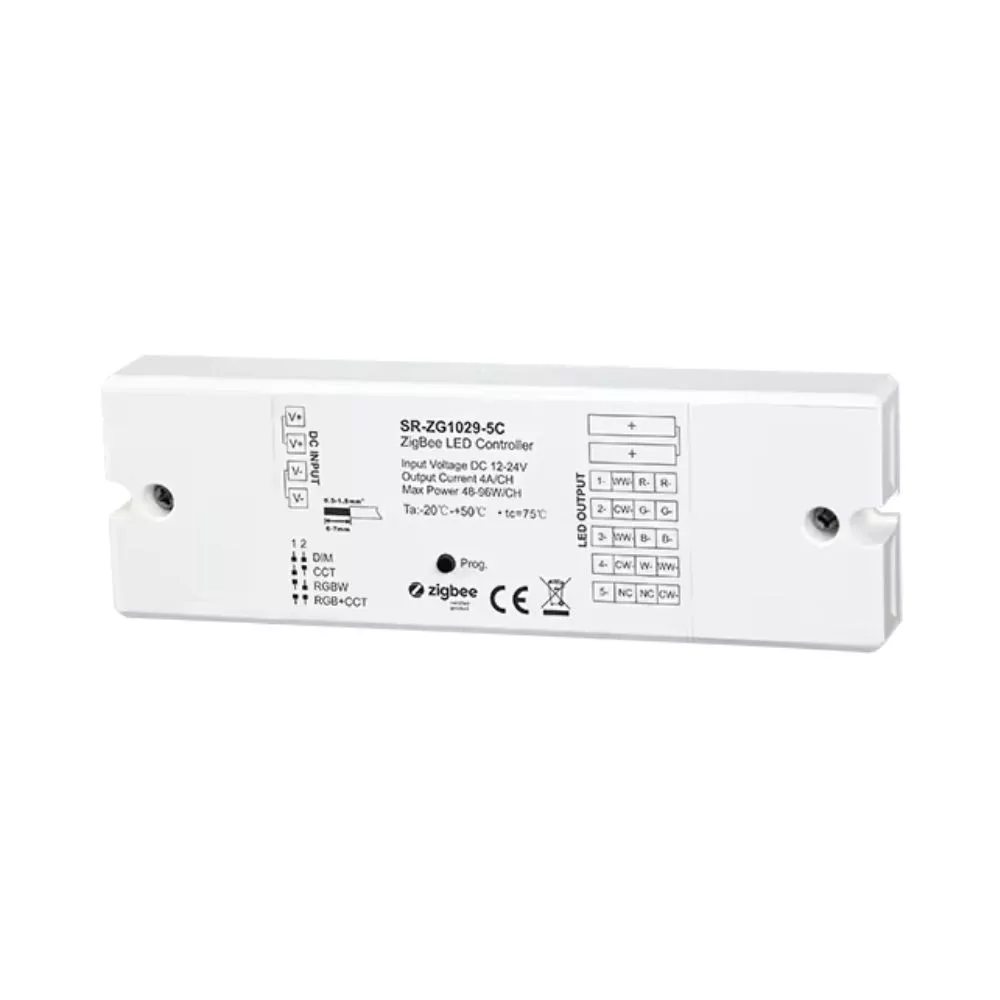

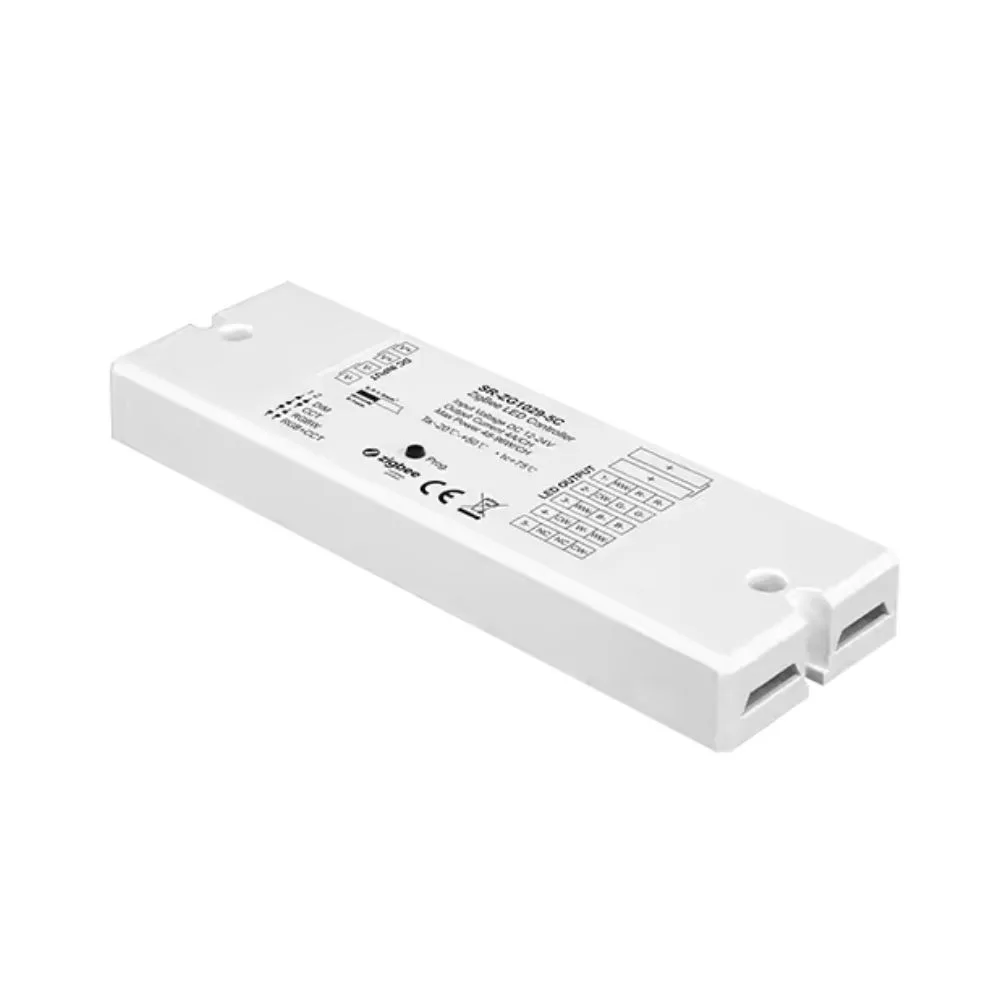

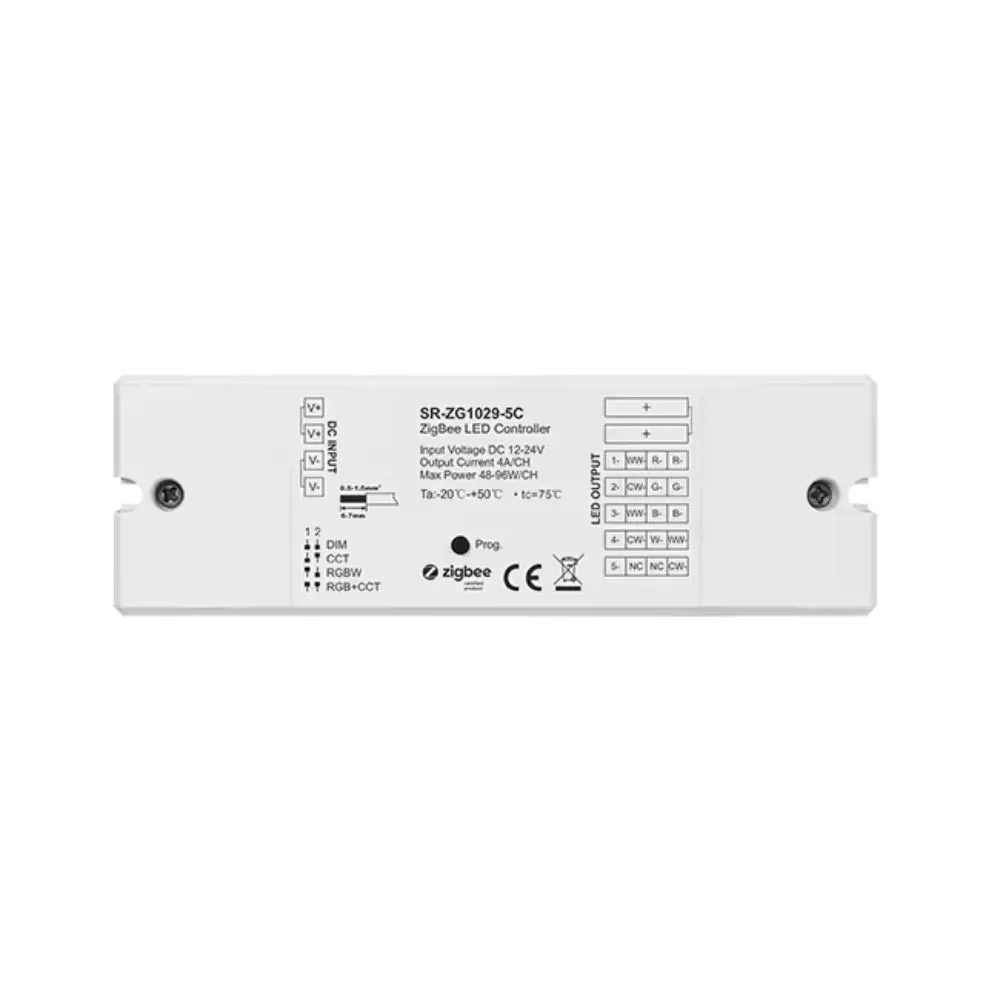

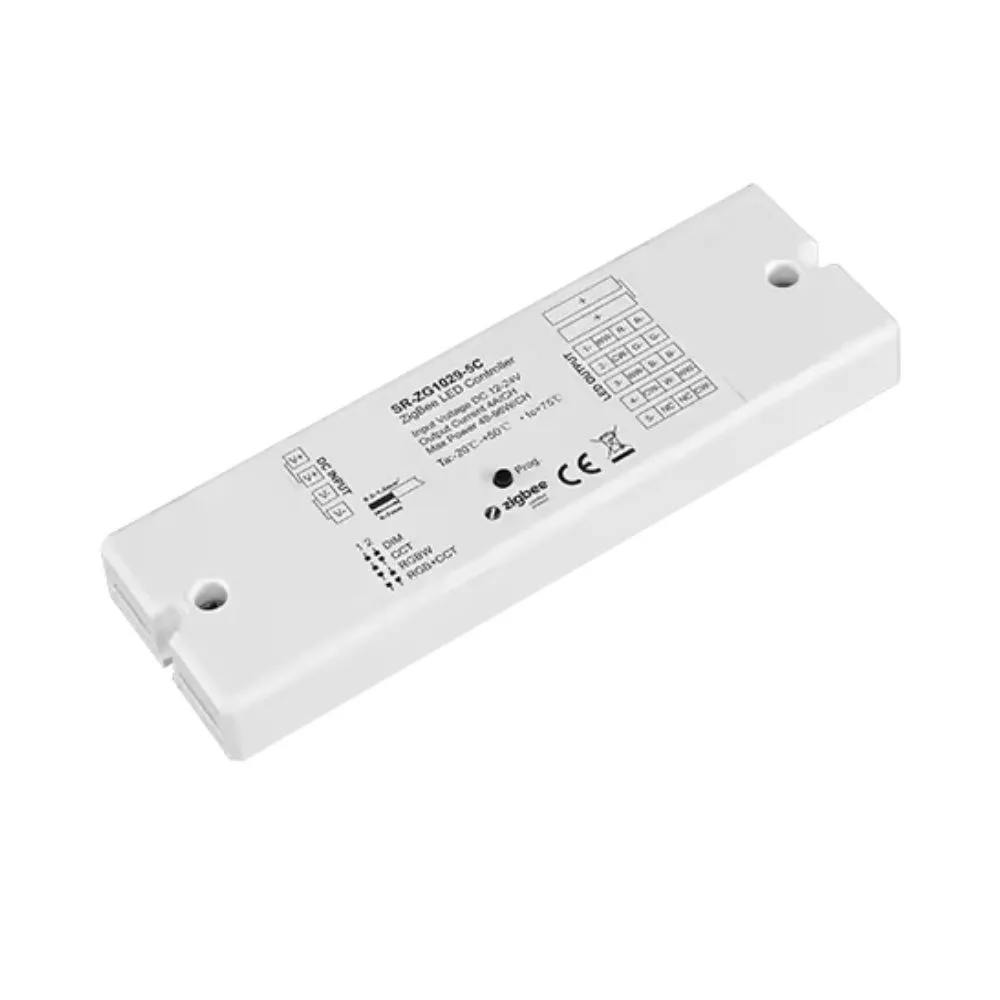

The SR-ZG1029-5C is a Zigbee 3.0-based 4-in-1 constant voltage LED controller that supports DIM, CCT, RGBW, and RGB+CCT operating modes. With 5 output channels, it is suitable for controlling single-color, tunable white, RGBW, and RGB+CCT LED lighting. Lighting types can be selected via DIP switches. The controller can automatically join a Zigbee network and be controlled via hub or coordinator interface. Remote access via smart devices makes it even more convenient to use.
The controller is compatible with universal Zigbee gateways and coordinators, and it can also be directly paired with Zigbee remotes using Touchlink. If multiple compatible Zigbee remotes are connected to the same network, they can work in sync with the device.
Based on the Zigbee 3.0 standard, the device supports pairing with up to 30 Zigbee remote controllers that support Touchlink and Zigbee Light Link functions. Thanks to Zigbee Green Power support, the controller can also work with up to 20 battery-free remotes without requiring a hub.
The device operates with 12–24 V DC input and features five output channels. Each channel can deliver up to 4 A output current, enabling a total output power of up to 480 W.
About Sunricher
Sunricher specializes in wireless smart home solutions, especially devices built on the Zigbee 3.0 standard. Their product range includes controller modules, sensors, and LED drivers, all designed for high compatibility with modern smart home systems.
Main Product Features
- Zigbee 3.0 compatible – reliable LED controller for standardized mesh networks
- 4-in-1 operating mode – DIM, CCT, RGBW, and RGB+CCT in a single device
- Five independent channels – supports single-color, CCT, RGBW, and RGB+CCT LEDs

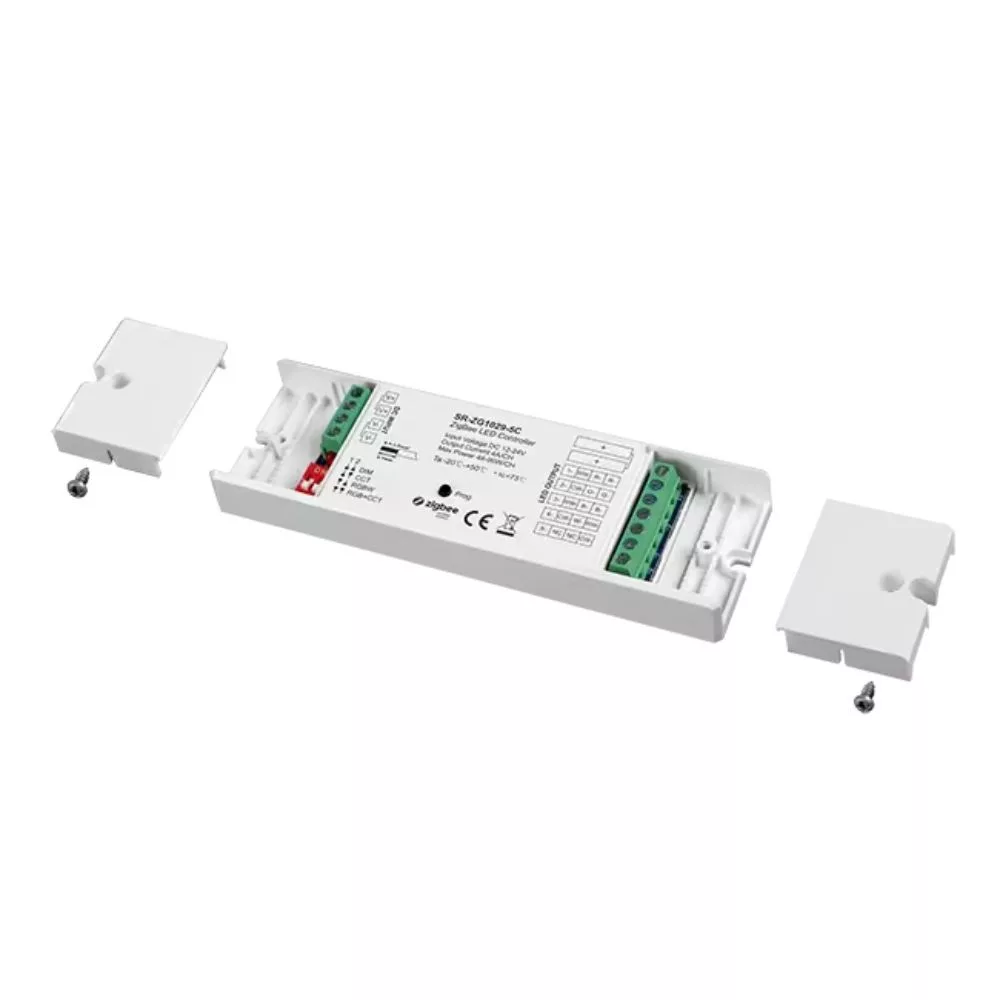

- DIP switch – easy mode switching
- Touchlink pairing – direct Zigbee connection without a hub
- Zigbee Green Power support – connect up to 20 battery-free remotes
- Hub compatibility – works with most Zigbee 3.0 hubs (e.g. SmartThings, Home Assistant, Zigbee2MQTT)
- Standalone networking – can create a self-forming Zigbee network without a hub
Smart Home Protocols and Platform Compatibility
- Protocol: Zigbee 3.0 mesh network
- Local control: Touchlink pairing works even without a hub
- Platform support: compatible with Zigbee 3.0 hubs (SmartThings, Home Assistant, Zigbee2MQTT)
- Cloud integration: Amazon Alexa and Google Home support via Zigbee hub
- IFTTT: available when used with a Zigbee hub
- Integration: compatible with Zigbee2MQTT systems
- Voice control: Alexa and Google Assistant via hub
Smart Functions
- Mode selection via DIP switch – switch between DIM, CCT, RGBW, and RGB+CCT modes
- Touchlink pairing – direct pairing with Zigbee remotes
- Zigbee Green Power support – up to 20 battery-free controllers
- Standalone networking – can operate as a self-forming device without a hub
- OTA firmware updates – updatable over the Zigbee network
Electrical Specifications
- Input voltage: 12–24 V DC
- Output channels: 5 channels, max. 4 A per channel (48–96 W per channel)
- Circuit type: constant voltage LED control
Other Features
- Dimensions: 145 × 46.5 × 16 mm
- Range: up to 30 m indoors
- IP rating: IP20 – indoor use only
