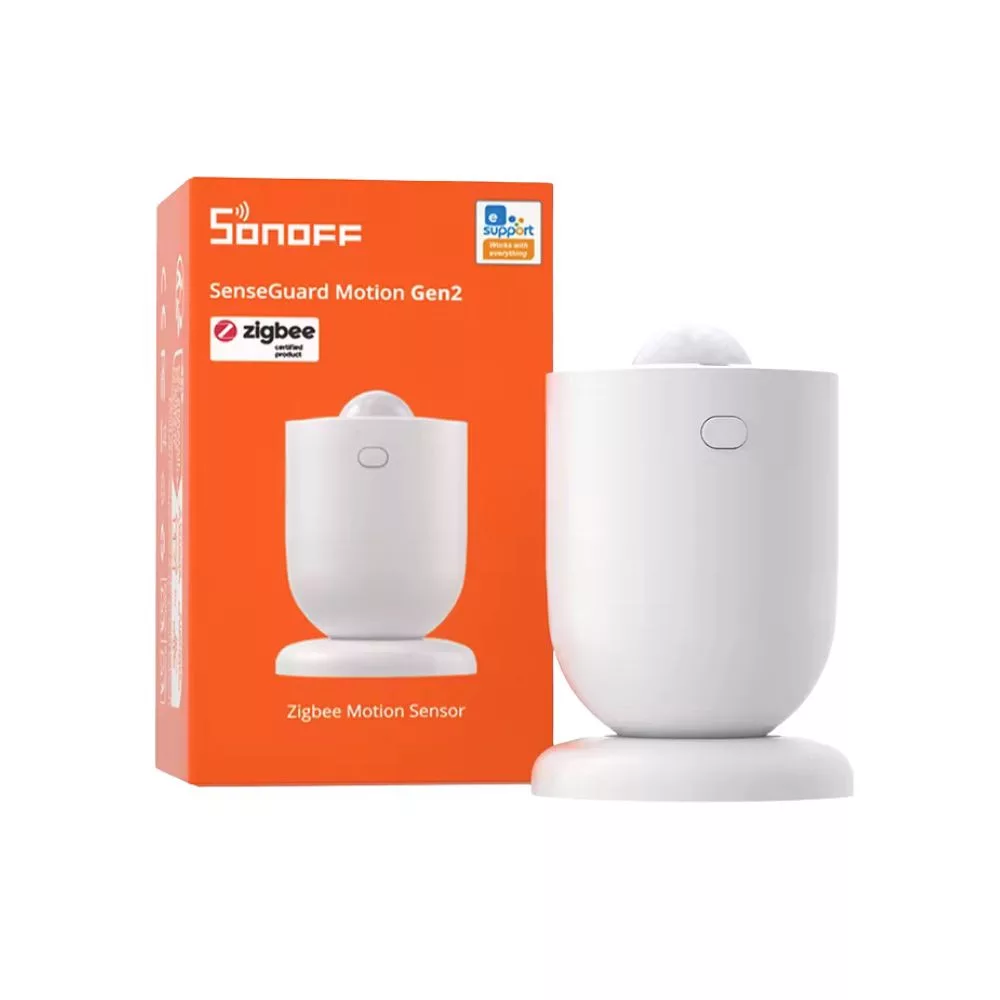

The SONOFF SenseGuard Motion Gen2 (SNZB-03PR2) is a Zigbee 3.0 battery-powered motion and illuminance sensor. Motion detection is handled by a passive infrared PIR sensor, while a separate light sensor measures ambient illuminance in lux.
The PIR sensor has a nominal detection range of approximately 6 meters and a detection angle of around 110°. The motion detection retrigger interval can be adjusted between 5 and 60 seconds. A shorter setting allows more frequent status reporting, while a longer interval reduces the frequency of retriggering.

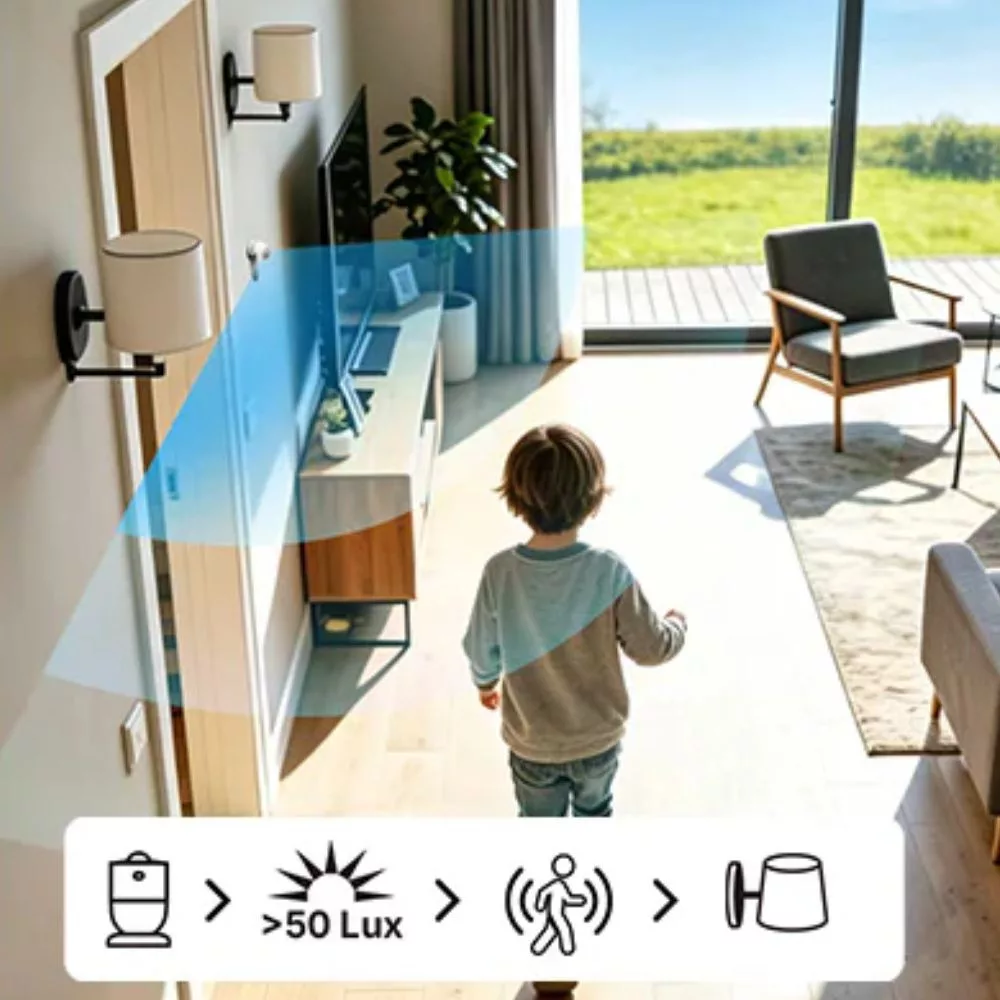

The illuminance sensor can be used as an independent automation condition or together with motion detection. For example, lighting can be configured to turn on only when motion is detected and the measured illuminance is below a specified lux threshold. In the eWeLink system, illuminance data can be logged and exported, and the measured lux value can be calibrated within a ±1000 lux range.
The sensor is powered by one CR2477 coin cell battery and has an expected battery life of up to 3 years. The magnetic base allows the sensor head to be adjusted, while the device can be placed freely, attached with adhesive, or mounted to a wall with screws. It can be connected to a Zigbee 3.0 network through a SONOFF gateway, Home Assistant, a SmartThings hub, or another compatible Zigbee coordinator.
About SONOFF
SONOFF manufactures smart home devices, Zigbee sensors, relay modules, switches, control panels, and gateways. Its products are primarily built around the eWeLink platform, while many devices can also be used with Home Assistant, Zigbee2MQTT, ZHA, SmartThings, and other systems.
The SenseGuard product family includes motion, presence, and environmental sensors. Devices in the series use Zigbee communication and are primarily designed to provide sensing data for lighting, security, and building automation applications.
Key Product Features
- PIR motion detection: The passive infrared sensor detects moving objects within its field of view that have a different temperature from the surrounding environment.
- Adjustable detection interval: The motion detection retrigger time can be configured between 5 and 60 seconds.
- Independent light sensor: Measures ambient illuminance in lux and can also be used as an independent automation condition.
- Illuminance history: Lux data can be viewed and exported in the eWeLink system for up to 6 months.
- Light sensor calibration: The measured illuminance value can be corrected within a ±1000 lux range.
- Motion- and light-based automation: Motion detection and an illuminance threshold can be used together as a combined condition.
- Adjustable magnetic base: The sensor direction can be changed to suit the installation location.
- Multiple mounting options: Can be placed on a surface, attached to a metal surface, fixed with adhesive, or mounted with screws.
- Long battery life: Expected operating time of up to 3 years with one CR2477 coin cell battery.
Measurement and Detection Functions
- Motion status: The eWeLink app displays the current motion status and the event timestamp.
- Illuminance: Ambient light level is displayed in lux.
- Motion event log: Previous motion detection events can be reviewed with timestamps.
- Illuminance log: Changes in light level can be viewed in a historical chart.
- Detection range: Approximately 6 meters, depending on the installation environment and the temperature of the target.
- Detection angle: Approximately 110°.
- Fast status change: The sensor detects motion quickly, while the execution time of the related automation also depends on the Zigbee network and the hub being used.
Smart Home Protocols and Platform Compatibility
- Zigbee 3.0: Low-power wireless communication based on IEEE 802.15.4. A compatible Zigbee gateway or coordinator is required.
- eWeLink: When connected to a SONOFF Zigbee gateway, the eWeLink app provides access to motion status, lux values, event history, detection interval, and calibration.
- Recommended SONOFF gateways: ZBBridge-P, ZBBridge-U, NSPanel Pro, and iHost.
- SONOFF USB coordinators: Can be used with Home Assistant through adapters including ZBDongle-P, ZBDongle-E, Dongle-M, Dongle-PMG24, and Dongle-LMG21.
- Home Assistant: Can be used through Zigbee2MQTT or ZHA integration. According to the manufacturer’s documentation, ZHA currently requires a separate script.
- Zigbee2MQTT: Motion, illuminance, and battery data can be used locally for automations.
- Samsung SmartThings: Supported with the Aeotec Smart Home Hub V3. Motion, illuminance, and battery status can be managed.
- Amazon Alexa: Can be connected to Echo Plus 2nd Gen, Echo 4th Gen, and Echo Show 2nd Gen devices with built-in Zigbee hubs. Availability of illuminance and battery data may be limited.
- Google Home: Motion status can be queried through the eWeLink cloud account integration. Available functions depend on the platform.
- IFTTT: With an eWeLink membership, motion detection and motion-cleared events can be used as automation triggers.
- MQTT: Native MQTT is not available, but the sensor can be integrated into an MQTT-based system through Zigbee2MQTT.
- Offline operation: Can operate without an internet connection when used with a local Zigbee coordinator, such as Home Assistant with Zigbee2MQTT or ZHA.
Smart Features
- Real-time motion status display with timestamp.
- Motion detection as an automation condition.
- Continuous motion for a specified duration as an automation condition.
- No-motion detection and no motion for a specified period.
- Use of lux values below or above a defined threshold as an automation condition.
- Combined use of motion and a specified lux threshold.
- Adjustable detection interval from 5 to 60 seconds.
- Illuminance calibration within a ±1000 lux range.
- Logging of motion events and illuminance data.
- Export of illuminance history.
- Push notifications when motion status changes.
- Device sharing with other eWeLink users.
- Low battery warning and battery status display when used with a supported gateway.
- OTA firmware updates through supported SONOFF or Home Assistant Zigbee systems.
Electrical Functions
- Power supply: 3 V DC.
- Battery type: 1 × CR2477 lithium coin cell battery.
- Expected battery life: Up to 3 years, depending on usage, network signal strength, and reporting frequency.
- Wired power supply: Not required.
- Switched output: None; the sensor provides automation events to the connected system.
- Local control button: Used for pairing, network testing, and factory reset.
Technical Specifications
- Product series: SenseGuard Series
- Product name: SenseGuard Motion Gen2
- Model: SNZB-03PR2
- Product type: Zigbee motion and illuminance sensor
- MCU: TLSR8656
- Wireless protocol: Zigbee 3.0, IEEE 802.15.4
- Open-area communication range: Up to 100 m
- Zigbee pairing time: 180 seconds
- Motion sensor type: PIR, passive infrared
- Detection range: Approximately 6 m
- Detection angle: Approximately 110°
- Detection interval: Adjustable between 5 and 60 seconds
- Illuminance calibration range: ±1000 lux
- Operating temperature: -10 °C to +60 °C
- Operating humidity: 5–95% RH, non-condensing
- Recommended maximum mounting height: 2 m
- Dimensions: 44 × 44 × 65 mm
- Housing material: PC plastic
- Colour: White
- Installation environment: Indoor
- Certifications: CE, FCC, RoHS
