The Shelly Wave Door/Window EU LR is a Z-Wave® S800-based contact sensor that detects open/closed status of doors and windows, as well as tilt angle (for tilt-turn windows) and ambient light levels. It supports both traditional Z-Wave mesh networks and Z-Wave Long Range mode (selectable during pairing), allowing optimized range and energy usage depending on your installation environment.
The sensor runs on a CR2032 coin battery with an estimated life of up to 2 years. It also supports OTA firmware updates, SmartStart pairing, and multiple Z-Wave security levels including S2. With its compact form factor and three available color options (white, black, brown), it offers discreet and flexible installation.
Typical use cases include optimizing heating and cooling by detecting window openings, intrusion detection and alerts, and triggering lighting scenes based on contact status and light levels.
Z-Wave is a wireless RF communication protocol specifically designed for home and small business automation, monitoring, and control. It is a mature and widely adopted technology that connects millions of affordable, reliable, and easy-to-use smart devices worldwide.
Interoperability is a core principle of Z-Wave: all certified Z-Wave devices work together regardless of brand. Mains-powered devices in the network act as repeaters, improving network reliability. The Z-Wave ecosystem includes over 4,000 certified products, with strong backward and forward compatibility, and more than 100 million Z-Wave devices are in use globally.
About the Shelly Brand
Shelly develops a wide range of smart energy and home automation products including relays, sensors, meters, and hubs. The Shelly Wave series uses the Z-Wave protocol to ensure broad gateway compatibility, enhanced security, and stable performance.
Key Product Features
- 3-in-1 sensing: open/close detection, tilt sensing, and light level measurement in one device.
- Two network topologies: choose between Z-Wave mesh or Z-Wave Long Range based on your needs.
- Long battery life: up to 2 years operation on a single CR2032 coin cell.
- Quick setup and security: SmartStart pairing, OTA firmware updates, S0 and S2 encryption support.
- Compact and aesthetic: available in multiple colors for discreet installation.
Smart Home Protocols & Platform Compatibility
- Protocol: Z-Wave and Z-Wave Long Range.
- Security: Unsecure, S0, S2 Unauthenticated, S2 Authenticated.
- Integration: Compatible with certified Z-Wave gateways, including modern Z-Wave hubs and Home Assistant setups using Z-Wave JS.
- Network functions: SmartStart pairing, association support in mesh mode, OTA updates.
Smart Features
- Open/close events: instant status updates for automations and notifications.
- Tilt detection: accurately detect the state of tilt-turn windows.
- Light-based scenes: trigger lighting or shading based on ambient light levels.
- Energy efficiency: automatically turn off heating or cooling when a window is open.
Technical Specifications
- Product: Shelly Wave Door/Window EU LR
- Power supply: 1 x 3V CR2032 battery
- Estimated battery life: up to 2 years
- Sensors: reed switch (open/close), G-sensor (tilt), light sensor
- Processor: Z-Wave S800
- Max radio output power: less than 25 mW
- Z-Wave LR range: up to 80 m indoors, up to 1000 m outdoors (environment-dependent)
- Z-Wave mesh range: up to 40 m indoors (environment-dependent)
- Frequency bands (EU): mesh 868.4 MHz, LR 864 MHz
- Repeater function: No (battery-powered endpoint)
- Security: Unsecure, S0, S2 Unauthenticated, S2 Authenticated

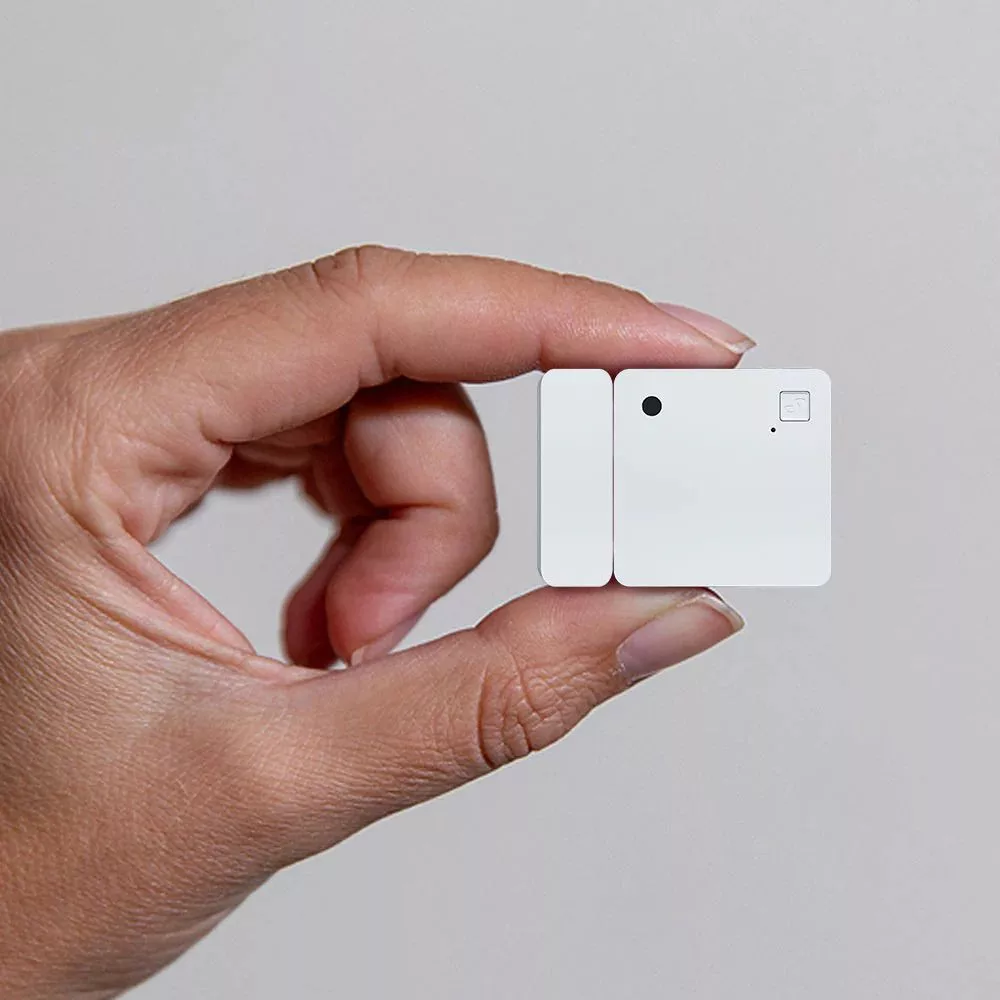

- Dimensions: sensor – 35 × 35 × 7 mm; magnet – 35 × 12 × 7 mm
- Weight: sensor with battery – 10 g; magnet – 8 g
- Enclosure: plastic
- Colors: white, black, brown
- Operating temperature: −20 to +40 °C
- Operating humidity: 30–70% RH
- Note: In LR mode, star topology is used (no repeating); range and available features depend on gateway and environment.
