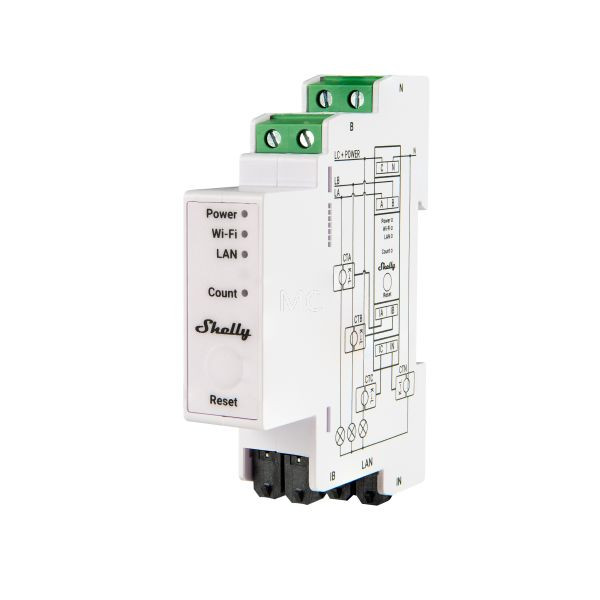

Shelly PRO 3EM RC 2000A three-phase, high-performance professional Wi-Fi + Ethernet energy meter with 3 x 2000A Rogowski coils

The Shelly PRO 3EM RC 2000A version is Shelly’s smart energy meter for DIN rail mounting in electrical cabinets, supporting Wi-Fi + Bluetooth + Ethernet + Modbus, and capable of three-phase, bidirectional measurement (consumption and feed-in). Thanks to its LAN connectivity, it can be installed in locations where Wi-Fi reception is severely limited (e.g. due to metal cabinets). The product includes three pieces of 2000A Rogowski coils.



All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:
Shelly
Supported protocols:
Bluetooth, Ethernet / LAN, Wi-Fi
Shelly PRO 3EM RC 2000A three-phase, high-performance professional Wi-Fi + Ethernet energy meter with 3 x 2000A Rogowski coils
Available for order
718.8 €
Details

Shelly Pro 3EM RC – Smart Three-Phase Energy Meter with Rogowski Coils

The Shelly Pro 3EM RC is a professional smart energy meter suitable for industrial use, capable of connecting three Rogowski coils (contactless current measurement). It is ideal for detailed monitoring of energy consumption in small and medium-sized enterprises, whether for entire buildings or individual systems.


Main features:

  • Maximum measurement range: up to 2000 A per phase
  • 4-quadrant measurement: precise tracking of active, reactive, import, and export energy
  • DIN rail mountable design
  • Multiple wiring options: suitable for both single-phase and three-phase systems
  • Rogowski coil current sensing: contactless, quick, and safe installation
  • Phase sequence error detection: optionally enabled, detects A-B-C sequence errors based on zero crossings
  • Per-channel calibration: precision adjustment possible with at least 500 W load
  • Load threshold detection: no energy is added to statistics below 30 VA, and the user receives a warning
  • Optical pulse indication: real-time energy usage is visibly trackable
  • Real-time clock (RTC): stores precise timestamps even when the internet connection is lost
  • Data logging: stores up to 60 days of consumption data on the device
  • External contactor control: automated or script-controlled load switching is possible using the Shelly 3EM Switch Add-on
  • Accuracy class: Class B (according to IEC 62053-21)


Communication and integration:

  • Local and remote access: operates standalone on Wi-Fi networks but can also be accessed and controlled remotely via the internet
  • Built-in web interface: configuration, monitoring, and control directly from a browser
  • MQTT(s) support: easy integration into BMS and HMI systems


Applications:

  • Monitoring power consumption in industrial facilities
  • Energy efficiency analysis for SME building operations
  • Contactless measurement without dismantling existing systems
  • Automated energy-based control systems


Info
Colour:
white
Device power supply:
110V-240V AC ±10%
DIN rail compatible:
yes
Operating temperature range:
-20 °C - 40 °C
Operating humidity range:
30% - 70% RH
Built-in memory:
yes, power measurement data can be stored on the device, even in offline mode
Dimmer feature:
no
Power consumption metering:
yes, 3 x 2000A Rogowski coils
Rated current (output):
3x2000A
Physical on/off button on device:
no
External switch supported:
no
Momentary switching (inching):
yes, auto on and auto off settings available
Surge protection:
no
Overheat protection:
no
Ethernet (RJ-45):
no
Wi-Fi:
yes
Wi-Fi standards:
802.11 b/g/n (2.4GHz)
Zigbee:
no
Thread:
no
Z-Wave:
no
RF transmitter / receiver:
no
Bluetooth:
yes, but Bluetooth is only used for device pairing with phone
Controllable from internet:
yes
Manufacturer smartphone app:
free app (Shelly Smart Control) (iOS, Android)
Web admin interface:
yes, almost the same functionality as the app
Cloud mode:
yes, Shelly devices may connect to factory cloud (optional setting)
LAN mode:
yes, works just in the local area network mode, with full functionality (adjustable)
REST API support:
yes
MQTT support:
yes
Schedulers, timers:
yes, (after synchronizing clock on the internet) limited number of timings operate in offline mode, any further timing can be run from the cloud in online mode
Notification functions:
send email, Shelly app notification
History / Event log:
yes: on/off history in the app (the last 50 event for every Shelly account)
Warranty:
24 Months
Warranty type:
extended warranty
Size:
70 x 19 x 93 mm
