Shelly PLUS 2PM 2-channel WiFi smart relay switch with power meter and roller shutter mode

Shelly PLUS 2PM is one of the world’s smallest WiFi-equipped dual-channel smart relay switch, with power meter feature. Thanks to its small size, it fits into the wall in the wall box under a standard 2-gang light switch. It also features a roller shutter mode, so can be used to control motorized roller shutters and shaders.

Shelly PLUS 2PM is the new version of the popular Shelly 2.5 relay, with ESP32 chip inside, with Bluetooth-based pairing.


All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:
Shelly
Factory SKU ID:
3800235265031
Supported protocols:
Bluetooth, Wi-Fi
in stock (30+ pcs)
25.42
Looking for discounts?
Details

Shelly PLUS 2PM is the new version of the power meter-equipped 2-gang relay Shelly 2.5. This is one of the smallest, open source, WiFi-access device to smart control 2 circuits. Due to its small size you can build it in behind a 2-gang light switch or into an electrical cabinet.


New and improved shell

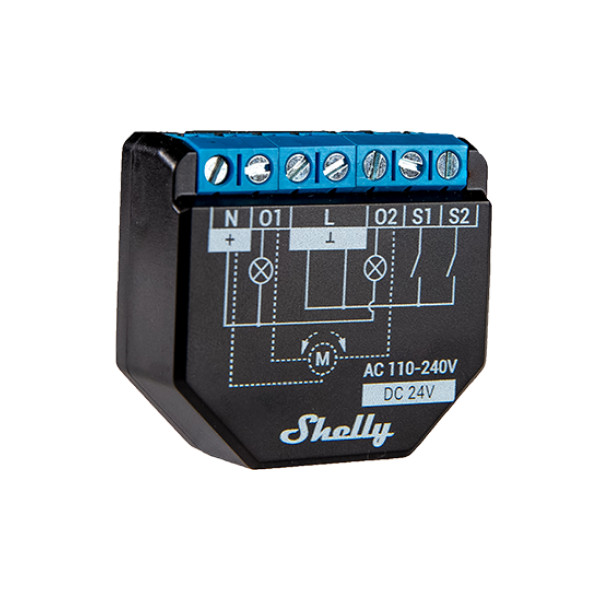

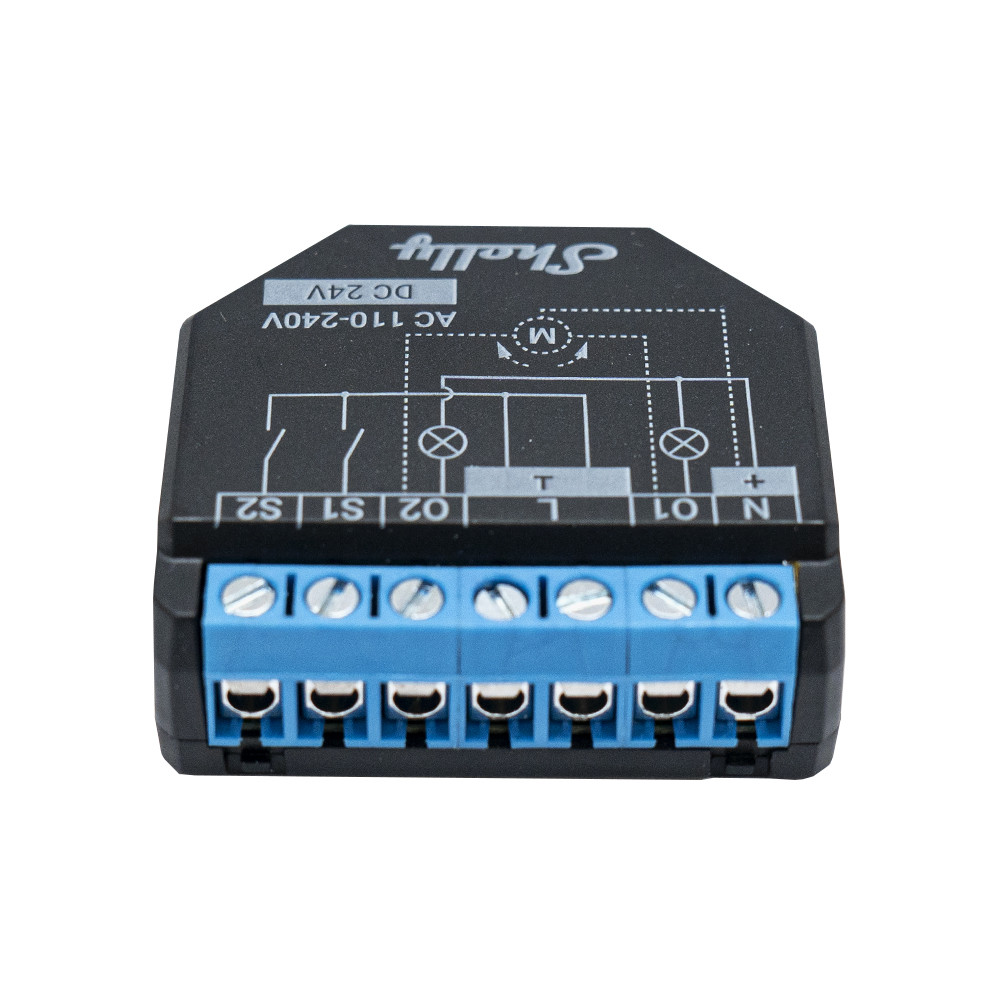

Shelly Plus line comes in a unified and improved form. Plus line devices’ small dimensions allow you to easily fit them behind any wall switch or wall socket, and are fully retrofit. Each Plus line device comes with a wiring diagram printed on its shell to ensure safe and easy installation.



PLUS SERIES:

  • Enhanced safety: Enhanced over-temperature protection with software thresholds for control and prevention of failure
  • Extremely fast processor: For immediate command execution and notification
  • Wi-Fi operated: Connect Shelly Plus 2PM to your Wi-Fi network. No HUB required
  • Bluetooth: Add devices quickly and easy via Bluetooth connection, using Shelly Cloud App
  • Improved API interface: Broad range of cloud connections and local integrations with much lower integration cost
  • Enhanced security: MQTT and WSS support, TLS and custom certificates support for a broad range of use cases



FEATURES:

  • Wi-Fi operated - Connects to your Wi-Fi network. No HUB required!
  • Bluetooth - Add devices quick and easy via Bluetooth connection, using Shelly Cloud App
  • Power metering with data storage
  • Wide range of voltages supported
  • Extremely fast processor – ESP32
  • Enhanced safety – Overpower, overvoltage and over-temperature protection
  • Enhanced security - MQTT and WSS support, TLS and custom certificates support
  • Improved API interface
  • Wireless: No HUB required – Connect Shelly PLUS 2PM directly to your Wi-Fi at home.
  • Control remotely: Control the lighting at home, no matter where you are. No more lights left on and coming home in darkness.
  • Highly compatible: Compatible with Android, iOS, Amazon Alexa and Google Assistant. Control your appliances with your voice.
  • Wide range of voltage support: Shelly PLUS 2PM can be used to control a wide range of devices and appliances, including roller shutters and shaders
  • Sunrise/Sunset schedules: Automatically follow the sun and turn Shelly on/off based on sunrise and sunset hours.
  • Weekly schedules: Create custom daily schedules for your devices.
  • Overheating protection: Internal temperature sensor for overheating protection.
  • Power metering: Precise monitoring of your appliances power consumption.

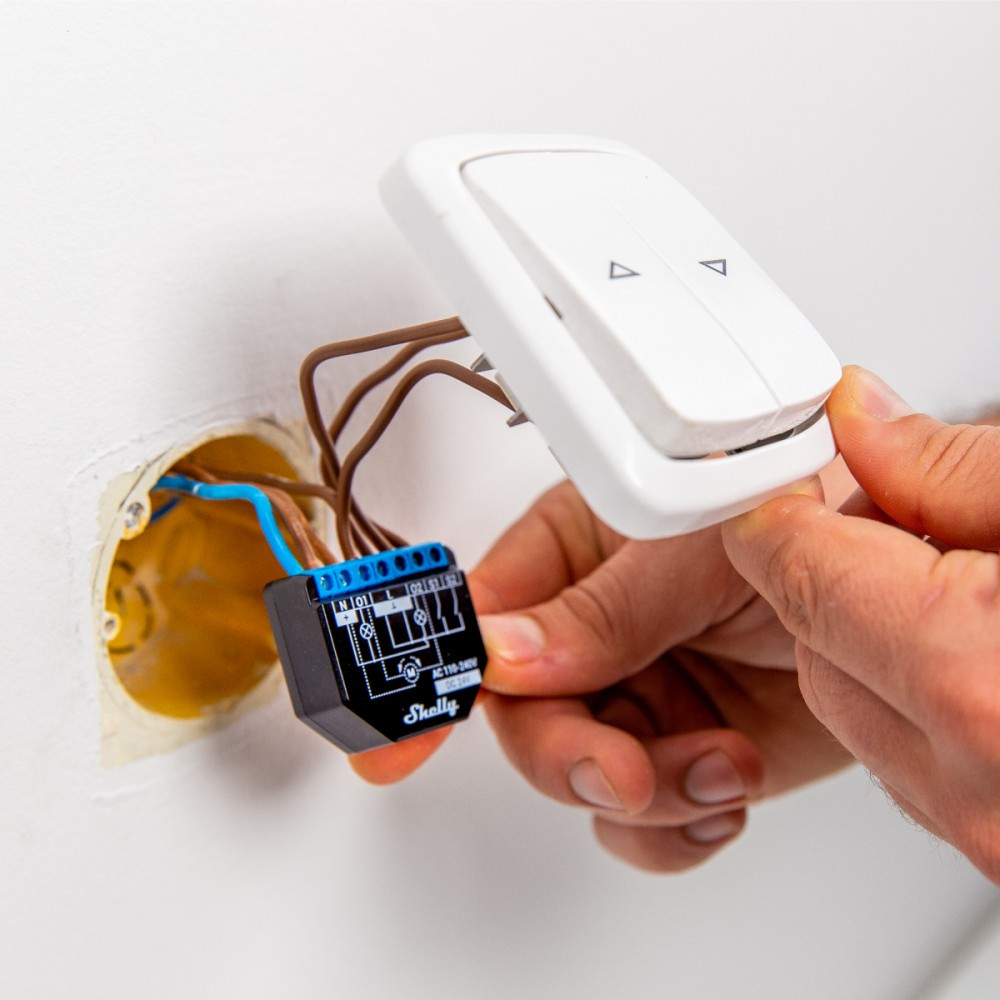

Building Shelly PLUS 2PM behind a wall switch, you can control 2 gangs of lights by keeping your existing switches and monitor their status (turned ON / OFF).

Also, you can activate Roller Shutter mode and activate interlock mode: one circuit controls rolling up, the other one controls rolling down.

Consumption history, anywhere, at anytime.

Use with any applience: Shelly PLUS 2PM supports AC power supply and allows you to control a wide range of devices and appliances.

Small size: Intelligently designed to fit in most electrical boxes and switches.

Countdown timer: No more forgetting to turn appliances off. The integrated countdown timer can automatically switch off the oven after an hour.

Overheating and overconsumption protection: Internal temperature sensor for overheating protection. If the PCB temperature goes above a danger level, the device will turn off. Shelly Plus 2PM will turn off the circuit immediately if it detects a consumption higher than the defined ower-power setting.

Lighting control: Are you about to watch a movie, all set up on the sofa with popcorn in your lap? Or maybe you are going to bed and need to switch off all the lights, so annoying. To avoid these unpleasant situations install Shelly Plus 2PM at home, and you will be able to control your lights with just one tap via your smartphone, or with your voice.

Motion sensor with light control: With Shelly Plus 2PM and a motion detector, you may use it as a motion detection switch for you outdoor lights.

Capable for alternative and cross-switch functioning. Features power metering.

Timer function:

  • set schedules of turning ON / OFF to any weekdays
  • supports schedules adjusted to dawn/dusk


Built-in web-server, configurable from web-interface via local network. LAN-compatible, controllable via local network without Shelly Cloud and Internet access. Supports MQTT.

Compatible with Google Home and Amazon Echo voice control.

The device operates with a ESP32 based chip, supporting Bluetooth pairing and WiFi based remote control.

It can be also integrated easily with own automatization server.

Like other smart switches this device has to be connected to phase wire and neutral wire too.


One application, countless possiblities: With the best cloud service in the world, user-friendly interface, scenes, bulk control, and much more, the Shelly Cloud application allows you to control your home from anywhere. Each Shelly can be integrated and works with all other Shelly devices in the Shelly App.



Info
Product type:
two circuit smart WiFi relay, with power meter, shutter control
Colour:
black, with printed drawing
Device power supply:
110V-240V AC, 24V DC
Wiring:
230V AC (live and neutral)
DIN rail compatible:
yes, together with Shelly DIN-adapter (not included)
Max. power consumption:
1W, &lt
Embedded relay:
yes
Dimmer feature:
no
Power consumption metering:
yes
Number of gangs / circuits:
2
Rated voltage (output):
110V-240V AC
Rated current (output):
10A per channel, 16A in total
Physical on/off button on device:
no
External switch supported:
yes
2-way or 3-way switching:
yes
Momentary switching (inching):
yes, auto on and auto off settings available
Interlock mode:
yes, in shutter-control mode
Surge protection:
yes
Overload protection:
yes
Overheat protection:
yes
Ethernet (RJ-45):
no
Wi-Fi:
yes
Wi-Fi standards:
802.11 b/g/n (2.4GHz)
Zigbee:
no
RF transmitter / receiver:
no
Bluetooth:
Bluetooth pairing with phone, also Bluetooth remote controllers can be paired with it to remote control it, also Bluetooth hub features makes it possible to control other non-Bluetooth Shelly devices
Controllable from internet:
yes
Manufacturer smartphone app:
yes, free app (Shelly Cloud) (iOS, Android)
Web admin interface:
yes, almost the same functionality as the app
Voice control:
Amazon Alexa and Google Assistant compatible
Cloud mode:
yes, Shelly devices may connect to factory cloud (optional setting)
LAN mode:
yes, works just in the local area network mode, with full functionality (adjustable)
REST API support:
yes
MQTT support:
yes
Supported integrations:
Amazon Echo, Google Home, HomeSeer, openHAB, Home Assistant, ioBroker, Hubitat, Hoobs, Symcan, Domoticz, nymea, SmartThings (beta), REST API
Schedulers, timers:
yes, (after synchronizing clock on the internet) limited number of timings operate in offline mode, any further timing can be run from the cloud in online mode
Notification functions:
send email, Shelly app notification
History:
yes: on/off history in the app (the last 50 event for every Shelly account)
Weight:
60 g/pcs
