The Shelly Dimmer 0/1-10V PM Gen4 is a professional smart dimmer controller designed for controlling 0–10V and 1–10V dimmable power supplies and other compatible devices. It is an ideal solution for modern LED lighting systems, dimmable drivers, or valve control in both residential and commercial environments.
One of the biggest advantages of the Gen4 series is its multiprotocol operation, supporting Wi-Fi, Bluetooth, Zigbee, and Matter, ensuring exceptionally broad compatibility with various smart home systems. The device can operate independently on a local network while also integrating seamlessly into cloud platforms and open-source systems such as Home Assistant.
The Shelly Dimmer 0/1-10V PM Gen4 is especially suitable for applications where precise brightness control and ambient lighting are essential. It provides a professional-grade solution for restaurants, bars, offices, cinemas, and premium residential lighting systems. Smooth transitions, configurable minimum and maximum brightness levels, and intelligent scheduling allow the creation of the perfect lighting atmosphere.
The device includes built-in power monitoring, enabling real-time tracking of connected lighting energy consumption. Advanced Shelly automation features such as scripting, MQTT, Webhooks, and KNXnet/IP support make it suitable for integration into complex building automation systems.
Existing lighting installations can be modernized easily, as the device supports traditional wall switches and push buttons. In addition to single-button and dual-button dimming control, it supports smooth dimming transitions, night mode, and sunrise/sunset-based automations.
About the Shelly brand
Shelly is one of the most recognized and innovative smart home brands in Europe, developed by the Bulgarian company Allterco Robotics. The manufacturer is particularly strong in the market of Wi-Fi and Bluetooth-based smart devices, which typically operate without requiring a central hub, enabling quick and easy installation with only a Wi-Fi network.
Shelly offers a broad portfolio including relays, sensors, smart plugs, lighting solutions, and professional DIN rail-mounted devices. A strong focus is placed on local control, allowing devices to operate even without internet access, improving reliability and data security.
Shelly devices support advanced integration methods such as REST API, MQTT, and Webhooks, making them compatible with platforms like Home Assistant, openHAB, Node-RED, and other DIY systems. They also work with cloud ecosystems such as Google Home, Amazon Alexa, and Samsung SmartThings.
The latest Shelly generations include BLE gateway, Wi-Fi range extender, and additional networking features. Shelly products are highly popular among advanced users and installers, while their ease of use also makes them suitable for beginners.
Key product features
0–10V and 1–10V support: Wide compatibility with dimmable drivers
Multiprotocol operation: Wi-Fi, Bluetooth, Zigbee, and Matter support
Power monitoring: Real-time power and energy measurement
KNX support: KNXnet/IP integration for building automation
Scripting support: Advanced automations and local logic
Wi-Fi range extender: Extends wireless coverage
BLE gateway: Integration of Shelly BLU devices
Smart home protocols and platform compatibility
Supported protocols and standards: Wi-Fi, Bluetooth, Zigbee, Matter
Zigbee router functionality: Yes
Matter support: Yes, for simplified smart home integration
Platform compatibility: Home Assistant, Alexa, Google Home, SmartThings
Local API: HTTP API, MQTT, Webhooks, UDP
KNX integration: KNXnet/IP support
BLE gateway: Supports Shelly BLU devices
Smart features
Remote brightness control: Via app or automation
Scheduling: Weekly and advanced annual schedules
Sunrise/sunset automation: Automatic brightness adjustment
Night mode: Reduced brightness for nighttime use
Min./max. brightness settings: Precise dimming control
Transition timing control: Smooth dimming transitions
Event logs: Detailed activity tracking
Virtual components: Dynamically created controls
Electrical features
Power supply: 110–240V AC
Dimming standard: 0–10V / 1–10V
Outputs: 0–10V dimming output (+/-)
Relay output: 1 relay with power monitoring
Switch inputs: S1 and S2
Power monitoring: Voltage, current, and power measurement
Protection: Overvoltage, overcurrent, and overpower protection
Technical specifications
Product name: Shelly Dimmer 0/1-10V PM Gen4
Model: S4DM-0010WW
BLE Model ID: 0x1074
Supported protocols: Wi-Fi, Bluetooth 5.0, Zigbee 3.0, Matter over Wi-Fi
Zigbee repeater function: Yes
BLE gateway function: Yes
Wi-Fi range extender: Yes
Power supply: 110–240V AC, 50/60 Hz
Power consumption: < 1.5W
Dimming standards: 0–10V and 1–10V
Dimming control type: Supports current sourcing and current sinking

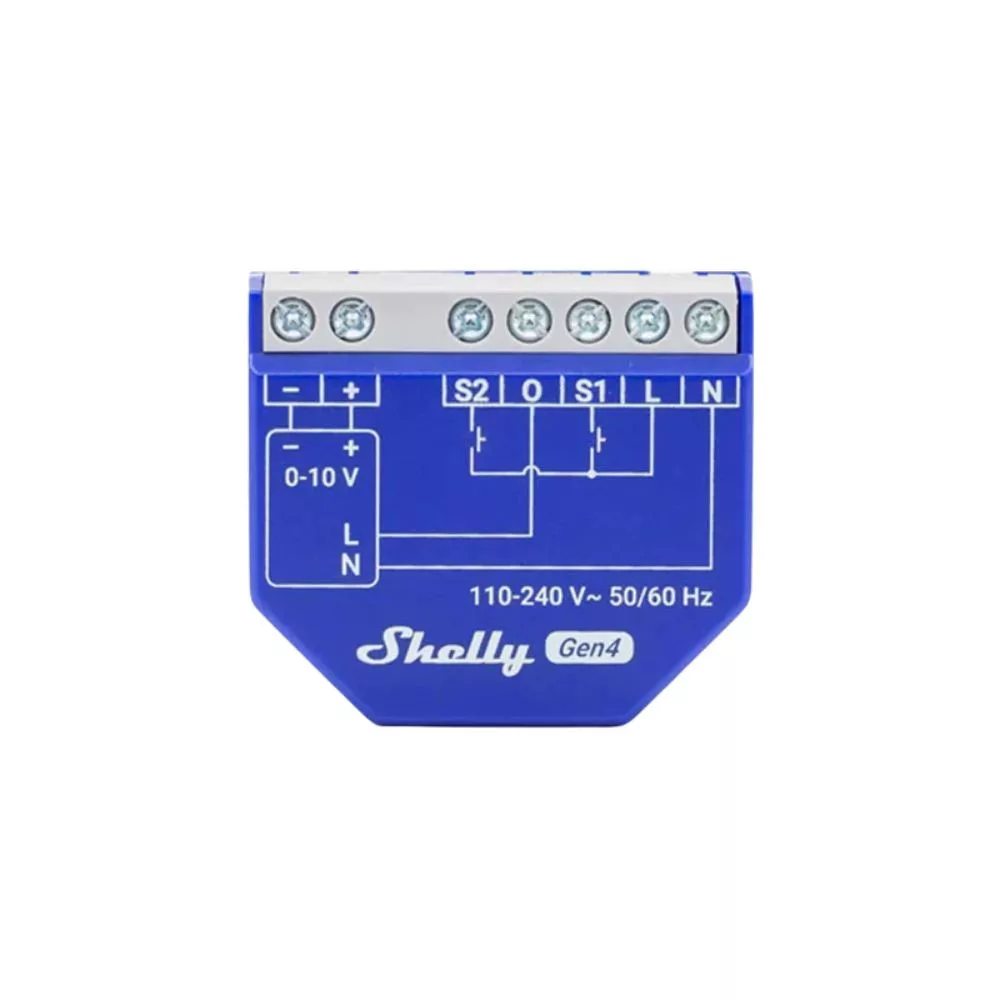

Switch inputs: Switch/push-button inputs (S1 and S2)

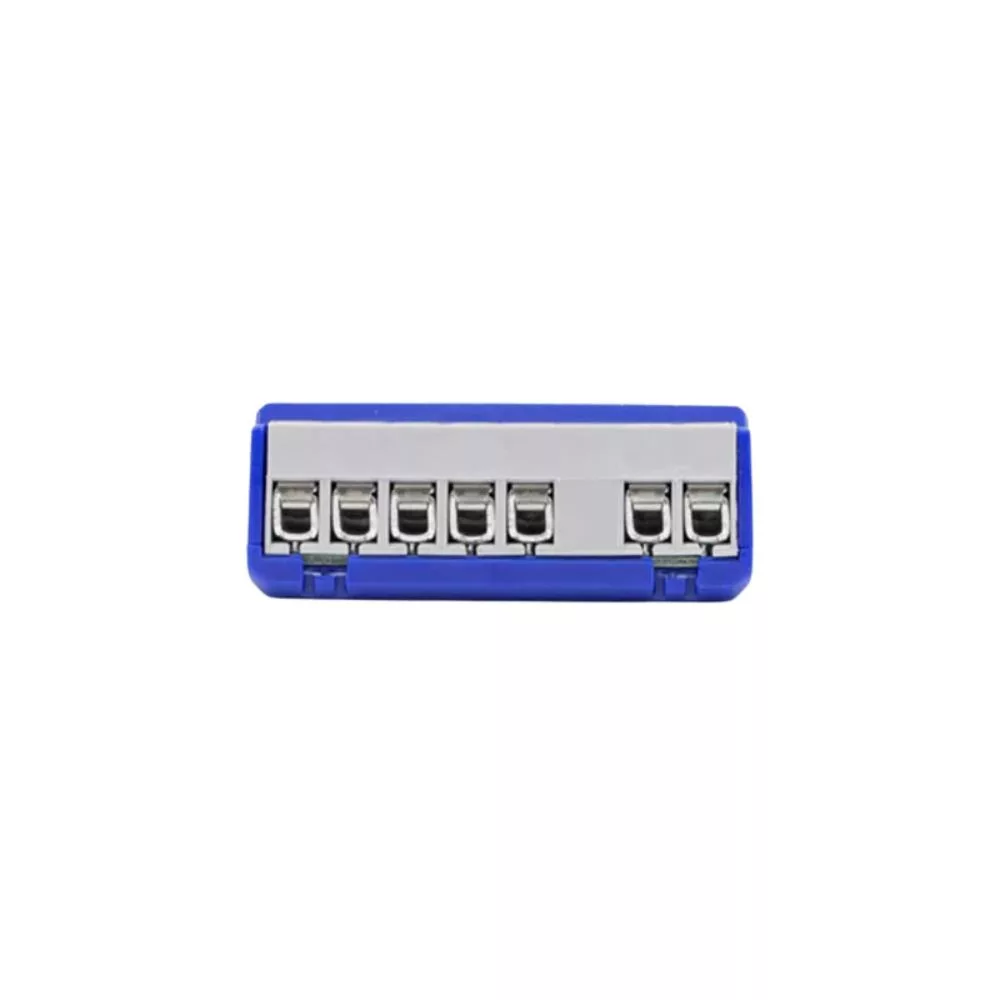

Power terminals: L and N screw terminals
Dimming outputs: 2 × 0–10V outputs (+ and -)
Relay output: 1 relay output with power monitoring
Max. switching voltage: 240V AC
Max. switching current: 13A
Max. control current: 35mA
Supported loads: 0–10V and 1–10V dimmable LED drivers, lighting systems, motors, valves, and other control circuits
Power monitoring: Yes
Voltage measurement: 110–240V AC
Voltage measurement accuracy: ±10%
Current measurement: 50mA – 16A
Current measurement accuracy: ±10%
Internal temperature sensor: Yes
Safety protections: Overheating, overvoltage, overcurrent, and overload protection
Recommended external protection: 16A B or C curve circuit breaker, 6kA breaking capacity
Add-on interface: Shelly proprietary serial interface
Compatibility: Shelly Plus Add-On sensor interface
Warning: High voltage may be present on the add-on interface during operation
Wi-Fi standard: 802.11 b/g/n/ax
Wi-Fi frequency: 2401 – 2483 MHz
Wi-Fi max RF power: < 20 dBm
Wi-Fi range: Up to 30 m indoors / 50 m outdoors
Bluetooth standard: BLE 5.0
Bluetooth frequency: 2402 – 2480 MHz
Bluetooth max RF power: < 4 dBm
Bluetooth range: Up to 10 m indoors / 30 m outdoors
Zigbee standard: IEEE 802.15.4
Zigbee frequency: 2405 – 2480 MHz
Zigbee max RF power: < 20 dBm
Zigbee range: Up to 100 m indoors / 300 m outdoors
Processor: ESP32-C6
Clock speed: 80 MHz
Flash memory: 8 MB
Automations: 20 timers and advanced scheduling
Webhook support: 20 webhooks, up to 5 URLs per webhook
Scripting support: Yes
MQTT support: Yes
KVS support: Yes
KNXnet/IP support: Yes
Virtual components: Yes
Local and cloud operation: Yes
Hub required: No
Compatible platforms: Home Assistant, Google Home, Amazon Alexa, Samsung SmartThings
Size: 38.5 × 43.5 × 17 mm
Weight: 28.5 g

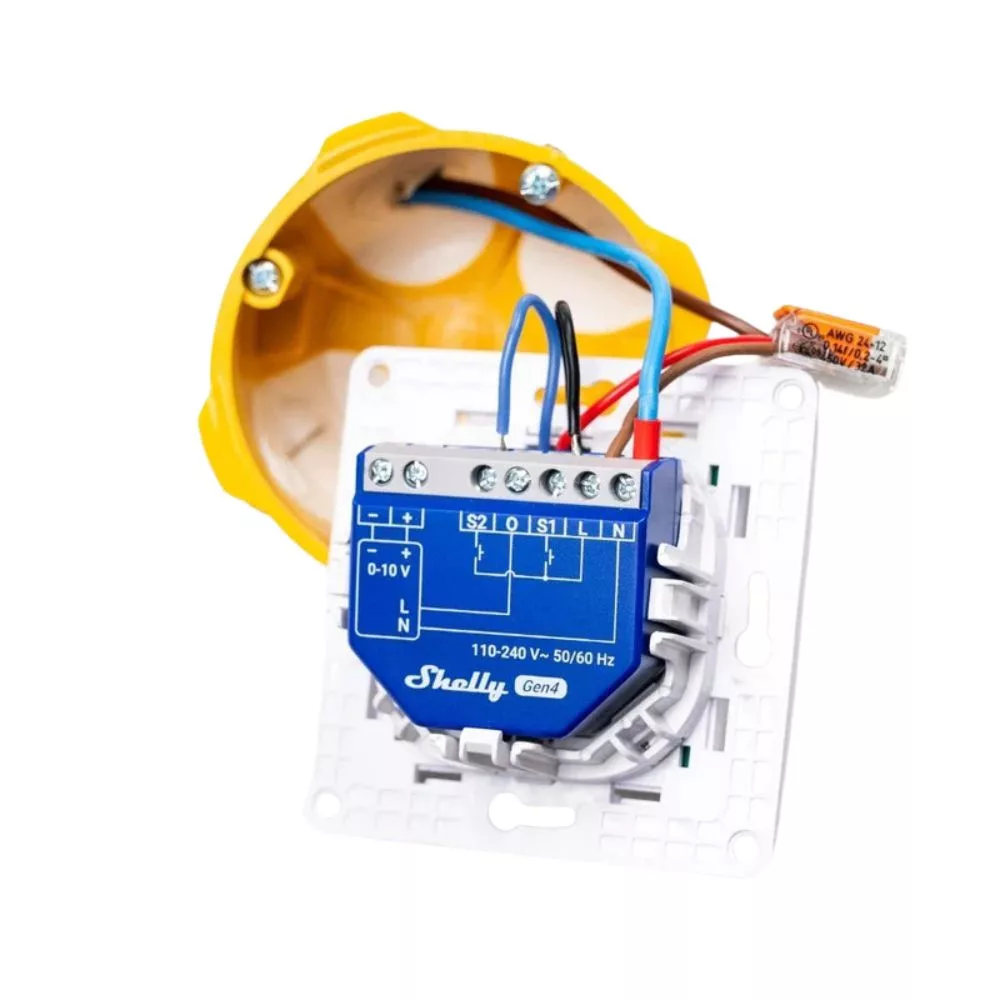

Installation: Behind wall switches or ceiling installations
Wire cross-section: 0.2 – 2.5 mm² (24–14 AWG)
Wire stripping length: 5 – 6 mm
Terminal torque: 0.4 Nm
Housing material: Plastic
Housing color: Blue (Pantone 2736C) with white labeling
Connector color: Gray
Operating temperature: -20°C – +40°C
Operating humidity: 30 – 70% RH
Max. installation altitude: 2000 m
Control button functions: AP mode activation, Bluetooth activation, factory reset, Matter/Zigbee profile switching, Zigbee pairing restart
LED indicators: Wi-Fi status, Zigbee/Matter pairing, OTA update, cloud connection, and system status indication
