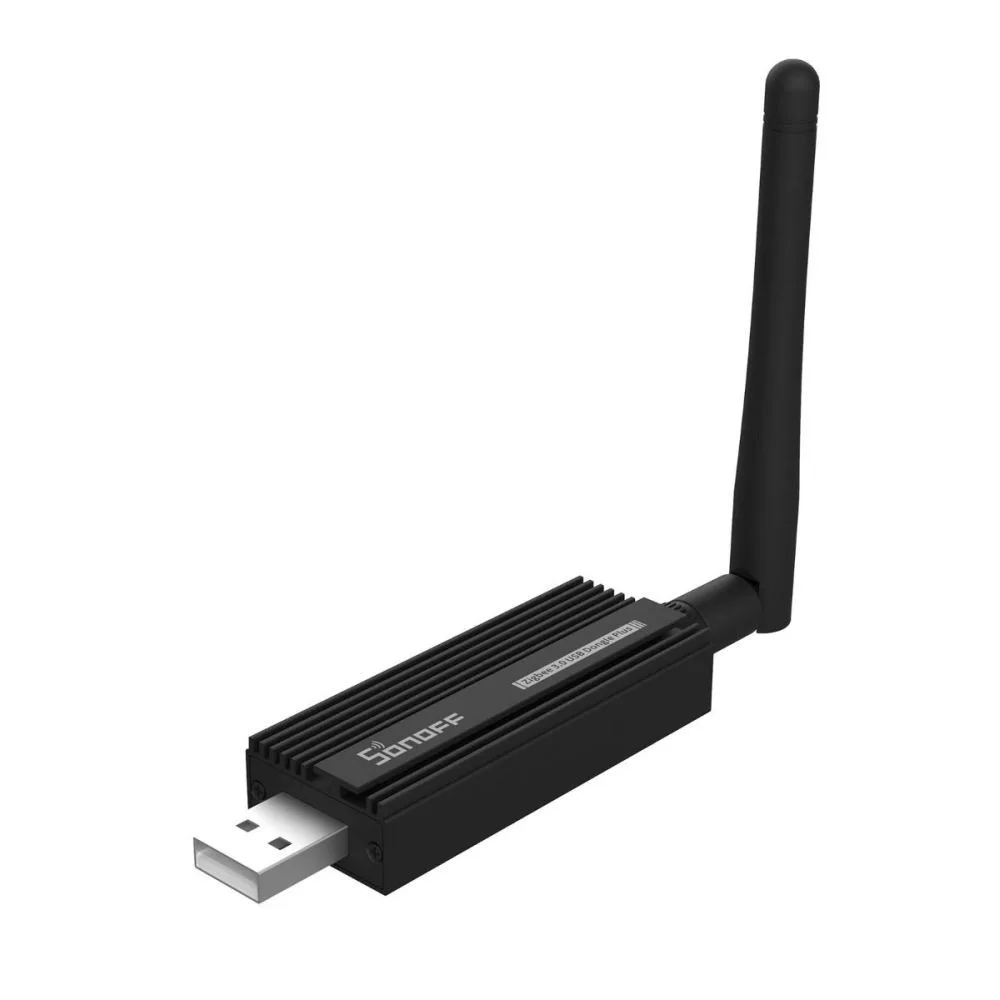

The Dongle Plus (ZBDongle-P) is SONOFF’s Zigbee 3.0 coordinator, which can be connected as a USB adapter to a computer, Home Assistant server, or other smart home hub. The ZBDongle-P provides a stable and reliable Zigbee network, enabling centralized control and integration of multiple Zigbee devices – up to 21 child devices simultaneously, such as sensors, switches, and relays.
One of the biggest advantages of the dongle is that it is based on the CC2652P chipset, which ensures strong radio performance and stable network operation. The external antenna further increases range and signal quality, providing reliable connectivity even in larger homes or across multiple rooms.
The device operates via USB, making installation and use simple with Plug&Play functionality. The ZBDongle-P is especially popular among DIY and advanced users, as it supports various firmware and systems such as Zigbee2MQTT, ZHA, or even Matter (in eWelink Cube OS). This allows users to build their smart home system according to their own needs, even with fully local, cloud-free operation.
About the SONOFF brand
SONOFF is one of the best-known smart home manufacturers, known for its affordable and flexible devices. Its product range includes Wi-Fi, Zigbee, and Matter-based devices that can be widely integrated with various platforms. The brand is especially popular in the DIY and Home Assistant community.
Main product features
Zigbee 3.0 coordinator: Central unit for managing Zigbee devices.
Strong radio performance: CC2652P chip with stable and fast communication.
External antenna: Increased range and better signal strength.
USB connection: Simple Plug&Play installation.
Firmware flexibility: Supports multiple firmware options (Zigbee2MQTT, ZHA, Thread).
DIY compatibility: Customizable operation for advanced users.
Smart home protocols and platform compatibility
Protocol: Zigbee 3.0.
Matter: Matter support via eWeLink Cube platform.
Home Assistant: Full support (ZHA, Zigbee2MQTT).
openHAB / Domoticz: Can be integrated with proper configuration.
MQTT: Supported via Zigbee2MQTT.
Cloud-free operation: Can be used in a fully local system.
Zigbee network management: Pairing and managing devices.
Automations: Creating logic between sensors and devices.
Firmware updates: Device and network improvements via different firmware options.
Electrical features
Power supply: USB 5V
Communication: USB data connection
Consumption: Low power consumption

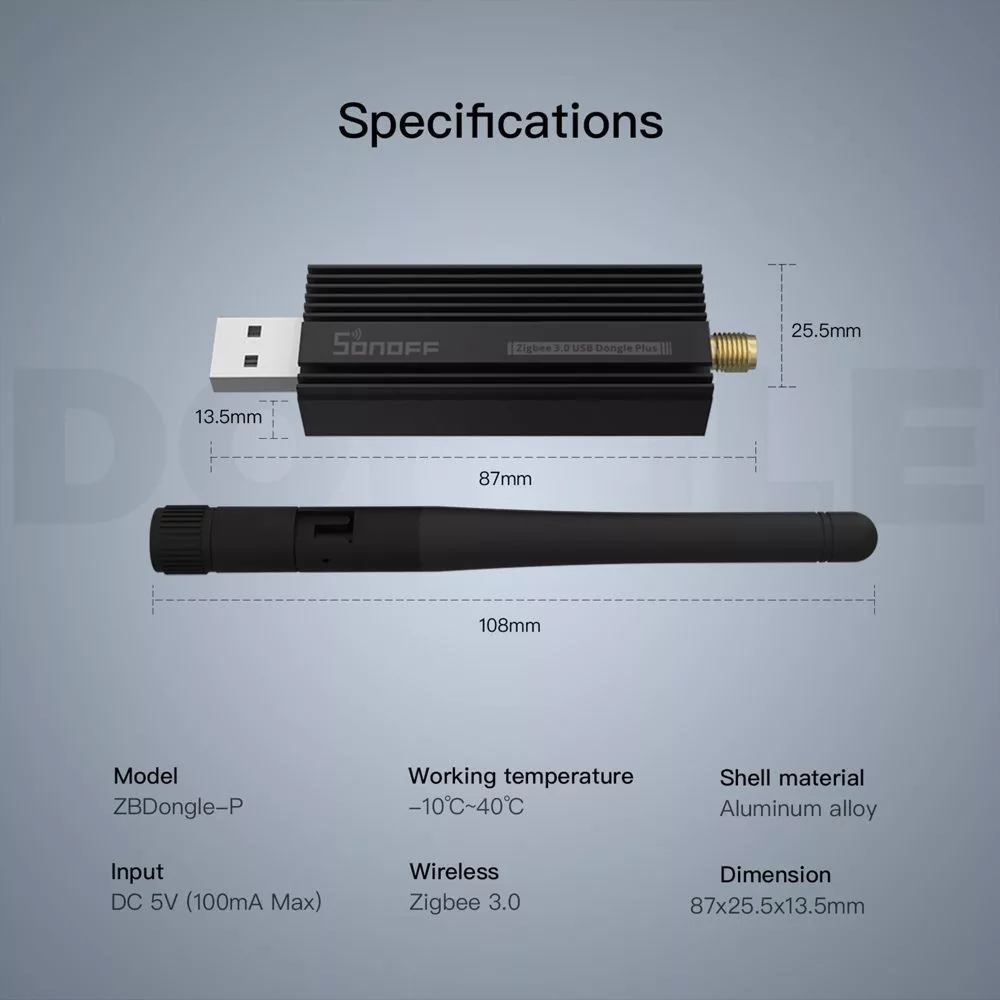

Technical specifications
Product name: SONOFF Zigbee 3.0 USB Dongle Plus
Model: ZBDongle-P
Chipset: Texas Instrument chip CC2652P
Protocol: Zigbee 3.0
Connection: USB
Power supply: 5V (USB) Antenna: External
