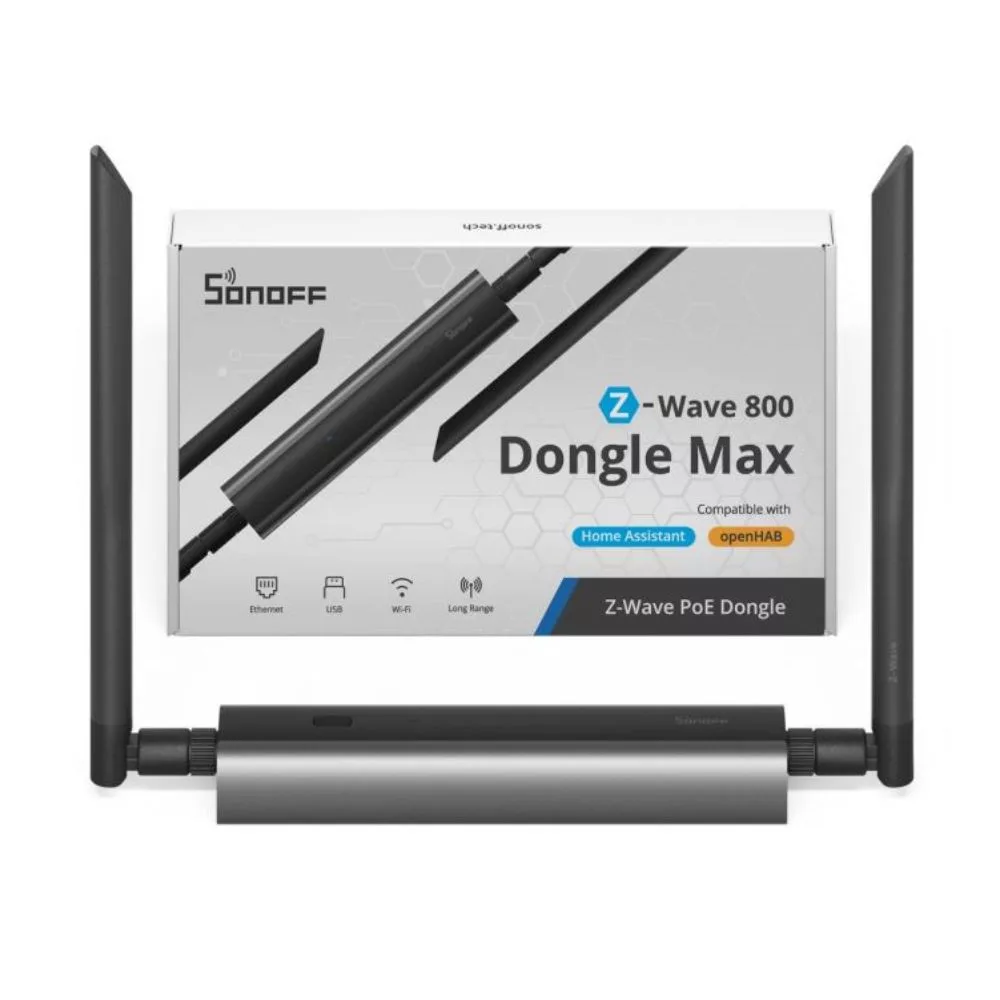

The SONOFF Z-Wave 800 Dongle Max (Dongle-MZG23) is a professional Z-Wave 800 controller adapter designed primarily for open-source smart home systems such as Home Assistant, openHAB, and Z-Wave JS environments. With this dongle, Z-Wave certified sensors, switches, relays, bulbs, locks, and other smart devices can be integrated into local, cloud-independent smart home systems.
The SONOFF Z-Wave 800 Dongle Max is based on a dual-chip architecture with ESP32D0WDR2 and EFR32ZG23, providing high performance, fast response times, and stable Z-Wave communication. The Z-Wave 800 platform supports the advanced Z-Wave S2 security protocol and Z-Wave Long Range technology, enabling safer, more stable, and longer-range control than previous-generation Z-Wave adapters.

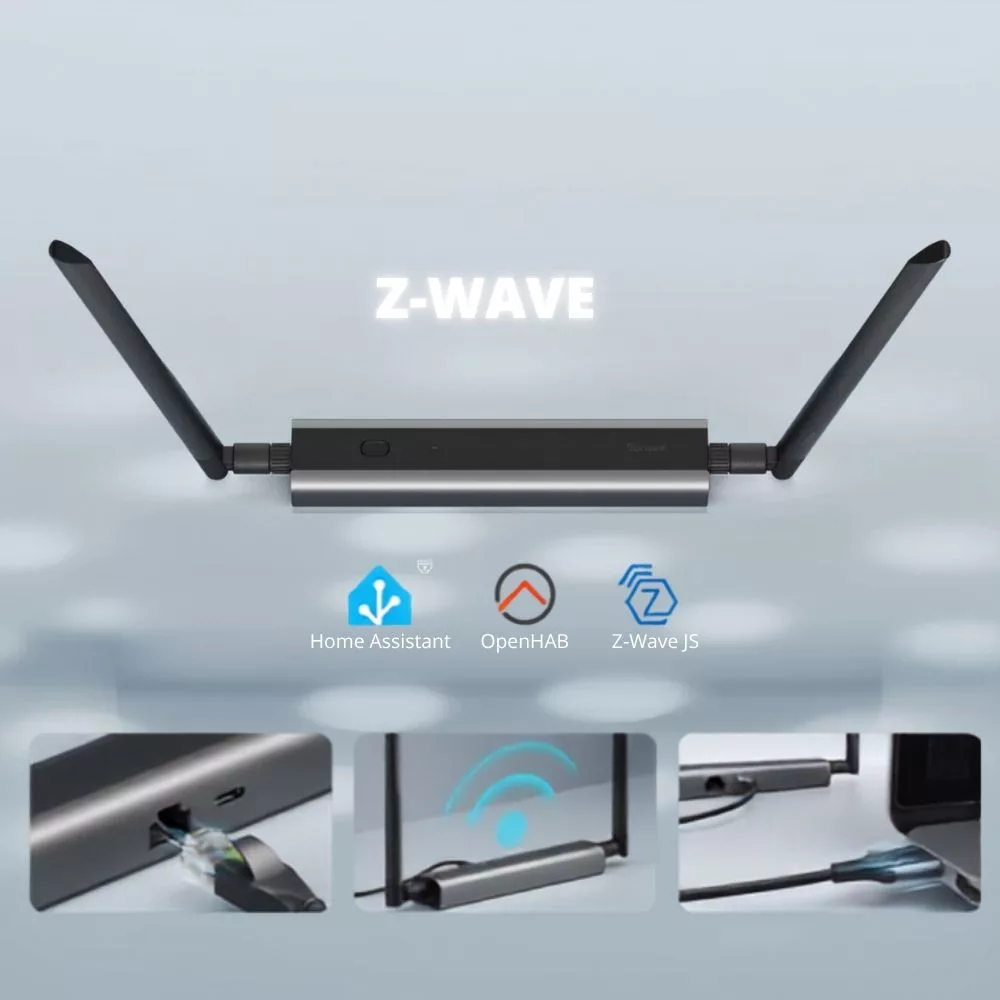

It can be used via Ethernet, with PoE power supply, Wi-Fi connection, or as a traditional USB Type-C dongle. This allows the adapter to be placed not necessarily next to the Home Assistant server or mini PC, but where Z-Wave network coverage is optimal.
With PoE, a single Ethernet cable provides both data connection and power supply. If no PoE infrastructure is available, the device can also be powered via USB-C while connecting to the network through Ethernet or Wi-Fi.
The built-in local web console provides easy access to device settings, operating modes, firmware updates, and network configuration. Through the web interface, users can configure the device from a browser without installing separate software. The system is optimized for local operation, so data transmission does not require cloud services.
The SONOFF Z-Wave 800 Dongle Max is designed for advanced users building Home Assistant, openHAB, and Z-Wave JS systems. It is an ideal choice for creating a long-term expandable Z-Wave network where local control, secure communication, flexible installation, and open integration are important.
About SONOFF
SONOFF is a globally recognized smart home brand of ITEAD, offering devices compatible with Wi-Fi, Zigbee, Matter, eWeLink Remote, and an increasing number of open platforms. Its product range includes smart relays, switches, sensors, control panels, smart plugs, energy meters, Zigbee gateways, and various smart home infrastructure devices.
SONOFF solutions are popular among eWeLink platform users, while more and more products also support open integration options such as Home Assistant, Zigbee2MQTT, ZHA, Matter, and Z-Wave JS. One of the brand’s main strengths is its excellent price-to-performance ratio, offering devices from entry-level smart homes to advanced DIY systems.
The Dongle product family is designed specifically for users who build their own local smart home hub. Alongside Zigbee and Thread adapters, the Dongle-MZG23 now offers a professional Z-Wave 800-based solution with multiple connection options.
Key Features
- Z-Wave 800 platform with EFR32ZG23 radio chip for advanced performance and stable communication
- Dual-chip architecture: ESP32D0WDR2 and EFR32ZG23 for efficient network, web, and Z-Wave operation
- Z-Wave S2 Security for encrypted communication with compatible Z-Wave devices
- Z-Wave Long Range support for extended-range point-to-point communication with compatible Z-Wave LR devices
- PoE power supply: Power and data connection through a single Ethernet cable
- Multiple connection modes: Ethernet, Wi-Fi, and USB Type-C operation
- Local web console for settings, firmware updates, and operating mode management
- Open platform compatibility: Home Assistant, openHAB, and Z-Wave JS support
- 360° adjustable antennas for flexible positioning and more stable Z-Wave reception
- Aluminum alloy housing for durability and improved heat dissipation
- MQTT support for device status and function display in Home Assistant dashboards
- VPN and Webhook functions for advanced networking and automation use cases
Smart Home Protocols and Platform Compatibility
- Z-Wave: Z-Wave 800-based controller for Z-Wave certified devices
- Z-Wave Long Range: Supported with compatible devices and correct regional settings
- Z-Wave S2 Security: Secure encrypted device communication
- Wi-Fi: IEEE 802.11 b/g/n 2.4 GHz connection
- Ethernet: RJ45 wired network connection
- USB: Type-C connection for traditional USB dongle mode
- PoE: 48V PoE power supply through the RJ45 port
- Home Assistant: Suitable for Z-Wave JS and Z-Wave JS UI integration
- openHAB: Can be used as a Z-Wave controller in openHAB systems
- MQTT: Supports Home Assistant dashboards and advanced integrations
- eWeLink-Remote Gateway: Supported for selected SONOFF ecosystem control tasks
Smart Functions
- Local cloud-free Z-Wave control
- Ethernet, Wi-Fi, or USB operating modes
- PoE power supply for clean and stable installation
- Local web console accessible from a browser
- Firmware updates through the web interface
- mDNS-based local access
- Device status and operation information monitoring
- MQTT-based integration with Home Assistant
- Webhook support for automations
- VPN function for advanced network use
- Customizable LED status indicators
- AP hotspot-based initial Wi-Fi configuration
- WPS-based Wi-Fi pairing support
- USB dongle mode for direct computer connection
- Remote placement with TCP-based Z-Wave JS UI usage
- Z-Wave network migration option from an existing adapter
Technical Specifications
- Product name: SONOFF Z-Wave 800 Dongle Max
- Model: Dongle-MZG23
- Product type: Z-Wave 800 controller adapter / PoE dongle
- Main controller chip: ESP32D0WDR2
- Z-Wave radio chip: EFR32ZG23
- Supported protocol: Z-Wave
- Security protocol: Z-Wave S2 Security
- Long Range support: Z-Wave Long Range (ZWLR)
- Wireless connection: Z-Wave, Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
- Wired connection: RJ45 Ethernet
- USB connection: USB Type-C
- Power supply via Type-C port: 5V DC, 1A
- Power supply via PoE port: 48V DC, 0.25A
- Network access: Via mDNS domain name or IP address
- Default local domain: Dongle-MZG23.local
- Web console: Yes
- Firmware update: Through web console using SONOFF-provided firmware
- MQTT support: Yes
- Webhook support: Yes
- VPN support: Yes
- eWeLink-Remote Gateway function: Yes
- Supported open platforms: Home Assistant, openHAB, Z-Wave JS
- Supported Z-Wave devices: In theory all Z-Wave certified devices with matching regional frequency
- Housing material: Aluminum, PC + ABS
- Color: Dark gray
- Operating temperature: -10°C to +60°C
- Installation: Desktop placement, mounting with double-sided adhesive, or bracket screw mounting
- Antenna: 2 external 360° adjustable antennas

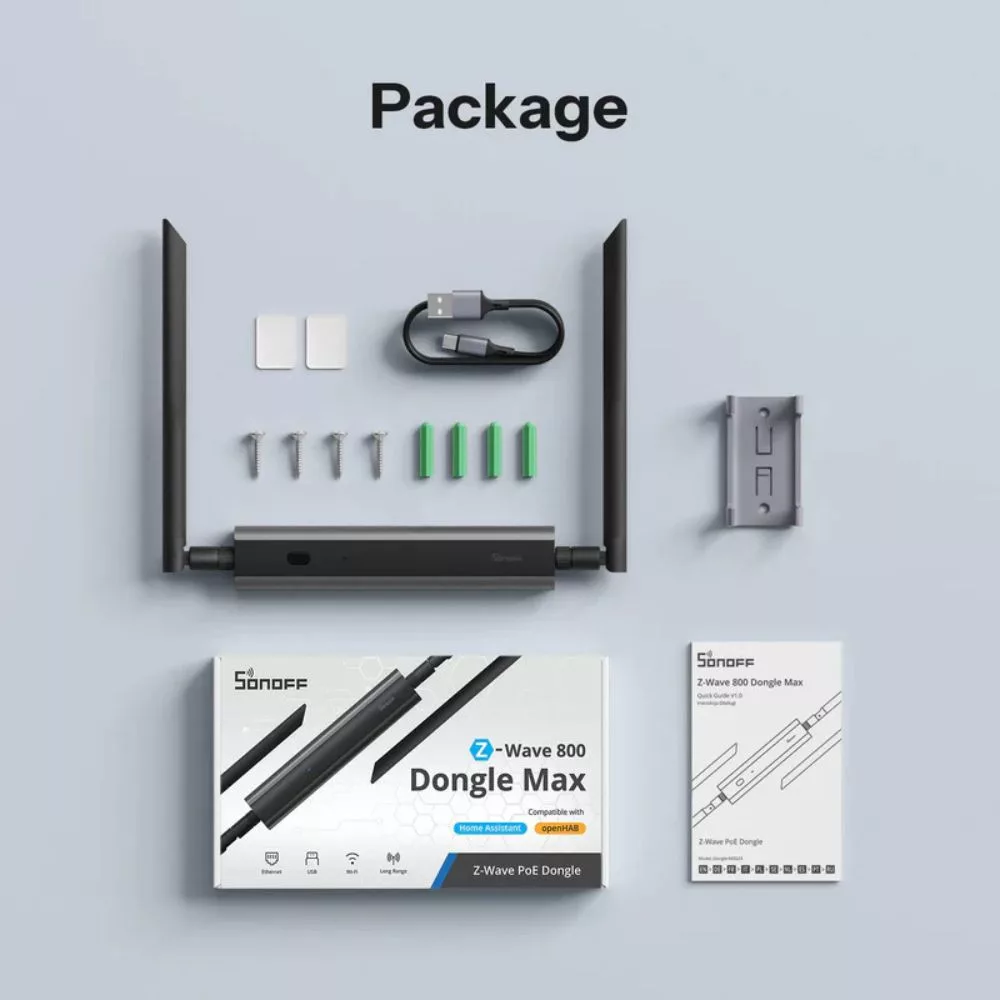

- Package contents: SONOFF Z-Wave 800 Dongle Max, 2 screw accessory packs, 1 m USB Type-C cable, mounting bracket, 2 double-sided adhesive pads, quick guide
