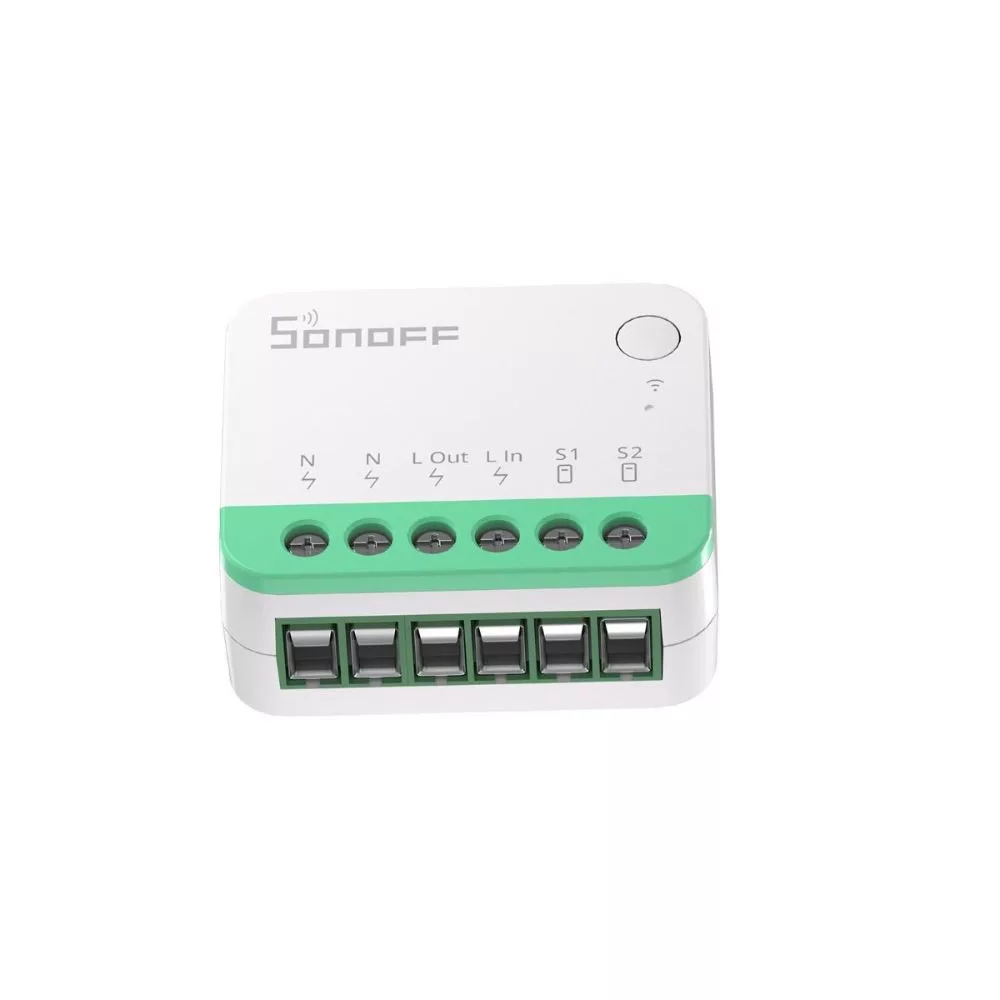

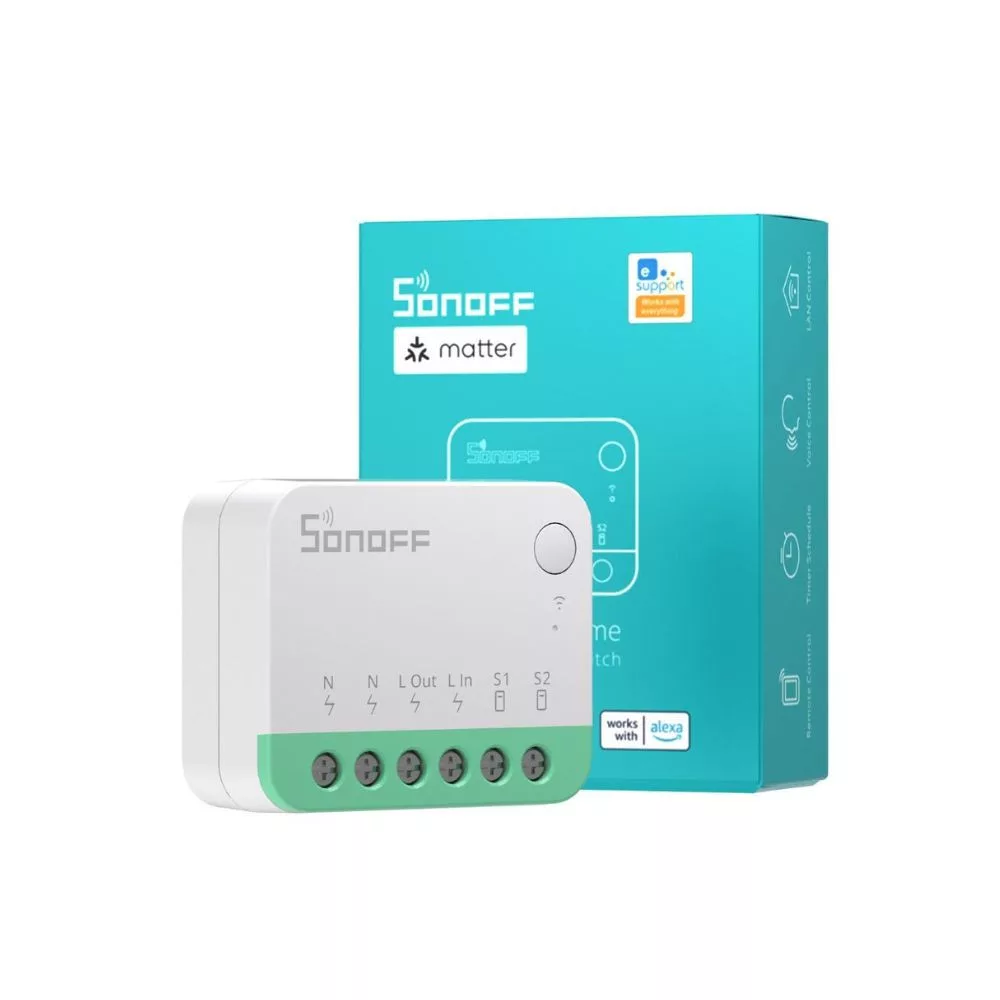

SONOFF MINI R4M Wi-Fi smart switch (relay module), Matter compatible version

Sonoff"s tiny little Sonoff Mini Extreme (MINIR4M) R4 Matter version module is one of the smallest Wi-Fi relay modules on the market, so it fits into even the smallest wall box.  It may be connected to eWeLink Cloud or to Sonoff iHost hub locally through Wi-Fi, or connected to a Matter compatible local hub.  It has switch input for a wired wall switch, so it's a perfect product to add smart control for a traditional wired switch.


All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:
Sonoff
Factory SKU ID:
MINIR4M
Supported protocols:
Wi-Fi, Bluetooth
in stock (30+ pcs)
14.15
Details

Sonoff's new MINIR4M is a Matter smart home standard compatible mini Wi-Fi smart switch, that turns traditional switches into smart switches. You may use it to remotely control and automate lights and electronic devices, and thanks to its tiny size (only 33 x 40 mm), it fits in various mounting boxes, including the smallest EU-type/86 type/120 type mounting boxes.

Sonoff MINI R4M, also called as Sonoff Mini Extreme R4 Matter version, supports external switch control and easily connects to the momentary switch, door exit switch, SPDT switch, latching switch, and even dry contact sensors, just as previous version Sonoff Mini R2 or Mini R4 product version.

As a new feature, MINI R4M also has "detach relay" mode, which means the states of external switches and relay are separated, so operating the external switch button won't affect the relay state. Even then, you may use the external switch to trigger a smart scene and operate another device, group of devices or automation.

Mini R4M is the Matter compatible product version with support for Bluetooth pairing. It can work with eWeLink app (just as MINIR4 product version) or can be connected to a local Matter compatible hub and work in local home automation system, without cloud connection. Thanks to the support of the Matter standard, it is compatible with Google Home, Alexa  and Apple Home.


Note: MINI R4M (as opposed to MINI R4) does NOT support “eWeLink-Remote“, a Sonoff's proprietary Bluetooth protocol for local remote control, Bluetooth is only used in the Matter version for APP pairing.

Just as all other eWeLink relay modules, it supports scedules ON/OFF, power-on-state (ON / OFF / LAST STATUS / REVERSE STATUS), smart scenes (automations) and inching (AUTO OFF and AUTO ON) features. Also, to protect the electric network from overload, a power-on delay can be set for after power outage for devices.

The new Sonoff Mini Extreme R4 module is 40% smaller than MINI R2 and 60% smaller than Mini R3 product version.

Sonoff R4 Extreme supports voice control from Google Assistant (Google Home) and Amazon Alexa voice assistants.

Sonoff R4 Wi-Fi relay is compatible with Home Assistant, IFTTT (needs eWeLink Advanced subscription) and SmartThings system, as well as, Apple Home.


Product features:

【Super Tiny Size】Its compact size allows it to be installed in various mounting boxes, including the smallest European standard.
【External Switch Control】Easily connect to the momentary switch, door exit switch, SPDT switch, latching switch, and even dry contact sensors.
【Detach Relay Mode】MINIR4M has “detach relay” mode, which means the states of external switches and relay are separated, so operating the external switch button won’t affect the relay state.
【Matter compatible】MINIR4M is the Matter standard compatible product version, which can be used together with a Matter smart home hub.
【Safe & Reliable】TÜV, CE, and FCC certifications ensure a safer and more reliable product.



Info
Product type:
Matter compatible smart Wi-Fi relay module
Colour:
white
Device power supply:
100V-240V AC
Wiring:
230V AC (live and neutral)
DIN rail compatible:
no
Operating temperature range:
-10℃ – 40℃
Operating humidity range:
5% - 95% RH
Embedded relay:
yes
Dimmer feature:
no
Power consumption metering:
no
Number of gangs / circuits:
1
Rated voltage (output):
100V-240V AC
Rated current (output):
2400W (10A)
Physical on/off button on device:
yes
External switch supported:
supports door switch, rocker switch, momentary switch and SPDT switches
2-way or 3-way switching:
yes, 2-way switching supported, with rocker and momentary switches.
Momentary switching (inching):
yes
Overheat protection:
no
Wi-Fi standards:
802.11 b/g/n (2.4GHz)
Zigbee:
no
Z-Wave:
no
RF transmitter / receiver:
no
Bluetooth:
Bluetooth pairing with phone
Controllable from internet:
yes
Manufacturer smartphone app:
works with Apple Home, Google Home and Alexa, yes, free app: eWeLink (Android, iOS)
Voice control:
Amazon Alexa and Google Assistant compatible
Cloud mode:
can be used in local mode with a Matter hub, default mode is connecting to the eWeLink cloud
LAN mode:
yes, if connected to a local Matter hub
REST API support:
no
MQTT support:
no
Supported integrations:
Amazon Echo, Echo Dot, Amazon Tap, Google Home, Google Nest, IFTTT (IFTTT integration with subscription, Premium feature), REST API, Apple Home, Google Home, Alexa compatible
Schedulers, timers:
yes, 8 timings on the device in offline mode, (loop control supported), any further timing can be run from the cloud in online mode
Notification functions:
eWeLink app notification on smartphone
History:
yes: on/off history in the app
Weight:
36 g/pcs
