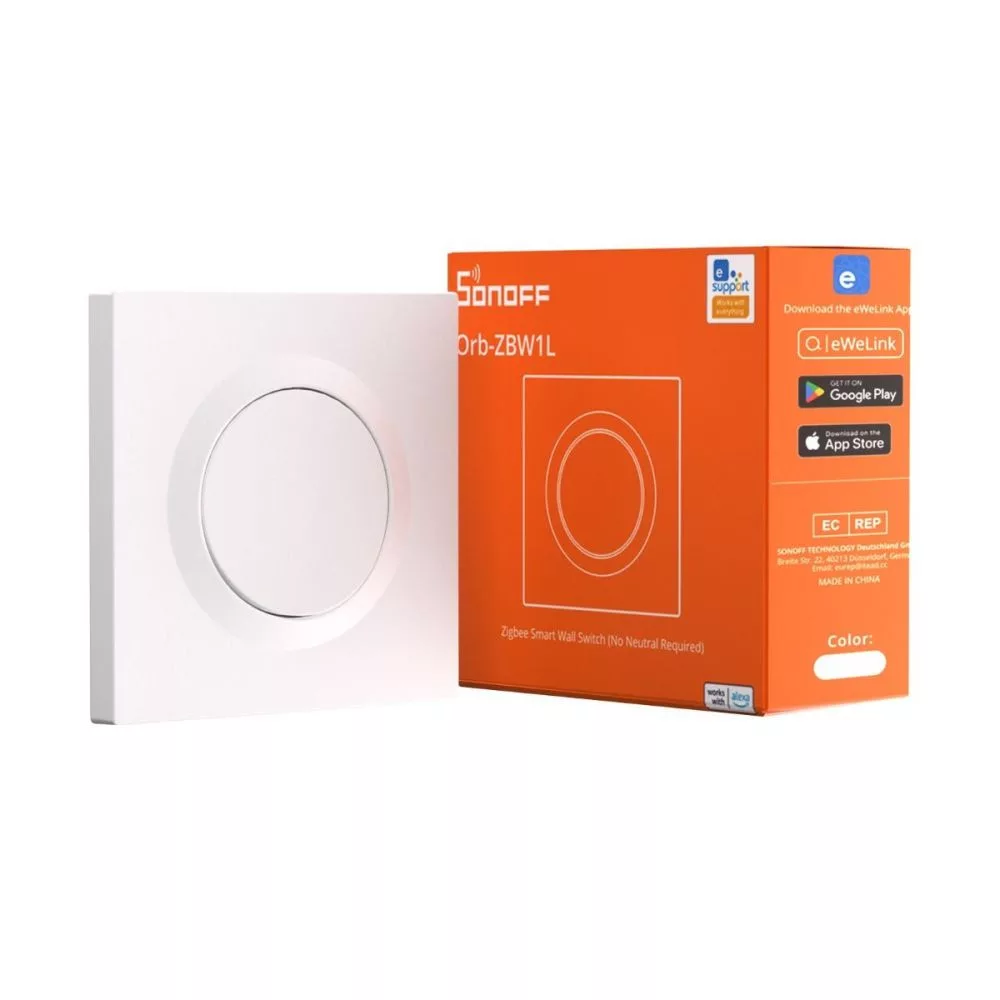

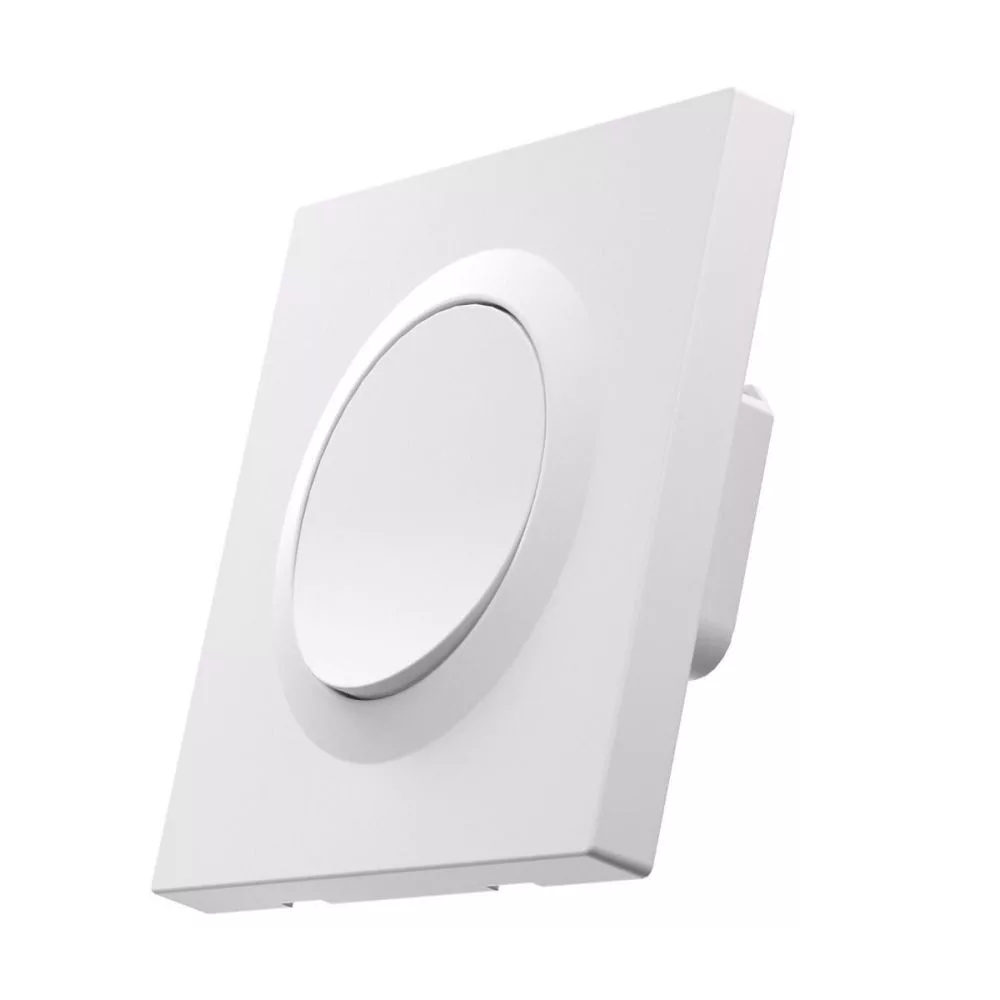

The SONOFF Orb-ZBW1L is the Fusion series Zigbee 3.0 no-neutral smart wall switch, with the ZBMini-L2 inside taking care of operation. It handles up to 6 A load and allows setting schedules, countdowns, and smart scenes. It is specifically optimized for low-power LED loads (min. 3 W), offering an easy retrofit solution for older wall boxes without a flicker-suppression module. The switch can be used both within the SONOFF ecosystem and on open platforms: Zigbee pairing is simple, and it is compatible with Home Assistant (ZHA/Zigbee2MQTT). The external wall switch (on the S1/S2 inputs) preserves familiar manual control while automation via Zigbee also works.
The ZBMini-L2 is compatible, among others, with Sonoff Zigbee–Wi-Fi gateways, the Sonoff Zigbee Bridge and Sonoff Zigbee Bridge Pro, as well as the SmartWise Zigbee Bridge Pro (also compatible with the eWeLink app), which can connect to Ethernet. It is also supported by the Sonoff NSPanel Pro hub. If the module is connected to an eWeLink Zigbee gateway, the device can then be controlled using the familiar eWeLink platform and eWeLink app. Among the usual eWeLink features, the current ON/OFF state, manual ON/OFF switching, and timers (schedule, countdown timer, loop control) are available, but the inching (momentary) function is not available. The small relay module is compatible with the Aeotec SmartThings hub, in which case it can be controlled using the SmartThings APP available for iOS and Android. Controlled on/off switching, scheduled on/off, and many other features are available in the SmartThings app. It also works with certain Amazon Alexa Zigbee gateways and other standard Zigbee 3.0 hubs. The ZBMINI-L2 version is the no-neutral variant of the relay, which operates only with a phase wire. The ZBMINI-L2 relay should be installed behind the wall switch and is suitable for switching lamps with a minimum power of 3 W, with a maximum rating of 6 A. No flicker-suppression module is required for operation.
About the SONOFF brand
SONOFF (ITEAD) is one of the best-known players in the DIY smart home community. Its product range includes Wi-Fi and Zigbee relays, switches, sensors, and gateways, offering good value for money and flexible integration — including with eWeLink, Home Assistant, and other open systems.
Key product features

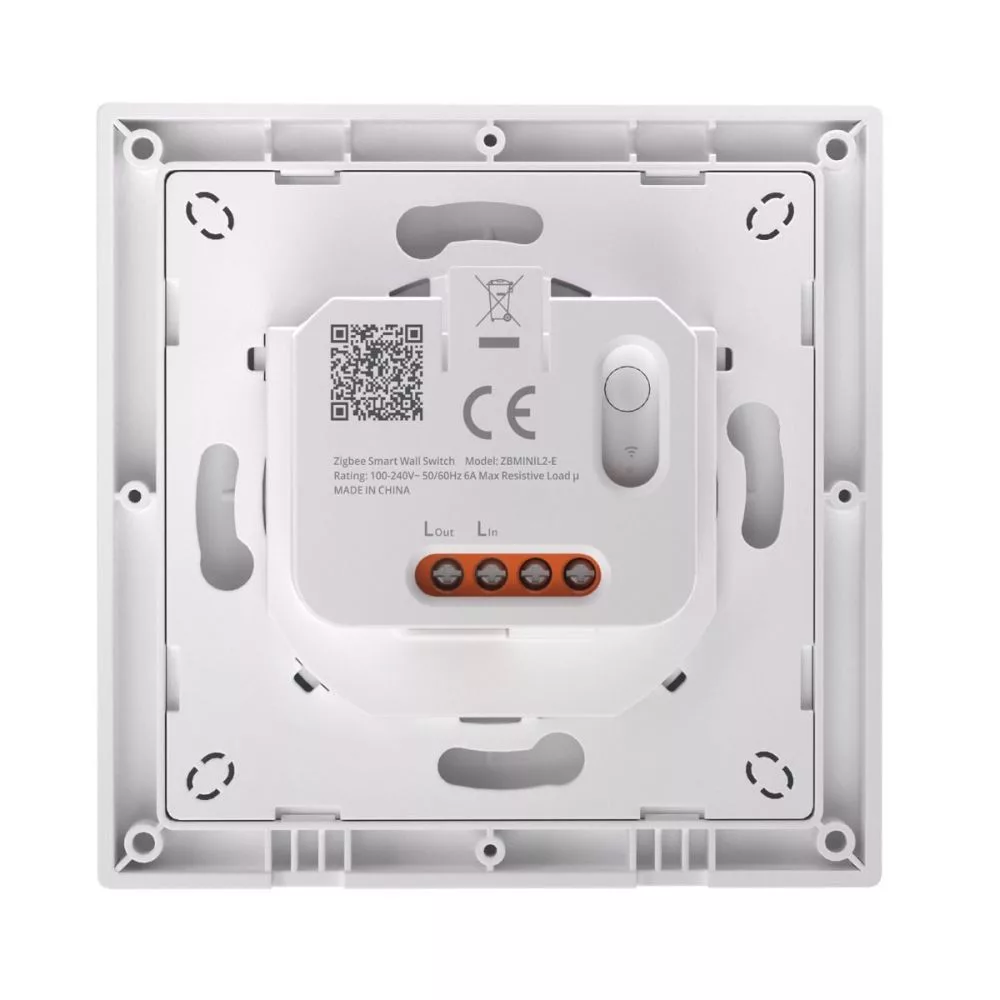

- No-neutral installation: does not require a neutral wire, ideal for retrofitting older properties.
- LED-friendly design: stable operation from 3 W without an external anti-flicker module; max LED load 150 W @ 100 V or 300 W @ 240 V.
- Smart scenes and scheduling: supports countdown, scheduling, and cyclic (loop) timers.
- Home Assistant compatibility: works with ZHA and Zigbee2MQTT integrations as well.

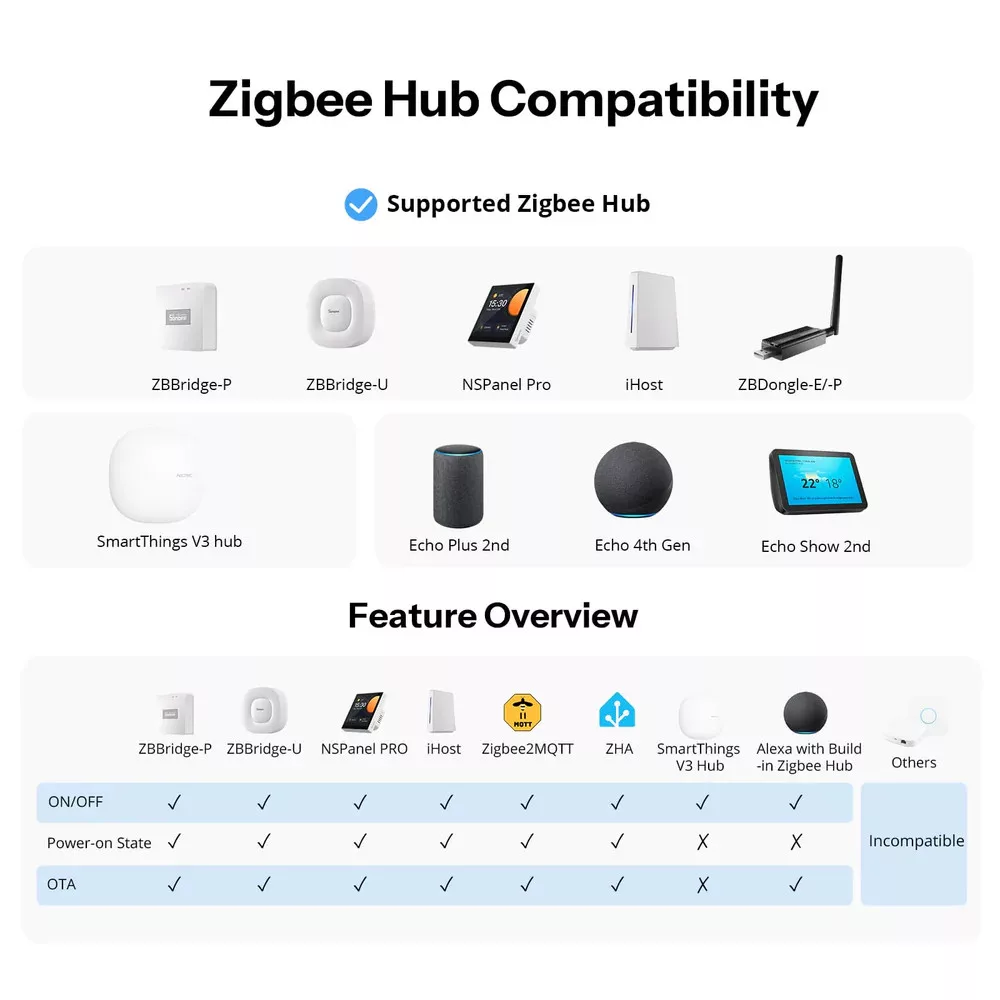

Smart home protocols and platform compatibility
- Protocol: Zigbee 3.0.
- Compatible gateways/platforms: Home Assistant (ZHA, Zigbee2MQTT), SONOFF ZBDongle-P/-E, ZBBridge-P/-U, NSPanel Pro, iHost.
- eWeLink ecosystem: with cloud connection, Alexa/Google Home/IFTTT/SmartThings integrations are available.
- Zigbee end device (does not operate as a router).
Smart features
- On/Off and status: basic switching function and status query.
- Schedules and countdown: automatic action execution at specified times/after durations.
- Loop Timer: cyclic execution of predefined actions.
- Power-on State: define state after a power outage (On/Off/Last State).
- Scenes/automation: trigger other Zigbee devices based on the switch state.
- History: view the history of status changes.
Technical specifications
- Product name / series: Orb-ZBW1L / Fusion series
- Type: Zigbee smart wall switch (no neutral)
- Model: ZBMINIL2-E
- MCU / radio: EFR32MG22
- Power supply: 100–240 V~ 50/60 Hz
- Rated load: 6 A max (resistive load); Max. LED: 150 W @ 100 V, 300 W @ 240 V
- Minimum load: 3 W
- Wireless connection: Zigbee 3.0
- Dimensions / weight: 86 × 86 × 35.8 mm; 80 g
- Color / enclosure: white; PC (plastic)
- Recommended wire: 16–14 AWG solid/stranded copper
- Operating environment: indoor; −10…+40 °C; 5–95% RH (non-condensing)
- Certifications: CE / RoHS
- Note: does not support an external anti-flicker module; does not operate as a Zigbee router.
