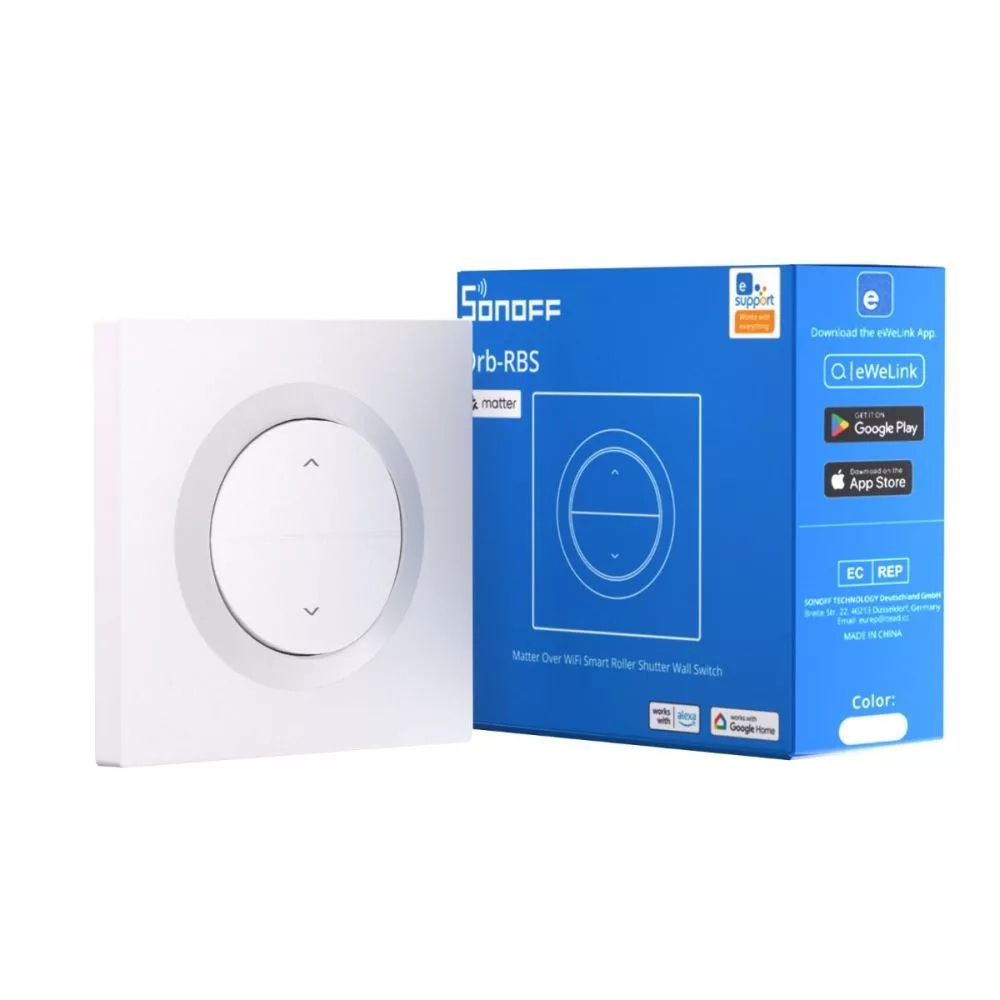

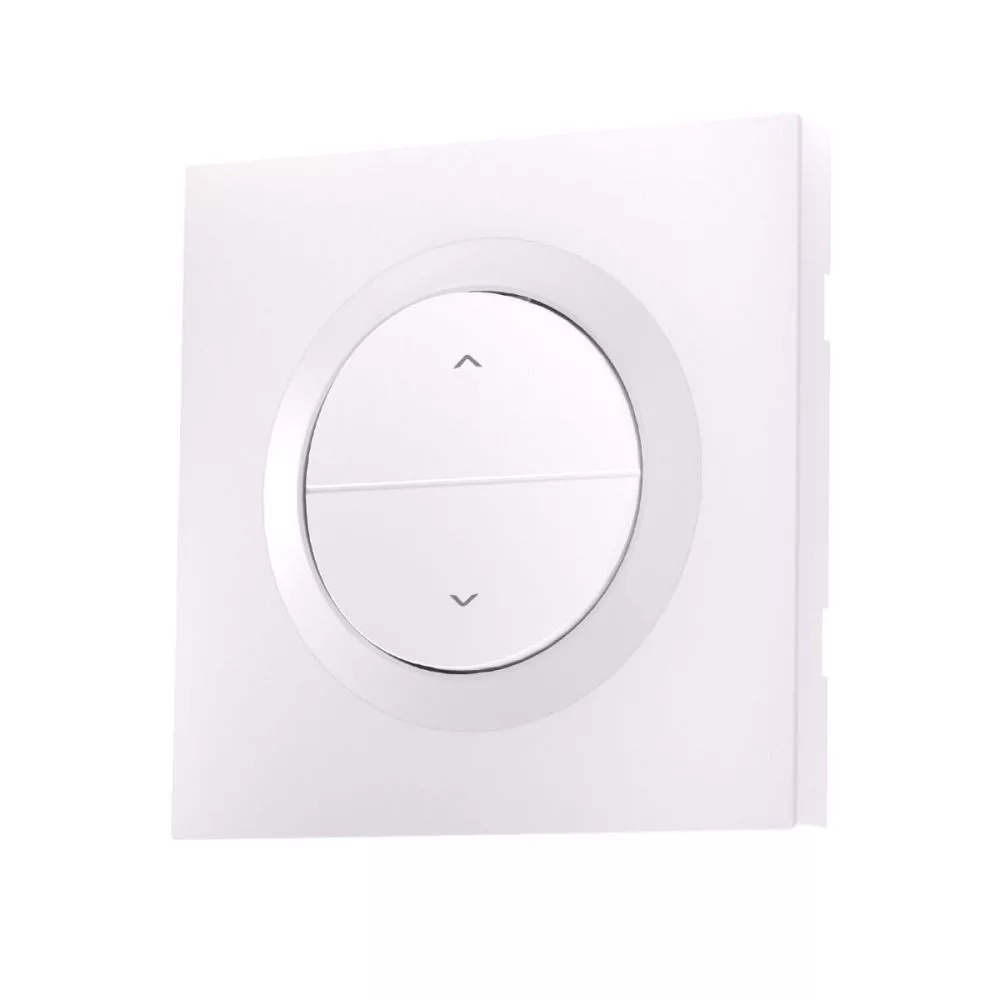

The SONOFF Orb-RBS is the Fusion series Matter over Wi-Fi smart wall roller shutter/shade switch, with the well-known MINI-RBS working inside. It enables precise, percentage-based position control of motorized shutters, venetian blinds, and curtains, timed open/close, and easy motor direction reversal (without rewiring). This allows you to achieve more comfortable, energy-efficient, and uniformly controllable shading with a single switch.
Thanks to Matter support, the Orb-RBS offers broad platform compatibility: it connects directly to Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant. Local (LAN) control and physical buttons ensure reliable operation even in case of internet outages.
The device is a single-circuit (1-gang) design, connects to a 2.4 GHz Wi-Fi network, and requires a neutral wire for wiring. It can be set up quickly and blends aesthetically with existing fittings using Fusion series frames.
The mini module supporting Wi-Fi + Bluetooth protocols is not only compatible with the eWeLink app common to Sonoff devices but, thanks to the Matter smart home standard, also works seamlessly with platforms such as Apple HomeKit, Google Home, Alexa, and Home Assistant, making it practically integrable into any smart home system. When used with the eWeLink application and cloud platform, Sonoff’s wireless R5 switches (available in white and gray) and the S-MATE2 wireless Bluetooth module can be paired with the eWeLink-Remote (Bluetooth) gateway inside the module. This means not only wired push-button wall switches can be connected, but it can also be controlled from wireless switches.
About the SONOFF brand
SONOFF (ITEAD) is one of the best-known brands in the DIY smart home community. Their portfolio includes Wi-Fi and Zigbee relays, switches, sensors, and gateways that offer flexible integration at a favorable price/performance ratio in ecosystems including eWeLink, Apple Home, Google Home, Amazon Alexa, SmartThings, and Home Assistant.
Key product features
- Precise percentage adjustment: accurately set the opening position (e.g., 30% / 70%) for comfort and energy savings.
- Timed operation: automatic opening/closing of shutters/curtains aligned with your daily routine.
- One-click direction reversal: reverse the motor’s rotation without additional wiring.
- Matter compatibility: unified, brand-agnostic control across multiple platforms.
- Compatible frames: with SONOFF Fusion Series switch frames (Orb-2/3 Gang, sold separately) for vertical or horizontal installation.
Smart home protocols and platform compatibility
- Supported protocol: Matter over Wi-Fi (2.4 GHz, IEEE 802.11 b/g/n).
- Ecosystems: Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant (feature set may vary by platform).
- Factory pairing: from the eWeLink app or directly from a Matter-capable application.
- Local operation: LAN control even without internet; physical buttons are fully functional in offline mode.
- Voice control: Siri / Google Assistant / Alexa via the respective platform.
Smart features
- Position control: up/down movement, stop, favorite positions, and percentage control.
- Schedules: time-based open/close aligned to day/night profiles.
- Scenes and automation: eWeLink “Smart Scene” and Matter-based rules; works with other SONOFF devices.
- Recovery logic: during internet outages, local control and the physical switch immediately take over.

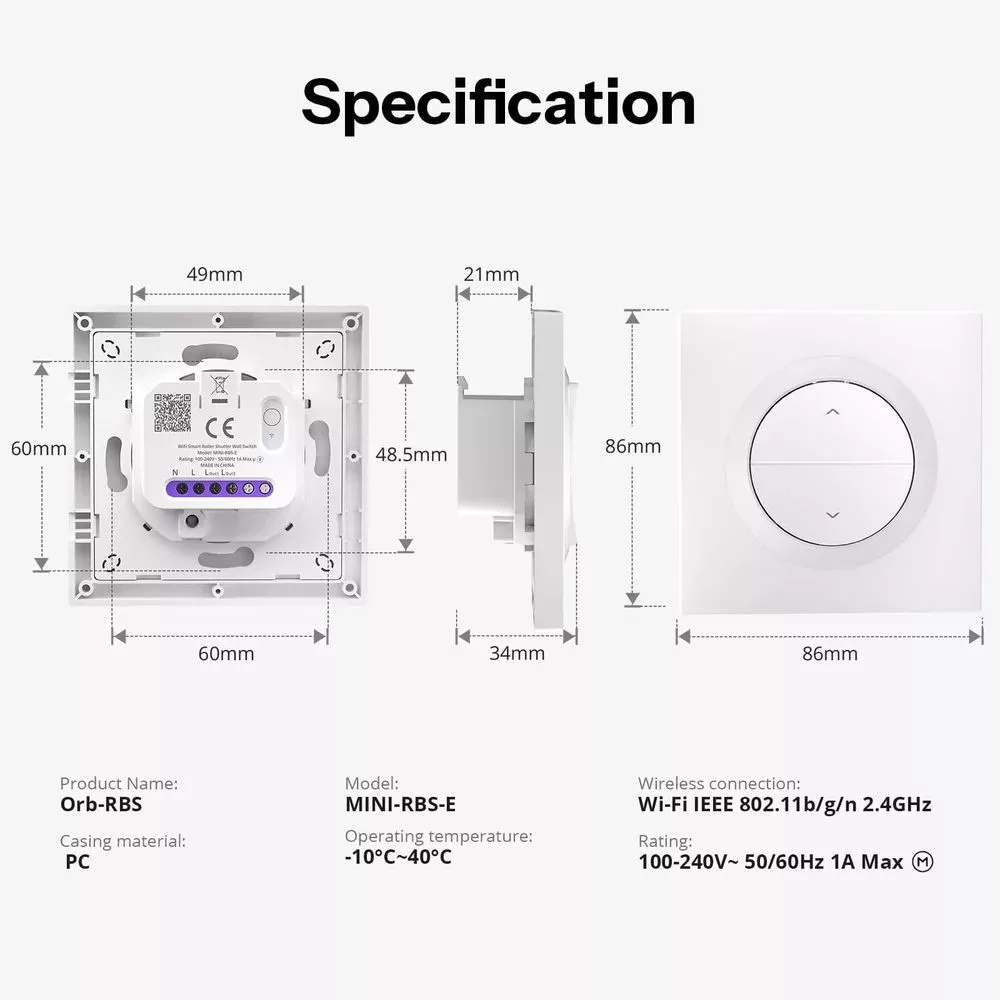

Technical specifications
- Product: SONOFF Orb-RBS (Fusion Series smart wall roller shutter switch)
- Form factor: 1-gang (single-circuit) flush-mount wall switch
- Network/protocol: Wi-Fi 2.4 GHz (802.11 b/g/n), Matter over Wi-Fi
- Power supply: 100–240 V~ 50/60 Hz

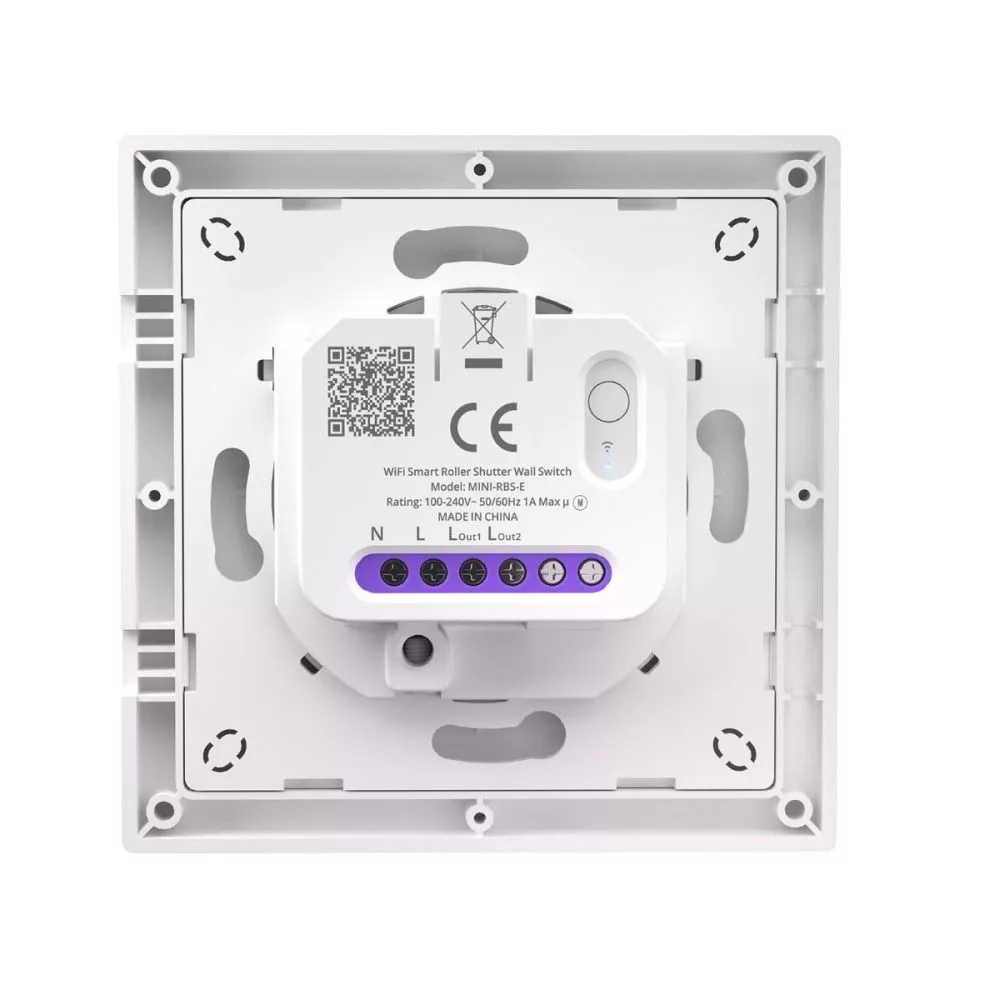

- Wiring: neutral wire required; up/down control for AC roller shutter motors
- Functions: percentage position control, schedules, direction reversal, scenes/automations, LAN control
- Compatibility: Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant (Matter)
- Frame compatibility: SONOFF Fusion Switch Frames (Orb-2/3 Gang – sold separately)
