The SONOFF Orb-MW1 is the Fusion series Matter over Wi-Fi smart wall switch that augments a traditional wall switch with modern, multi-platform control. Operation is handled by a well-known module, the Sonoff Mini Extreme R4 Matter, which can be easily replaced in case of failure. Thanks to Matter compatibility, a single device can be integrated into Apple Home, Google Home, Amazon Alexa, SmartThings, and other systems, enabling unified, brand-agnostic automation.Detach Relay mode ensures that “smart” light sources do not lose power and connectivity even when the wall switch is turned off — so the light remains controllable via automations or voice. In case of an internet outage, local (LAN) control and the physical switch ensure continuous usability.The Orb-MW1 is a single-circuit (1-gang) model, operates from a 100–240 V~ mains supply, and has a rated load of 10 A (≈2400 W @ 240 V). A neutral wire is required for installation. It is an ideal choice for smartening existing lighting circuits, with fast, practically plug-and-play setup.
Similar to the Sonoff Mini R4, the compact Mini R4M Wi-Fi module also features a potential-free (dry contact) switch input, making it suitable for smart retrofits when installed behind traditional wall switches in the wall box. It can work with momentary (push-button) and two-position switches, and it can be wired for two-way (staircase/three-way) switching. (A potential-free PIR motion sensor or other sensor can also be connected to its switch input.)
Among Sonoff relays for the first time, its switch input can be software-decoupled from the output, so the use of the hard-wired wall switch connected to the module can even be disabled. However, for a switch decoupled from the output you can set up a smart control/scene, allowing you to control other smart devices with it.
About the SONOFF brand
SONOFF (ITEAD) is one of the best-known players in the DIY smart home community. Its portfolio includes Wi-Fi and Zigbee relays, switches, sensors, and gateways that offer flexible integration at a favorable price/performance ratio — among others with eWeLink, Apple Home, Google Home, Amazon Alexa, and SmartThings environments.
Key product features
- Matter compatibility: With support for the Matter standard, the Orb-MW1 integrates seamlessly with Apple Home, Amazon Alexa, Google Home, SmartThings, etc. It allows you to work with Matter devices from other manufacturers and build a unified smart home environment.
- Detach Relay mode: By enabling this function, you can still remotely control your smart devices through “Smart Scenes” even when the physical switch is turned off. If the device goes offline, the physical switch immediately regains full control.
- LAN control: Can be used with local (LAN) control even without an internet connection.
- Smart Scene: Works seamlessly with SONOFF sensors, switches, and other devices, creating a fully connected smart ecosystem with a unified user experience.
- Compatible accessories: The Orb-MW1 is compatible with SONOFF Fusion series switch frames (Orb-2/3 Gang, sold separately), allowing flexible vertical or horizontal installation.
Smart home protocols and platform compatibility
- Supported protocol: Matter over Wi-Fi (2.4 GHz, IEEE 802.11 b/g/n).
- Native platforms: eWeLink application (quick pairing), and any Matter-compatible app/primary hub.
- Ecosystems: Apple Home, Google Home, Amazon Alexa, Samsung SmartThings (features may vary by platform).
- Local operation: LAN control even without internet; the physical switch remains fully functional in offline mode.
- Voice control: Siri / Google Assistant / Alexa via the respective platform.
Smart features
- Timers and countdown: automatic on/off according to configured schedules.
- Power-On State: define the power-on state (e.g., on/off/last state).
- Scenes and automations: eWeLink “Smart Scene” and Matter-based automations; works with SONOFF sensors and switches.
- Detach Relay usage: continuous power to smart bulbs/fixtures to preserve connectivity and voice control.
- Two pairing methods: add from the eWeLink app or directly from a Matter-capable application.
Technical specifications
- Product name / series: Orb-MW1 / Fusion Series
- Model: MINIR4M-E
- MCU: ESP32-C3FN4
- Supply voltage / mains: 100–240 V~ 50/60 Hz
- Rated load: 10 A max. (≈2400 W @ 240 V), for resistive loads
- Wireless connection: Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n), Matter over Wi-Fi

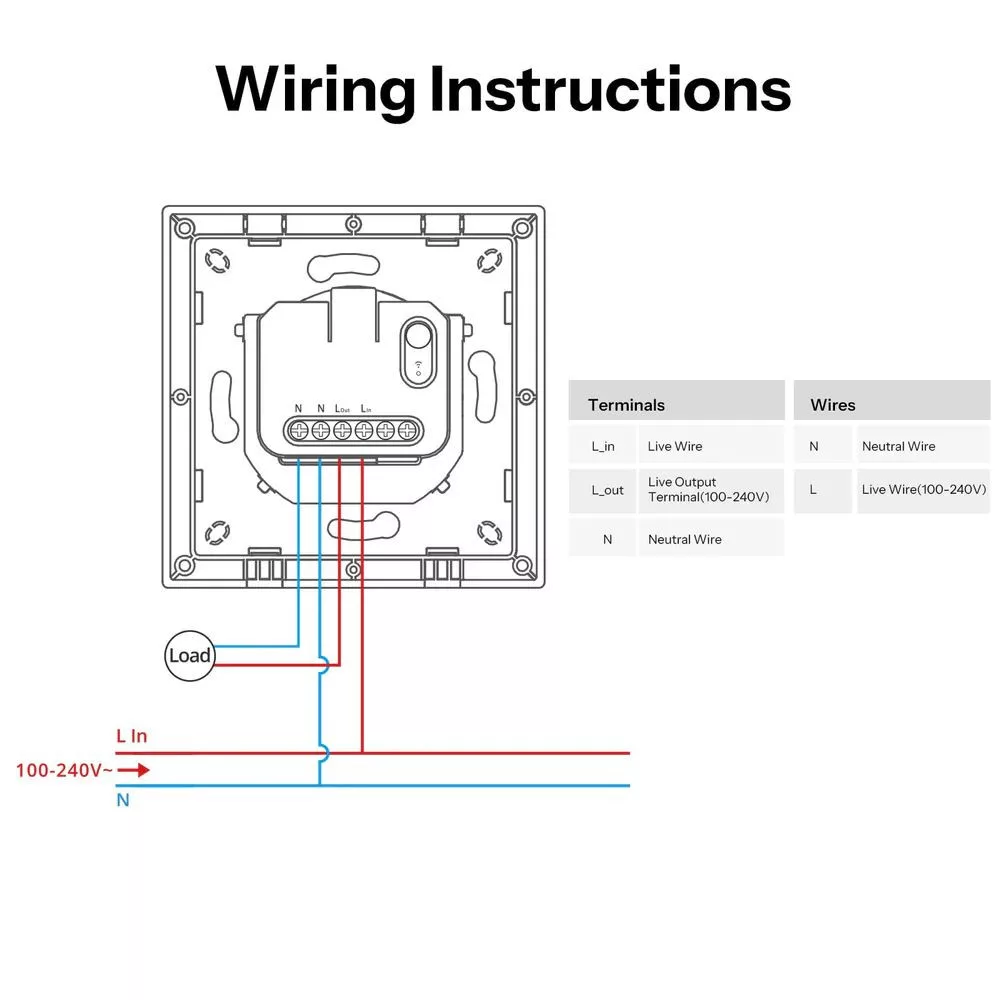

- Neutral wire: required for installation
- Dimensions: 86 × 86 × 34 mm
- Weight: ~84 g
- Color / material: white / PC (plastic) housing
- Recommended wiring: 16–14 AWG solid or stranded copper conductor
- Certifications: CE / RoHS
- Features: Detach Relay, LAN Control, timers, countdown, Power-On State, Smart Scene
- Accessory compatibility: SONOFF Fusion Switch Frames (Orb-2/3 Gang – sold separately)
