The SMHUB is a professional, Linux-based smart home controller by SMLIGHT, designed to provide stable and full-featured operation for locally hosted control software and automation platforms – all within a single, compact hub. The goal is to enable automation applications (e.g., Zigbee2MQTT, Node-RED, MQTT broker), manage multiple radio networks, and ensure cloud-independent local control from one device.
Unlike traditional gateways that support only one radio and protocol, the SMHUB includes multiple radio modules (Zigbee, Thread, Bluetooth, Wi-Fi) and is optionally expandable with further modules (Z-Wave, 4G/LTE, PoE). It can also run automation apps directly on the hub — no separate server or Raspberry Pi required.
This makes it the ideal choice for advanced users, integrators, and professionals seeking a reliable, modular, high-performance, and future-proof central hub. The SMHUB can even replace a full smart home system while remaining compatible with the most popular platforms and open-source tools.
Brand Introduction – SMLIGHT
SMLIGHT is an innovative brand developing smart home devices with a focus on multi-protocol communication (Zigbee, Thread, Wi-Fi, Bluetooth) and open, local control. Their product range includes gateways, multi-radio adapters, and now full-featured hubs compatible with a wide array of platforms and software such as Home Assistant, Node-RED, or MQTT-based systems. The brand aims to provide seamless integration and cloud-independent automation.
Important Information – Early Adopter Version
The SMHUB Early Adopter Version is the first public release of the new multi-radio smart home hub. This is reflected in the discounted price available for early customers.
Pre-installed and Ready to Use
Zigbee2MQTT (with CC2674P10 or EFR32MG24 radio)
Mosquitto MQTT broker
Matterbridge
Node-RED

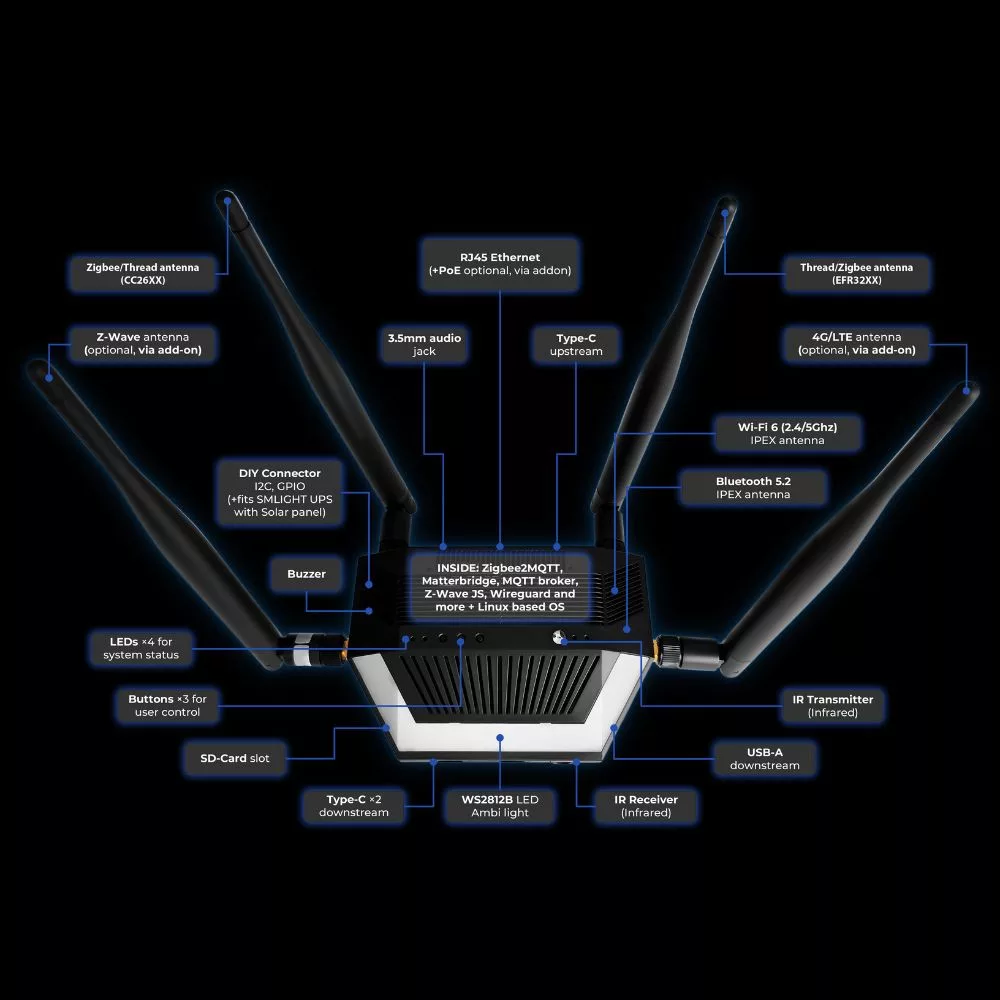

Already Working Hardware Features
CC26XX radio
EFR32MGXX radio
100Mb Ethernet port
12× WS2812B RGB LEDs (for Ambilight effects)
Built-in eMMC storage
PoE module support (optional)
Z-Wave module support (optional)
Built-in Hardware Under Development
Wi-Fi 6 (2.4/5GHz) and Bluetooth – command-line access working, UI integration in progress
Infrared receiver and transmitter
USB ports: 2× USB-C (1× power/host, 1× output), 1× USB-A
microSD card slot
3.5 mm audio output jack
4× status LEDs
3× physical buttons
Expansion headers: UART, I²C, SPI, DIY pinouts
Updates and Development Roadmap
New hardware features will become available progressively through SMHUB-OS updates.
New features are introduced continuously, but not guaranteed.
Early Adopter customers get first access to updates, developments, and discounted pricing.
Key Product Features
- Linux-based smart home hub – Full local control and automation directly on the hub.
- Multi-radio support – Integrated Zigbee, Thread, Bluetooth, and Wi-Fi.

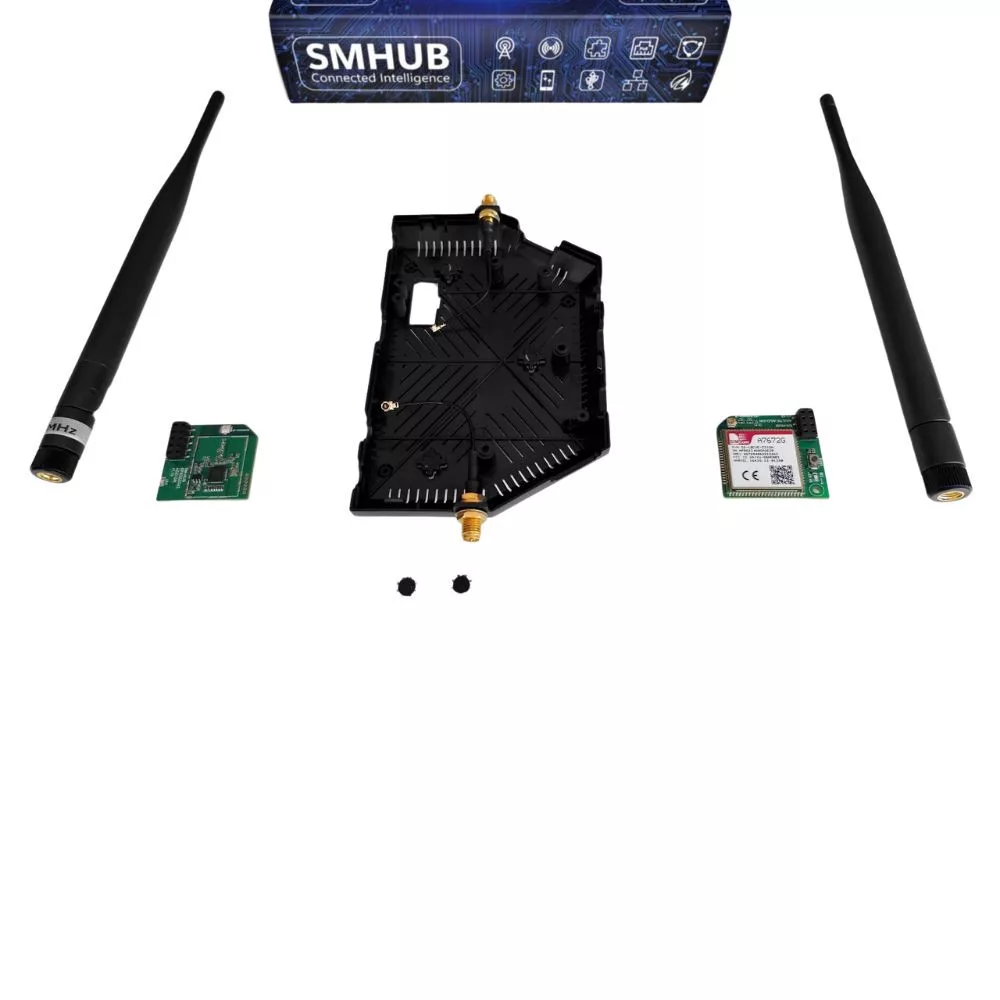

- Modular expandability – Optional Z-Wave, 4G/LTE, and PoE via USB/UART/SPI.
- Local applications – Zigbee2MQTT, Node-RED, MQTT broker, Matterbridge, WireGuard, etc., can run directly on the hub.
- Modes – Use as standalone hub, Matter bridge, or radio coordinator for Home Assistant or other systems.
- Communication – Stable network access via Ethernet and Wi-Fi.
- Peripherals – USB ports, SD/eMMC storage, RGB LEDs, buttons, IR transmitter/receiver, audio output.
- Web interface – Graphical control and configuration from any browser.
Smart Home Protocols & Platform Compatibility
- Local protocols – Zigbee, Thread, Bluetooth LE, Wi-Fi.
- Expandable – Z-Wave (700/800 series), 4G/LTE, PoE options.
- Local automation – Zigbee2MQTT, Node-RED, MQTT broker, Matterbridge directly on the hub.
- Compatible with open-source platforms – Home Assistant, OpenHAB, HomeSeer, or any MQTT/REST-based system.
- Matter integration – Use Matterbridge to expose Zigbee devices to Google Home, Apple Home, or other Matter-compatible platforms.
- Remote access – Secure access with WireGuard VPN support.
Smart Features
- Run local automations directly on the hub (e.g., Node-RED flows).
- Integrate Zigbee devices directly with Zigbee2MQTT.
- Use as Matter bridge for Google Home or Apple Home.
- Built-in MQTT broker for local IoT communication.
- Expansion options for Z-Wave and mobile (4G/LTE) connectivity.
- Web-based configuration and monitoring from any browser.
- SSH access for advanced users (basic Linux control).
Technical Specifications
- Operating system: Linux-based SMHUB-OS
- Processor: Dual-core (1 GHz + 700 MHz RISC-V)
- Memory: 512 MB RAM
- Storage: Built-in eMMC + microSD expansion
- Wireless radios: Zigbee, Thread, Wi-Fi (2.4/5 GHz), Bluetooth LE
- Ethernet: 1× RJ45 (10/100 Mbps)
- USB ports: 2× USB-C, 1× USB-A
- Expansion interfaces: UART, SPI, I²C, DIY pinouts
- Peripherals: RGB LED, IR transmitter/receiver, buzzer, 3.5 mm audio output
- Power supply: USB-C, optional PoE or UPS module
- Operating modes: Standalone Hub, Matter bridge, Remote Coordinator
- Security: WireGuard VPN, local web interface
- Cooling: Passive, fanless design
