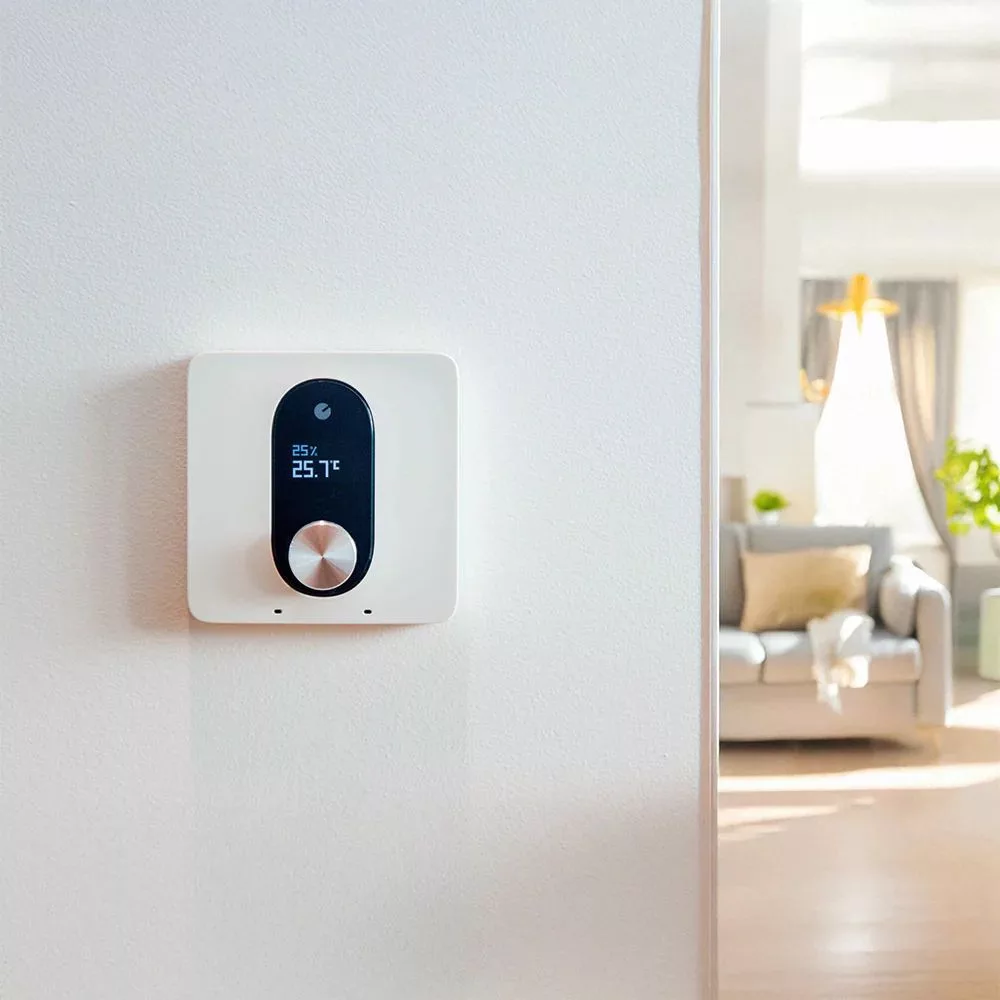

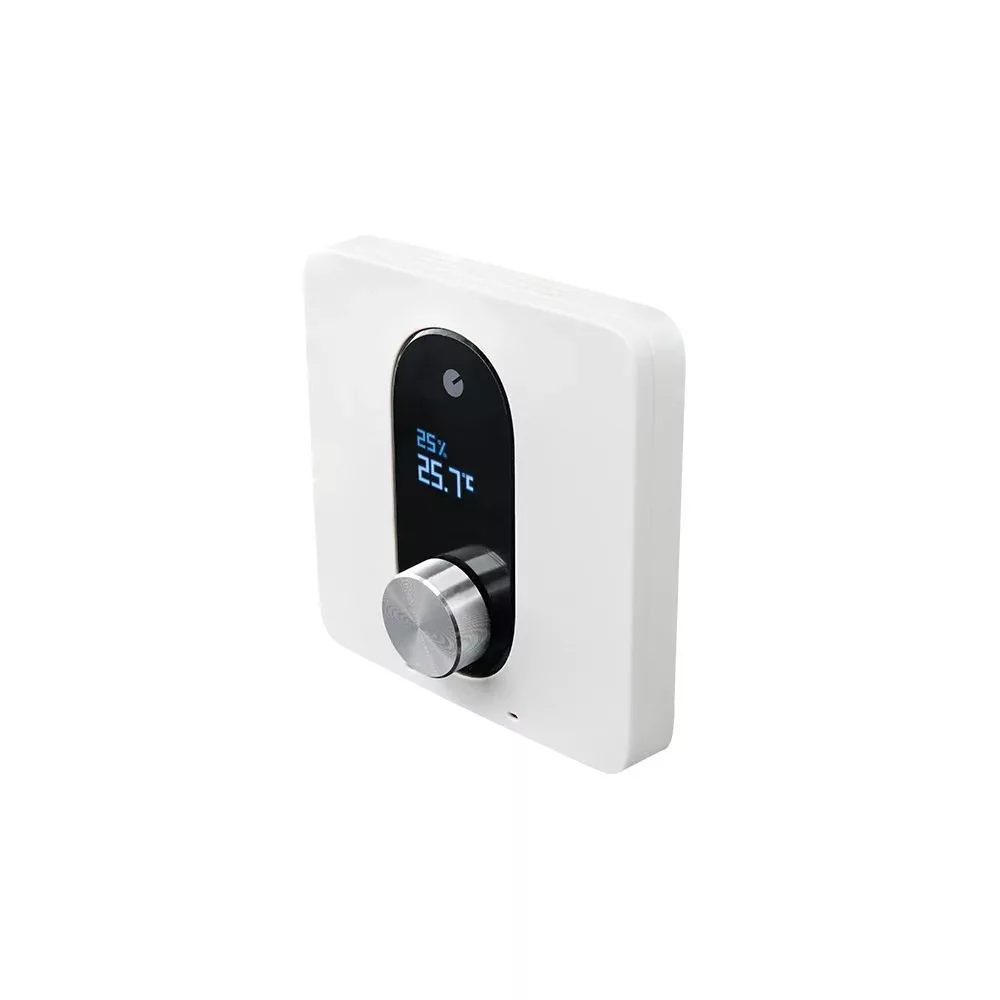

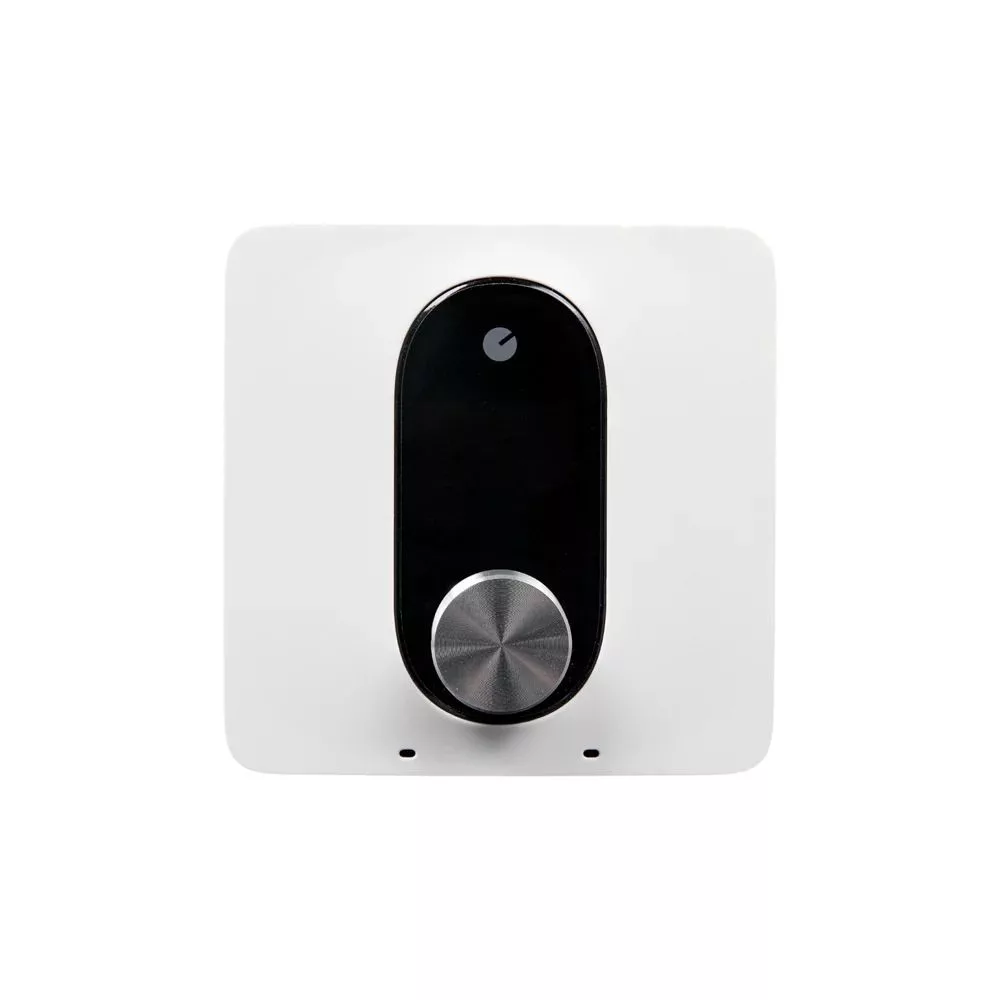

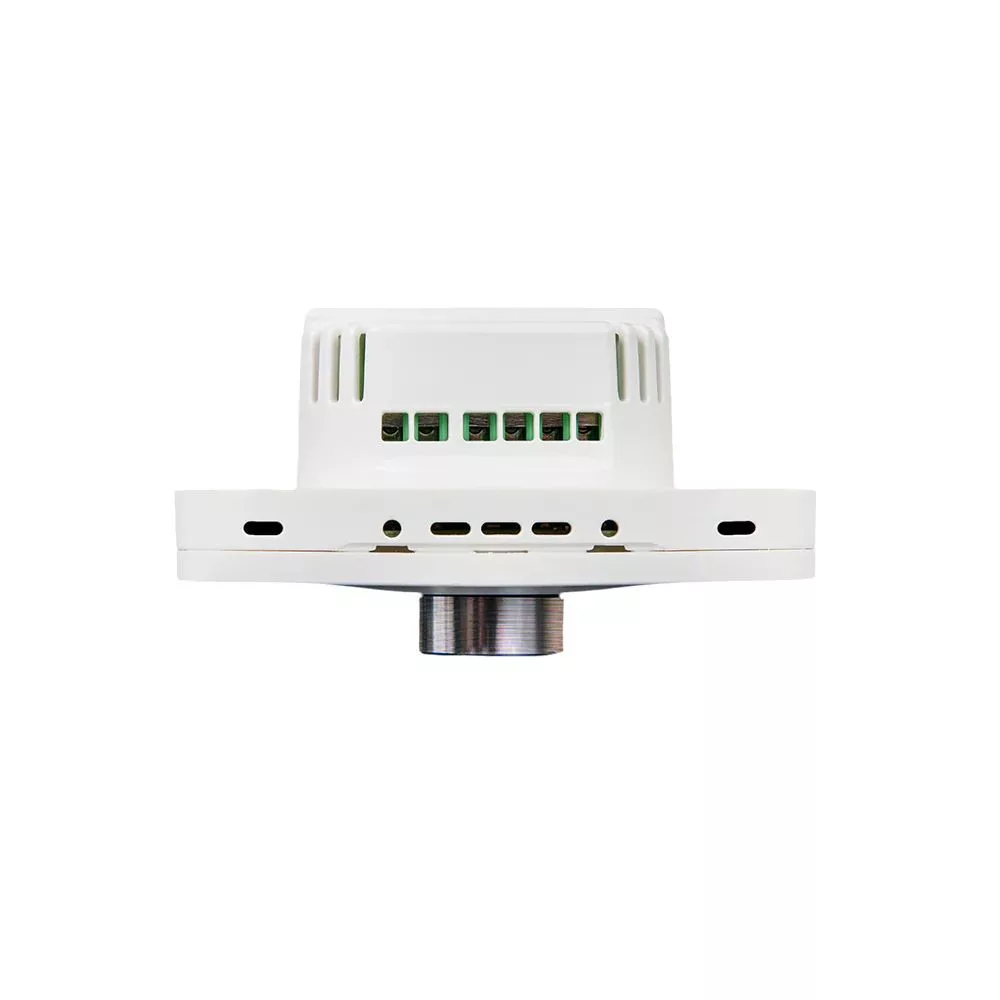

Shelly LinkedGo – Smart Thermostat for Underfloor Heating
The Shelly LinkedGo is a wall-mounted smart thermostat designed specifically for the precise control of underfloor heating systems. Powered by the advanced ShellyX chip, it enables direct regulation of heating valves and allows dry contact switching of heat sources such as gas boilers and pellet stoves. It is also compatible with electric underfloor heating systems when paired with a Shelly relay.
Equipped with a built-in humidity sensor and frost protection feature, Shelly LinkedGo helps prevent pipe damage during prolonged absence. It connects to your home network via Wi-Fi or Bluetooth without requiring a hub, and supports smart scheduling and scene automation through the Shelly Smart Control app.
Shelly LinkedGo is an ideal choice for users seeking an energy-efficient, intelligent solution for managing their home or commercial underfloor heating system.
About Shelly
Shelly is a leading IoT brand offering a wide range of smart home devices, including relays, sensors, and thermostats. Shelly products are compatible with Google Home, Amazon Alexa, and Home Assistant, ensuring seamless integration and remote control.
Smart Home Protocols and Compatibility
- Supported protocols: Wi-Fi (802.11 b/g/n) and Bluetooth 4.2
- Local control: via Bluetooth and Wi-Fi
- Native platform: Shelly Smart Control app
- Cloud integration: Google Home and Amazon Alexa compatibility
- Third-party platforms: Home Assistant and other open-source systems
- Integration options: REST API and MQTT support
- Voice control: Supports Amazon Alexa and Google Assistant
Smart Features
- Remote ON/OFF control and status monitoring
- Event history and activity logging via the app
- Scheduling and scene automation (e.g., turn on heating before sunrise)
- Automatic shutoff for frost protection
- Automation with other devices (e.g., turn off heating when a window is opened)
- Hybrid operation: supports both local and cloud control
- App-based sharing between multiple users
Product Specifications
- Valve control: Precisely regulates underfloor heating valves, supports up to 2 A resistive or 1 A inductive load
- Relay with dry contact output: Enables switching of heating sources
- Electric underfloor heating support: Automated control via Shelly relay
- Frost protection: Maintains minimum temperature to prevent pipe damage
- Humidity sensor: Optimizes heating performance
- Temperature and humidity offset: For more accurate readings
- No hub required: Simple Wi-Fi and Bluetooth connectivity
- Wi-Fi range extender & BLE gateway: Ensures stable connection
- User-friendly interface: Easy and intuitive operation
- Powered by Shelly: Supports all Shelly functions
- Compatibility: Works via Shelly Smart Control app with wide platform support

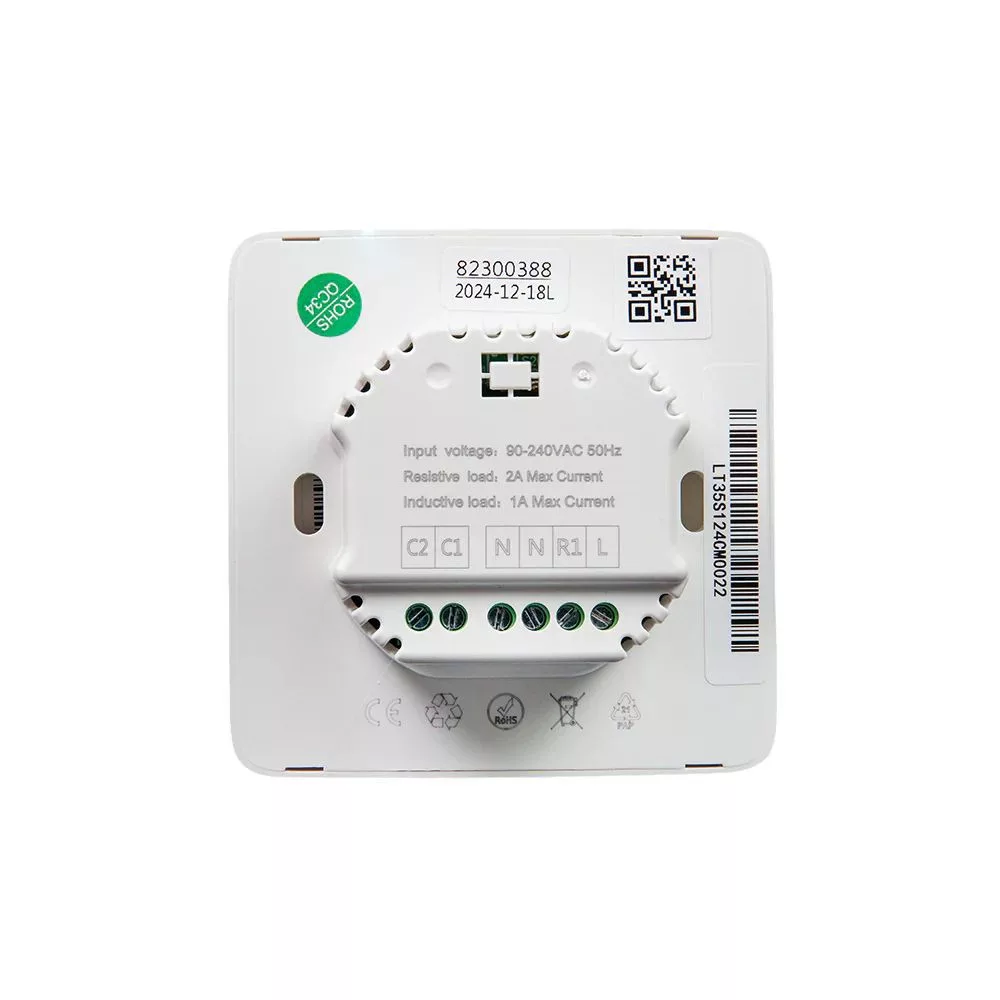

- Power supply: 230 V AC, 50/60 Hz
- Power consumption: Less than 1 W
- Relay output: Dry contact, 2 A resistive / 1 A inductive load
- Switch input: None
- Timer relay function: Supports automatic shutdown
- Dry contact switching: Yes
- NO/NC switching: Yes
- Dimensions: 85.5 x 85.5 x 38 mm
- Color: White
- Operating temperature: -20°C to +40°C
- Memory: 8 MB
- Bluetooth range: Up to 10 m indoors, 30 m outdoors
- Wi-Fi range: Up to 30 m indoors, 50 m outdoors
- Built-in humidity sensor: 30%–70% relative humidity
- Temperature control range: 15°C–35°C
