I-shape outdoor IP68 wire connector

Name: I-shape outdoor IP68 wire connector
Brand: Gledopto
Price: 4.56 EUR
Availability: InStock

EW-M20 is a waterproof IP68 wire connector, suggested for use with Gledopto GL-G-003P Professional Outdoor RGB+CCT LED Spotlight and many more.

All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:

Gledopto

last pieces (5 pcs)

4.56 €

Details

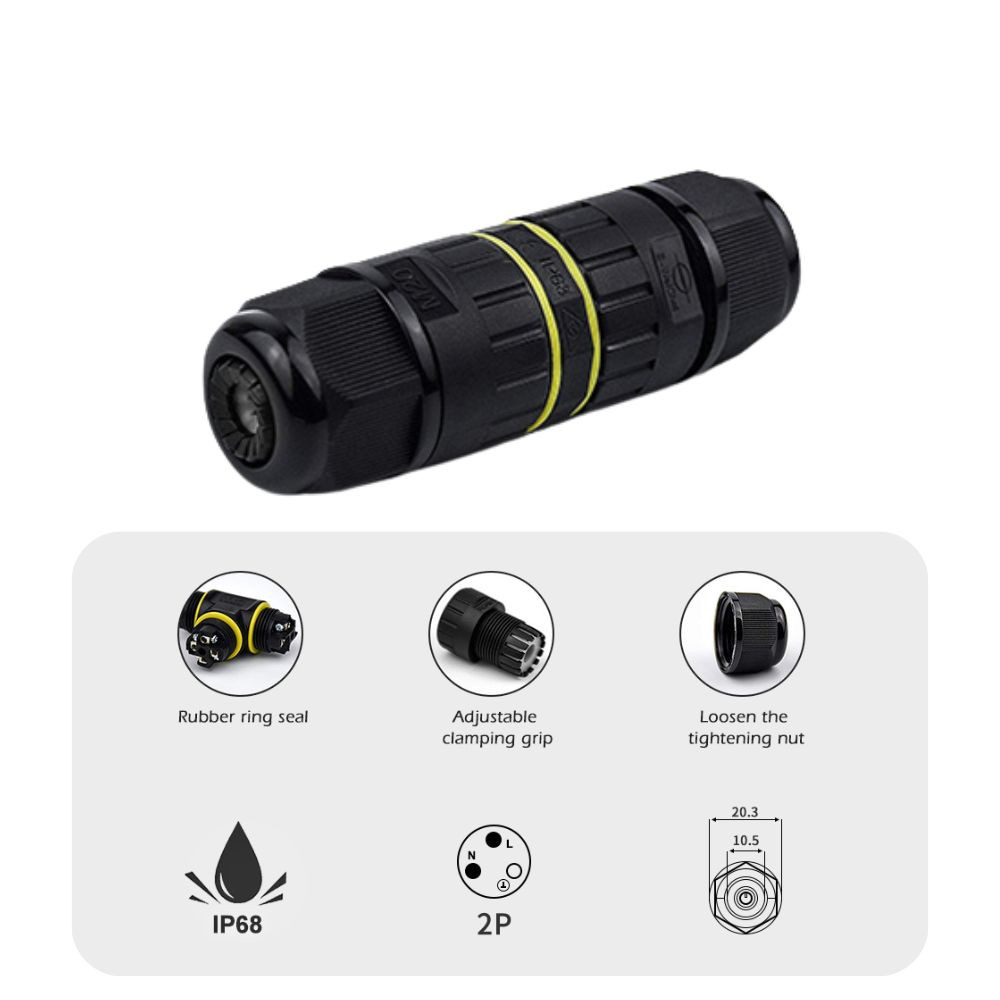

EW-M20 waterproof IP68 wire connector - for 2 x 2 wires

The EW-M20 is a robust waterproof wire connector with IP68 protection, designed primarily for outdoor and industrial applications. It is an ideal solution for LED lighting systems, automation devices, and other electrical equipment where a reliable and waterproof cable connection is needed.

IP68 protection – dustproof and waterproof design
3-pole version
Contacts made of copper alloy with nickel plating
Housing material: PA66 plastic (UL94 V-0 flame retardant)
Rated voltage: 400 V
Rated current: 24 A
Compatible wire cross-section: 0.5–2.5 mm²
Cable outer diameter: 5–9 mm or 9–12 mm
Operating temperature range: –40 °C to +105 °C
Screw terminal connection – safe and re-connectable wiring

Info

Factory SKU ID:

GL-G-003P-I

Plug&Play installation:

yes

Device power supply:

max 450V

Operating temperature range:

-40ºC-+105ºC

Operating humidity range:

0-100% RH

IP rating:

IP68

Warranty:

12 Month

Warranty type:

warranty

Size:

87.7 x 24.2 x 24.2 mm

Weight:

31 g/pcs
