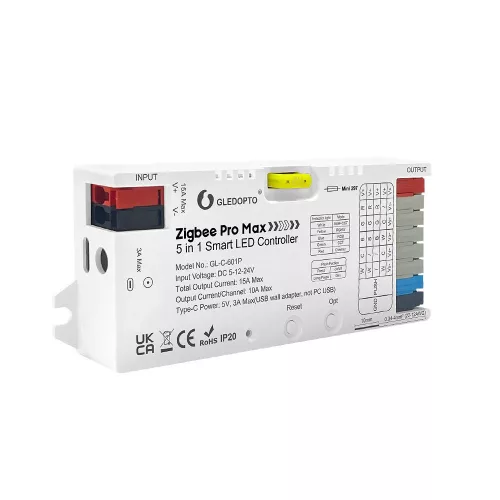

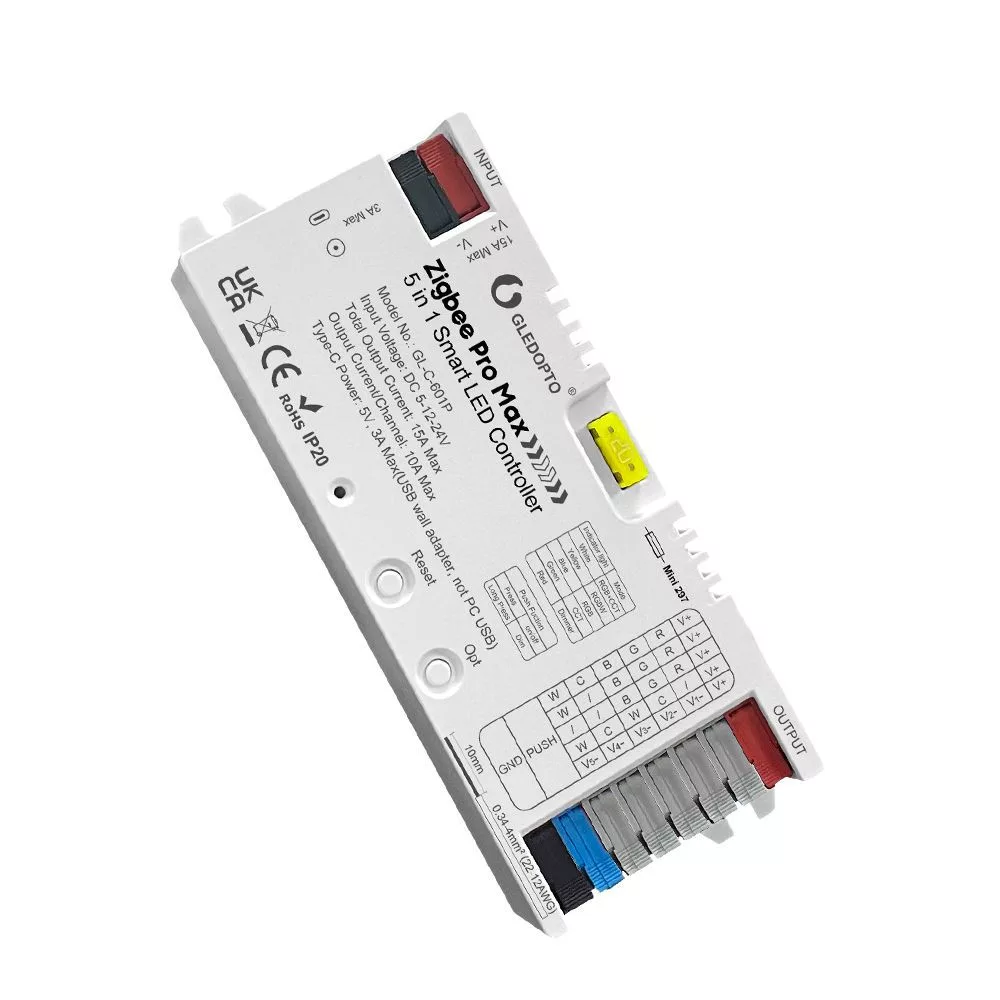

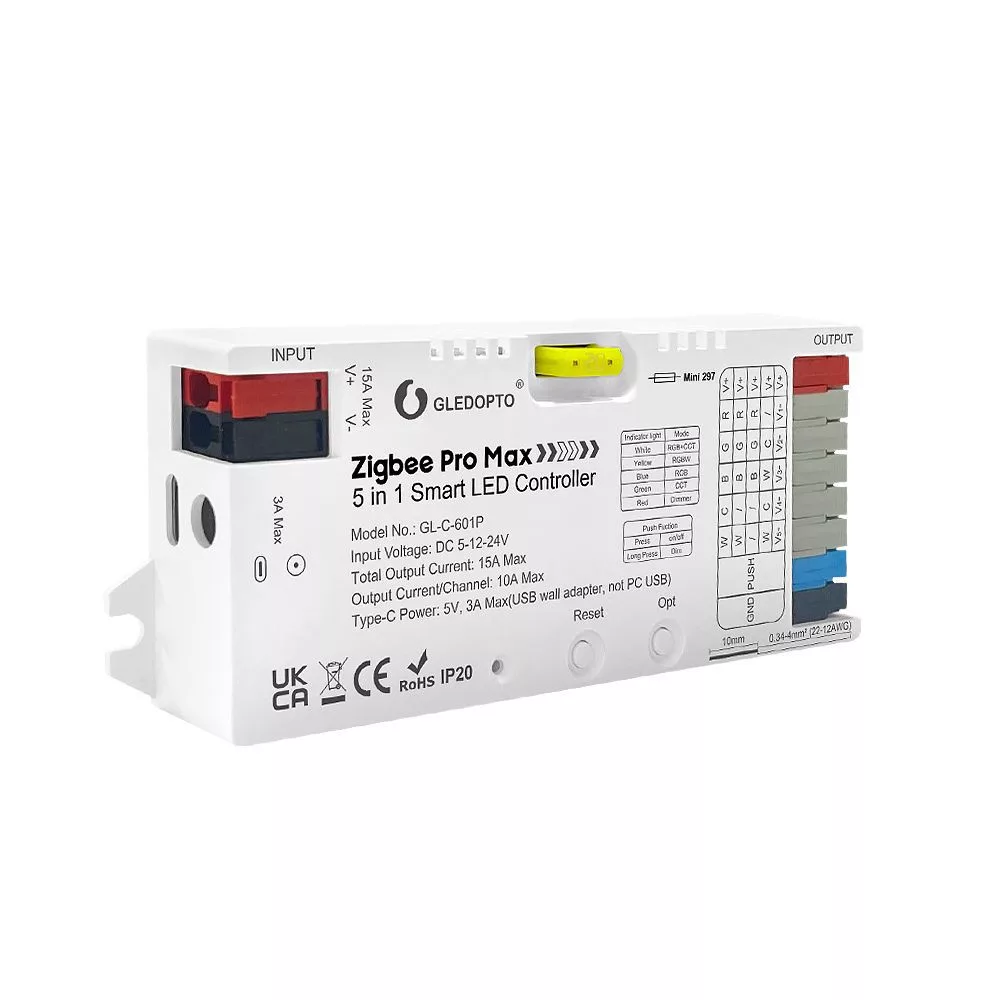

The Gledopto Zigbee Pro Max 5-in-1 Smart LED Controller (GL-C-601P) is a 5-in-1 PWM LED controller designed for controlling constant-voltage LED strips. A single controller can operate single-color, CCT, RGB, RGBW, or RGBCCT LED strips, making it suitable for a wide range of lighting installations without requiring different controller types.
The controller operates from a 5–24 V DC power supply, supports a maximum total output current of 15 A, and up to 10 A per channel. The Gledopto Zigbee Pro Max 5-in-1 Smart LED Controller (GL-C-601P) also allows the PWM (Pulse Width Modulation) frequency to be adjusted. This makes it possible to select the frequency that minimizes or eliminates audible power supply noise while also reducing or eliminating visible LED flicker. The physical push button on the controller allows switching between the following PWM frequencies: 600 Hz → 800 Hz → 1000 Hz → 2000 Hz → 4000 Hz → 8000 Hz. The default setting is 1000 Hz. The controller also features a replaceable fuse, Quick Connect spring terminals, as well as terminal block, DC barrel jack, and USB Type-C power inputs, making installation and maintenance easier.
The Gledopto Zigbee Pro Max 5-in-1 Smart LED Controller (GL-C-601P) can be integrated into numerous smart home systems via a Zigbee 3.0 network, including Homey, SmartThings, ConBee II, Philips Hue, and Home Assistant. It also supports Gledopto 2.4 GHz RF remote controls and wall-mounted controllers, allowing local wireless control even without a Zigbee hub. The controller supports Power-on State Memory, TouchLink pairing, and Zigbee Green Power. With its IP20 protection rating, it is intended for indoor use only.
Operating Modes
- RGB+CCT / RGBCCT mode: Suitable for controlling RGBCCT LED strips, supporting RGB colour lighting together with warm and cool white control and brightness adjustment.
- RGBW mode: Supports RGBW LED strips and luminaires, providing RGB colour control together with warm/cool white control and brightness adjustment.
- RGB mode: Supports RGB LED strips and luminaires, providing RGB colour control and brightness adjustment.
- CCT mode: Controls the colour temperature and brightness of tunable white (CW/WW) LED strips, and can also be used for colour mixing with other dual-colour LED strips (up to two CCT LED strips can be connected).
- Dimmer mode: Designed for dimming single-colour white or other single-colour LED strips (supports up to five single-colour LED strips).
About Gledopto
Gledopto is a manufacturer of smart LED controllers and lighting automation devices. Its product portfolio includes Zigbee, Wi-Fi, Matter, and WLED-based LED controllers that can be integrated into numerous open-source and commercial smart home systems.
The Pro Max series is Gledopto's advanced Zigbee LED controller family, offering multiple LED operating modes, a replaceable fuse, spring terminals, and more flexible configuration options.
Key Features
- 5-in-1 PWM LED controller: Compatible with single-colour, CCT, RGB, RGBW, and RGBCCT LED strips.
- Zigbee 3.0 communication: Compatible with standard Zigbee networks.
- 2.4 GHz RF control: Compatible with Gledopto RF remote controls and wall controllers.
- Adjustable PWM frequency: Selectable output frequencies of 600, 800, 1000, 2000, 4000, or 8000 Hz.
- Quick Connect terminals: Spring-loaded wire connectors for faster installation.
- Replaceable fuse: 20 A replaceable fuse for input power protection.
- Multiple power input options: Terminal block, DC barrel jack, and USB Type-C.
- Power-on State Memory: Configurable recovery state after power restoration.
- TouchLink support: Simplified direct pairing with compatible Zigbee remotes and controllers.
Smart Home Protocols and Platform Compatibility
- Zigbee 3.0: Primary smart home communication protocol.
- Zigbee Green Power: Compatible with supported Zigbee Green Power controllers.
- 2.4 GHz RF: Local wireless control using compatible Gledopto RF controllers.
- Philips Hue: Compatible through Zigbee integration.
- Samsung SmartThings: Supported through a Zigbee hub.
- Home Assistant: Compatible via Zigbee2MQTT, ZHA, or compatible Zigbee coordinators.
- Zigbee2MQTT: Suitable for local Zigbee integration.
- Amazon Echo Plus / Zigbee-enabled Echo devices: Compatible with Echo models featuring a built-in Zigbee hub.
- ConBee / RaspBee: Supported with deCONZ or Home Assistant.
- Homey: Supported through Zigbee integration.
- Voice control: Can be controlled via Alexa, Google Assistant, or Siri through a compatible Zigbee platform or smart home hub.
Smart Features
- On/off control over a Zigbee network.
- PWM brightness control.
- Colour temperature adjustment for CCT and RGBCCT LED strips.
- RGB colour control for RGB, RGBW, and RGBCCT LED strips.
- White channel control in RGBW and RGBCCT configurations.
- Create scenes and automations within the selected Zigbee platform.
- Local RF remote control with compatible Gledopto controllers.
- Power-on state memory after power restoration.
- TouchLink pairing support.
- Scene memory and local control using compatible RF remote controls.
Technical Specifications
- Model: GL-C-601P
- Product type: Zigbee Pro Max 5-in-1 PWM LED controller
- LED type: Constant-voltage PWM LED strips
- Supported operating modes: Dimmer, CCT, RGB, RGBW, RGBCCT
- Input voltage: 5–24 V DC
- Maximum total output current: 15 A
- Maximum output current per channel: 10 A
- Output channels: 5 PWM channels
- PWM frequency: 600 / 800 / 1000 / 2000 / 4000 / 8000 Hz
- Communication: Zigbee 3.0 and 2.4 GHz RF
- Fuse: 20 A, replaceable
- Power inputs: Terminal block, DC barrel jack, USB Type-C
- Connectors: Quick Connect spring terminals
- Protection rating: IP20
- Dimensions: 129 × 50 × 23 mm
- Installation location: Indoor use
