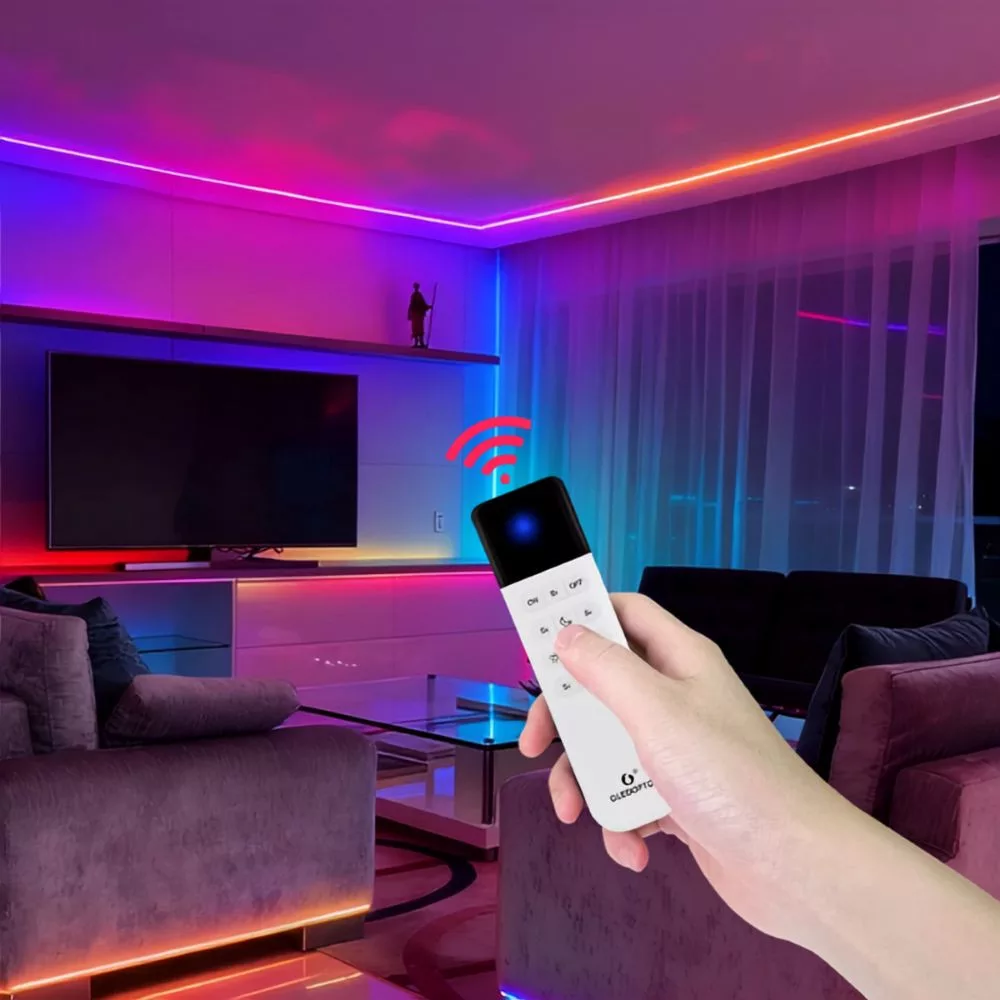

The Gledopto WLED 12-Key Remote Control (GL-RC-002WL) is a 12-button wireless remote compatible with ESP-NOW-enabled WLED controllers. The GL-RC-002WL operates on two AAA batteries with a 3 V supply voltage. The standby current consumption is less than 13 µA, while the wireless communication range is up to 50 meters under suitable conditions. The remote automatically enters sleep mode after approximately 2 seconds of inactivity.
Communication is based on the ESP-NOW protocol, which provides direct wireless communication between ESP32-based devices. No Wi-Fi router, Internet connection, mobile application, or cloud service is required for operation, but the controlled WLED device must support ESP-NOW communication.
The remote is compatible with WLED controllers running WLED firmware version 0.14.0-beta3 or later with ESP-NOW support. It is compatible with ESP-NOW-enabled Gledopto WLED controllers, including the GL-C-615WL, GL-C-616WL, GL-C-618WL, and other supported WLED controllers.
About the Gledopto Brand
Gledopto manufactures LED lighting controllers, WLED controllers, RF remote controls, and Zigbee, Matter, and Wi-Fi-based smart lighting devices. Its product portfolio includes constant-voltage PWM LED controllers, digital LED controllers, WLED accessories, and both wall-mounted and handheld remote controls.
Key Features
- ESP-NOW Communication: Direct wireless communication between the remote control and supported WLED controllers.
- 12-Button Interface: Supports power on/off, brightness adjustment, Night Mode, and preset control.
- Preset Buttons: Directly recall presets saved in the WLED web interface.
- Night Mode: Instantly reduces brightness for low-light operation.
- Battery Powered: Operates on two AAA batteries.
- Low Standby Power Consumption: Standby current consumption is less than 13 µA.
- Automatic Sleep Mode: Enters sleep mode after approximately 2 seconds of inactivity.
Communication and Compatibility
- ESP-NOW: Uses the ESP-NOW protocol for direct wireless communication between ESP32-based devices.
- WLED: Compatible with ESP-NOW-enabled WLED controllers.
- Firmware Requirement: Requires WLED version 0.14.0-beta3 or later.
- Offline Operation: Can operate without an Internet connection when used with a compatible WLED controller.
Control Functions
- Turn the WLED controller on and off.
- Increase and decrease brightness.
- Activate Night Mode.
- Directly recall WLED presets.
- Assign Preset ID 1 to the S1 button, Preset ID 2 to the S2 button, and so on.
- The S5, S6, and S7 buttons work only with specially customized Gledopto controllers.
Technical Specifications
- Model: GL-RC-002WL
- Product Type: WLED Wireless Remote Control
- Number of Buttons: 12
- Supply Voltage: 3 V
- Battery Type: 2 × AAA, 1.5 V
- Standby Current: < 13 µA
- Wireless Protocol: ESP-NOW
- Wireless Range: Up to 50 m, depending on the installation environment
- Housing Material: PC plastic
- Protection Rating: IP20
- Operating Temperature: -20 °C to +45 °C
- Dimensions: 39 × 16 × 143 mm
- Weight: 0.06 kg
- Installation Environment: Indoor use
