Gledopto GL-C-201P, Zigbee Pro 5-in-1 LED controller (Zigbee+RF) 12V-54V DC

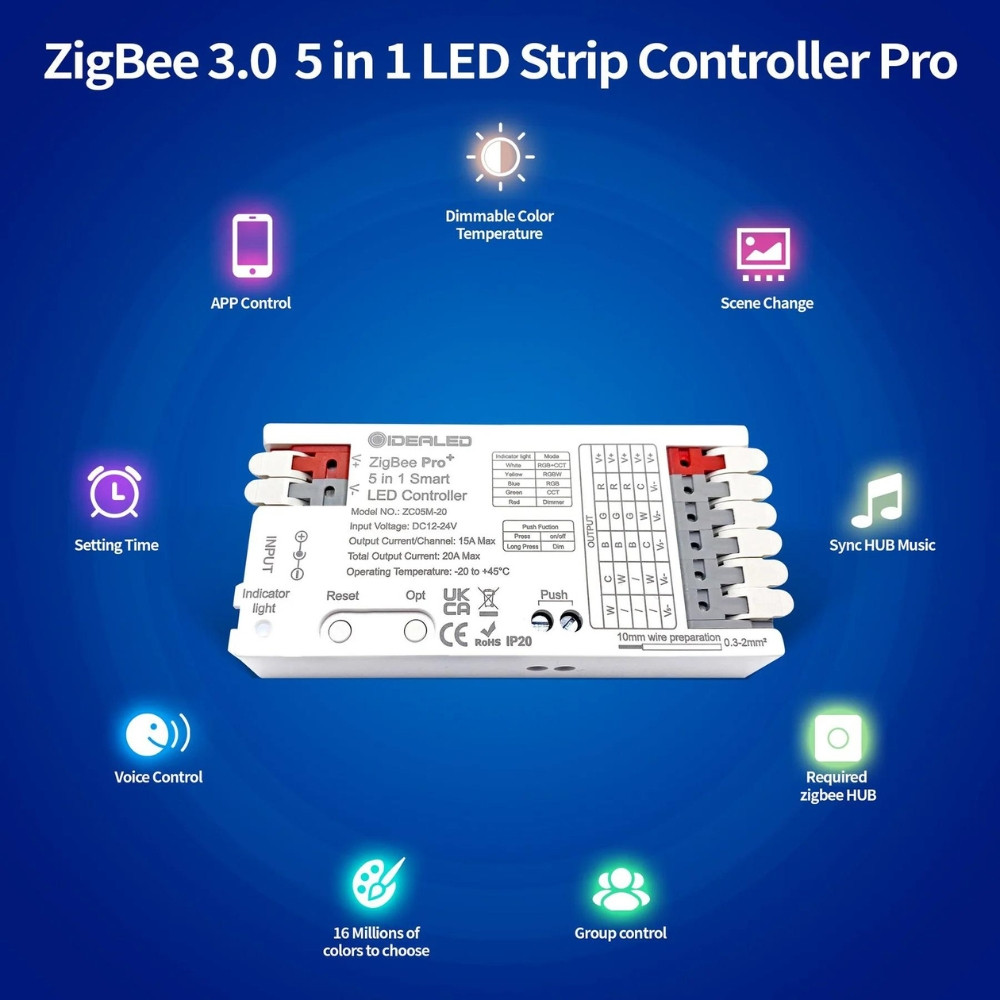

The GL-C-201P Gledopto Pro is a new member of the professional LED control family with Zigbee 3.0 + RF receiver.It can operate in 5 different modes: RGBCCT, RGBW, RGB, CCT (WW/CW) and Dimmer, and can control 12V - 24V DC LEDs with functions according to the type of LED (colour adjustment, colour temperature adjustment for white light, brightness control), making it compatible with almost all LED lighting.

It is compatible with eWeLink (Sonoff and SmartWise) Zigbee Bridge, Tuya / SmartLife Zigbee gateways, Philips Hue bridge, some Amazon Zigbee bridges, Aeotec SmartThings hub, and Terncy (Apple Homekit compatible) Zigbee gateway, and a range of other systems.

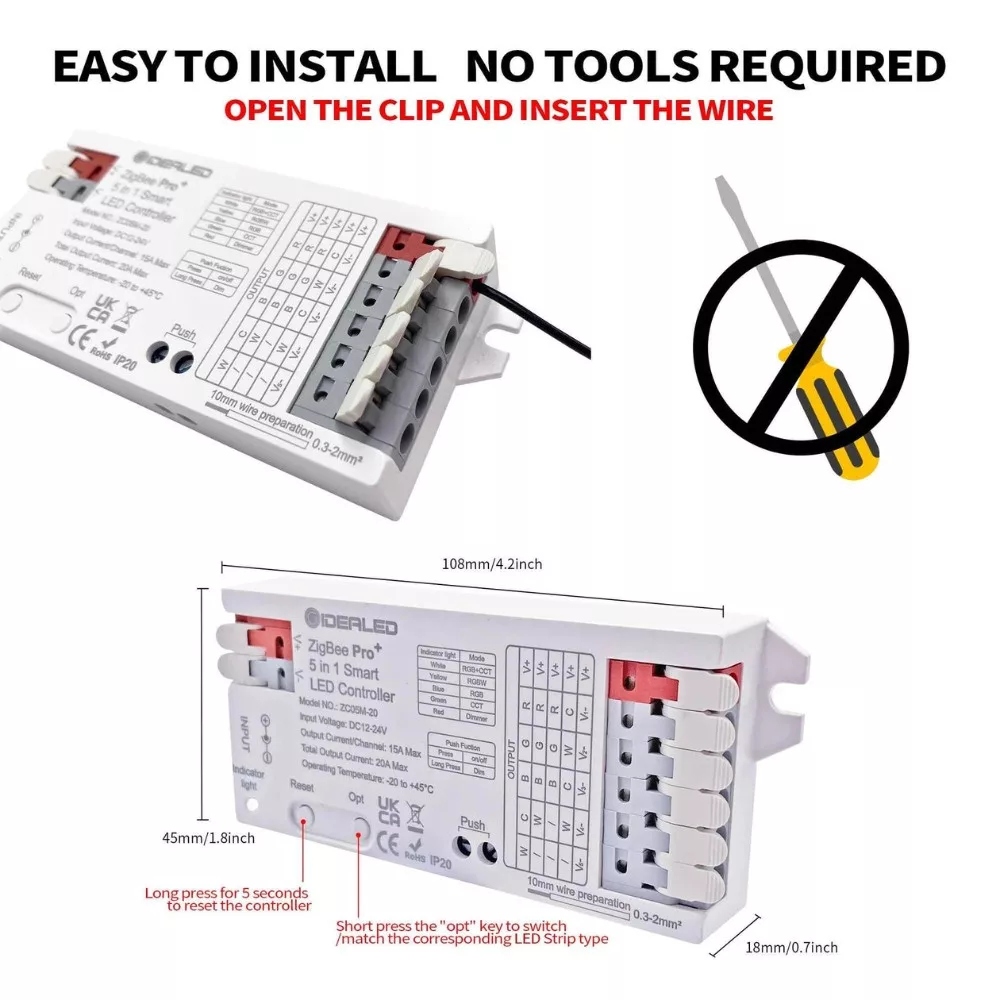

Not only can it be automated and remotely controlled via Zigbee from an app, but it can also be remotely controlled via Gledopto's 2.4GHz RF remote control and wireless RF wall panel, and has an input for push-button switches, so it can be controlled from wall switches (on/off and dimming).


All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:
Gledopto
Factory SKU ID:
GL-C-201P
Supported protocols:
RF receiver (2.4 GHz), Zigbee
in stock (30+ pcs)
21.9
Details

The Gledepto Zigbee Pro range offers innovative, professional smart LED controls that connect to a smart home system via Zigbee 3.0, and Pro devices can also be remotely controlled locally from 2.4GHz RF remote controls and RF wall panels, and support Alexa and Google Home voice control (depending on the Zigbee gateway).


Gledopto Pro devices offer extremely broad compatibility, and can be paired and controlled with all major Zigbee gateways: They are compatible with Sonoff ZBBridge (Zigbee Bridge) and SmartWise eWeLink Zigbee gateways, among others, and work with Tuya/SmartLife Zigbee gateways, Philips Hue bridge, compatible with Aeotec SmartThings gateway, Homee, ConBee II, Hubitat Elevation, Amazon Alexa devices with Zigbee gateway, and can be paired with Terncy (Apple Home compatible) gateway.
In addition, the Pro Series products can be remotely controlled with Gledopto's 2.4GHz LED remote control and wireless wall panel, so that not only smart control but also local remote control is available for the products.

The Gledopto Zigbee Pro 5-in-1 LED controller (Zigbee+RF) (GL-C-201P) is the top of the range model in the Pro range, a 12V-24V DC professional Gledopto Pro product with standard Zigbee 3.0 and 2.4GHz RF capabilities.

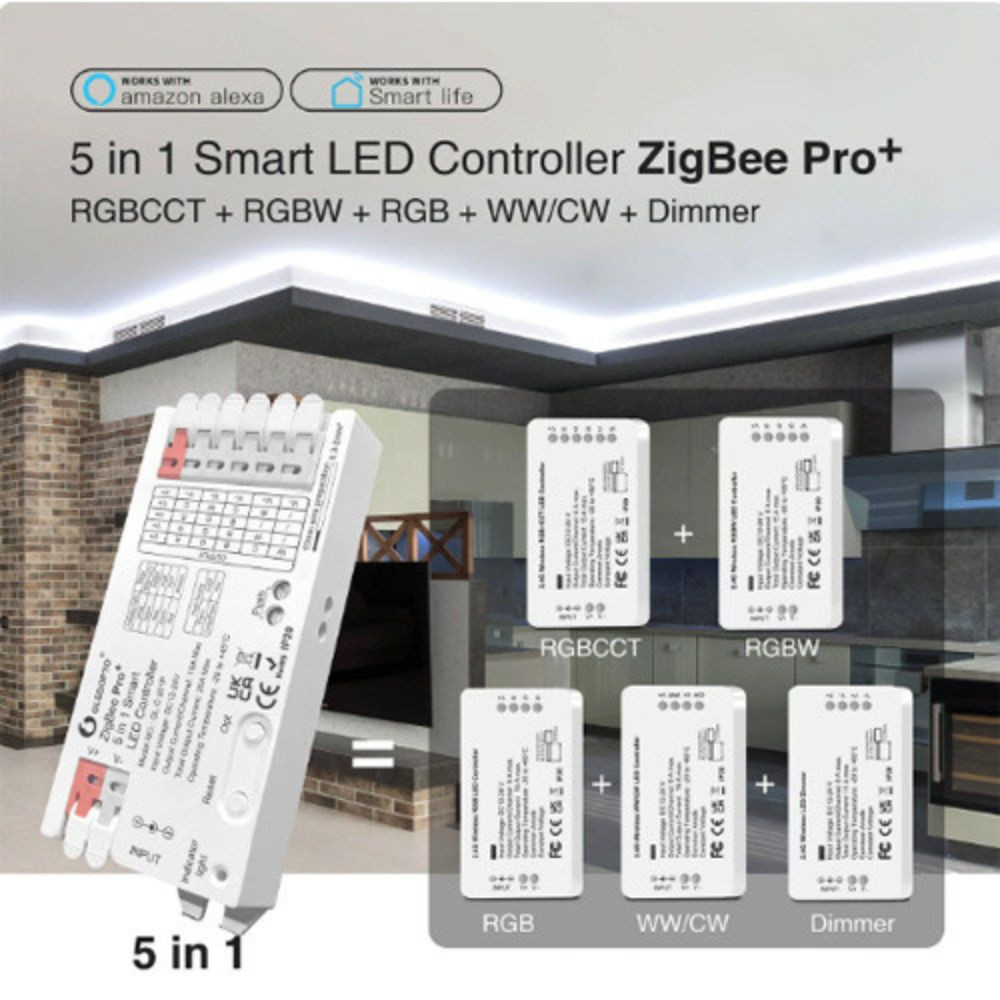

It can operate in 5 modes, making it suitable for a wide range of LED types:

RGB+CCT / RGBCCT mode: can control RGBCCT LED strips, supports RGB colored lights + warm/cold white light control and dimming;
RGBW mode: supports RGBW LED strips and lamps with RGB colour lights + warm/cold white light control and dimming;
RGB mode: supports RGB colour lights + warm/cold white light control and dimming for RGB LED strips and lamps;
CCT mode: capable of white CCT (also known as CW/WW) LED colour temperature (cool-warm white light) control and dimming; or even other two-colour LED colour mixing (up to 2 CCT LED strips can be connected);
Dimmer mode: it can control the brightness of white or other single-colour LED strips (up to 5 single-colour LED strips can be controlled).

Zigbee LED control modes and wiring diagrams:

Info
Product type:
Zigbee smart LED controller
Device power supply:
12V or. 24V DC, 12V DC / 24V DC
DIN rail compatible:
no
Operating temperature range:
-20℃ – 45℃
IP rating:
IP20
Dimmer feature:
yes
Power consumption metering:
no
Number of gangs / circuits:
1
Rated current (output):
20A (including all channels)
Physical on/off button on device:
no
External switch supported:
yes
2-way or 3-way switching:
it can be controlled from multiple RF 2.4GHz remote controllers and wall panels
Wi-Fi:
no
Zigbee:
yes
Thread:
no
Z-Wave:
no
RF transmitter / receiver:
2.4GHz RF receiver
Bluetooth:
no
Direct local remote control:
yes, wireless local remote control supported from Gledopto 2.4GHz remote controllers and wall panels
Controllable from internet:
yes, if connected to a Zigbee gateway
Manufacturer smartphone app:
eWeLink, Tuya/SmartLife, SmartThings, Hue, depending on Zigbee bridge
Web admin interface:
depends on the Zigbee Bridge
Cloud mode:
depends on the Zigbee Bridge
LAN mode:
depends on the Zigbee Bridge
MQTT support:
depends on the Zigbee Bridge
Supported integrations:
Sonoff and other eWeLink Zigbee gateways, Tuya SmartLife Zigbee gateways, Philips Hue bridge, SmartThings gateway, homee, ConBee II,   Hubitat Elevation, Amazon Zigbee gateways, Terncy gateway
Schedulers, timers:
depends on the Zigbee Bridge
Notification functions:
depends on the Zigbee Bridge
History:
depends on the Zigbee Bridge
Weight:
64 g/pcs
