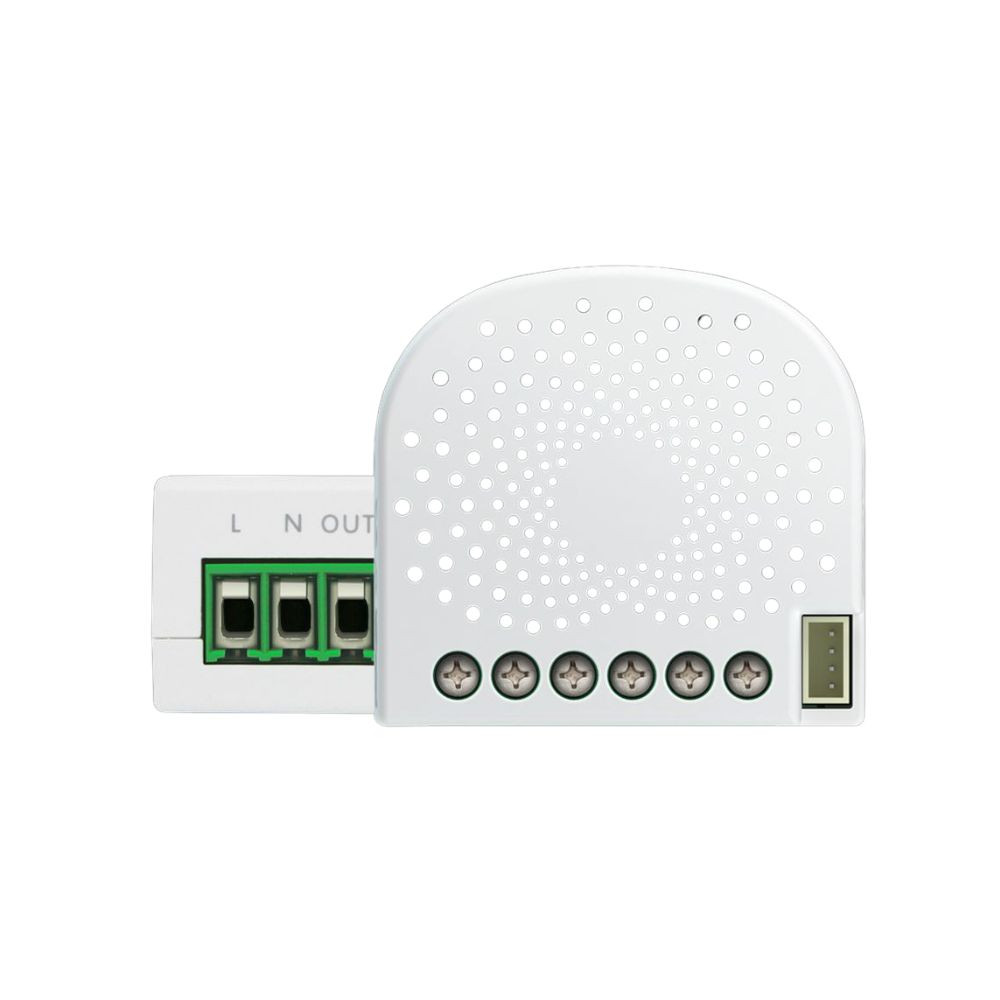

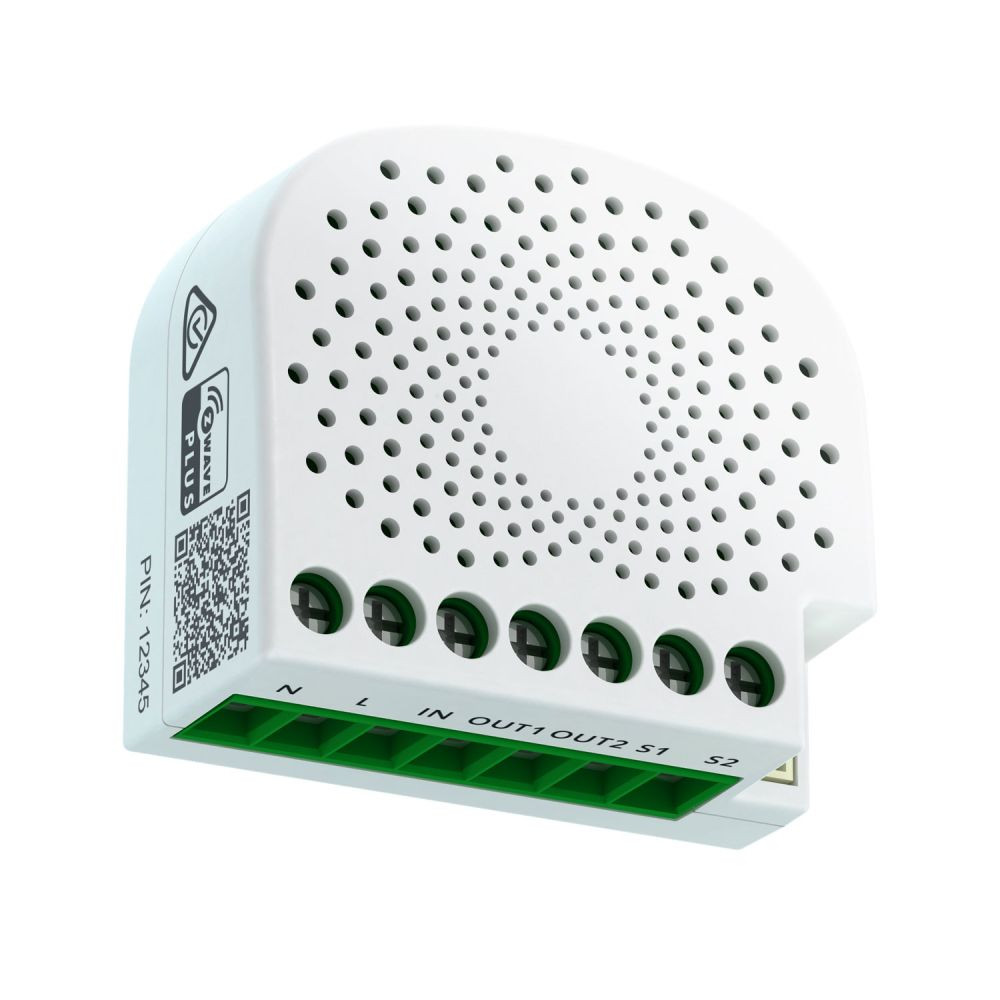

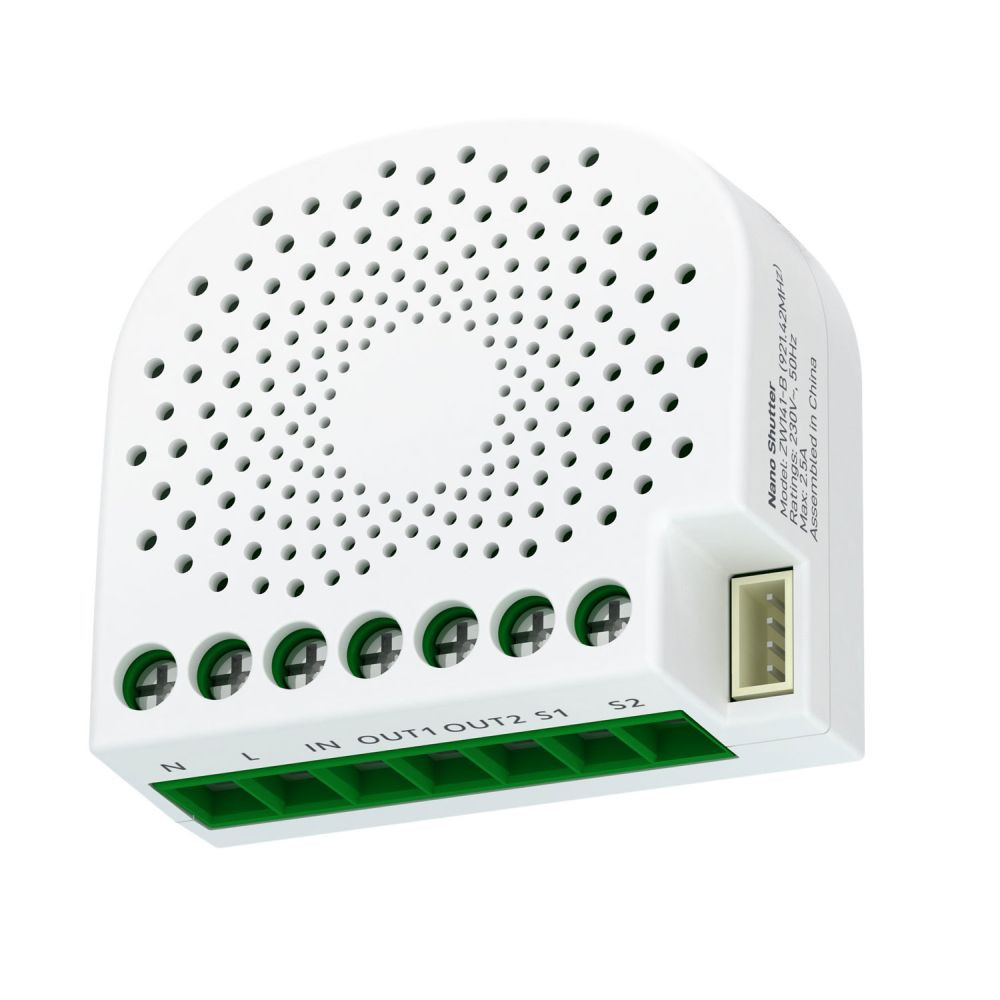

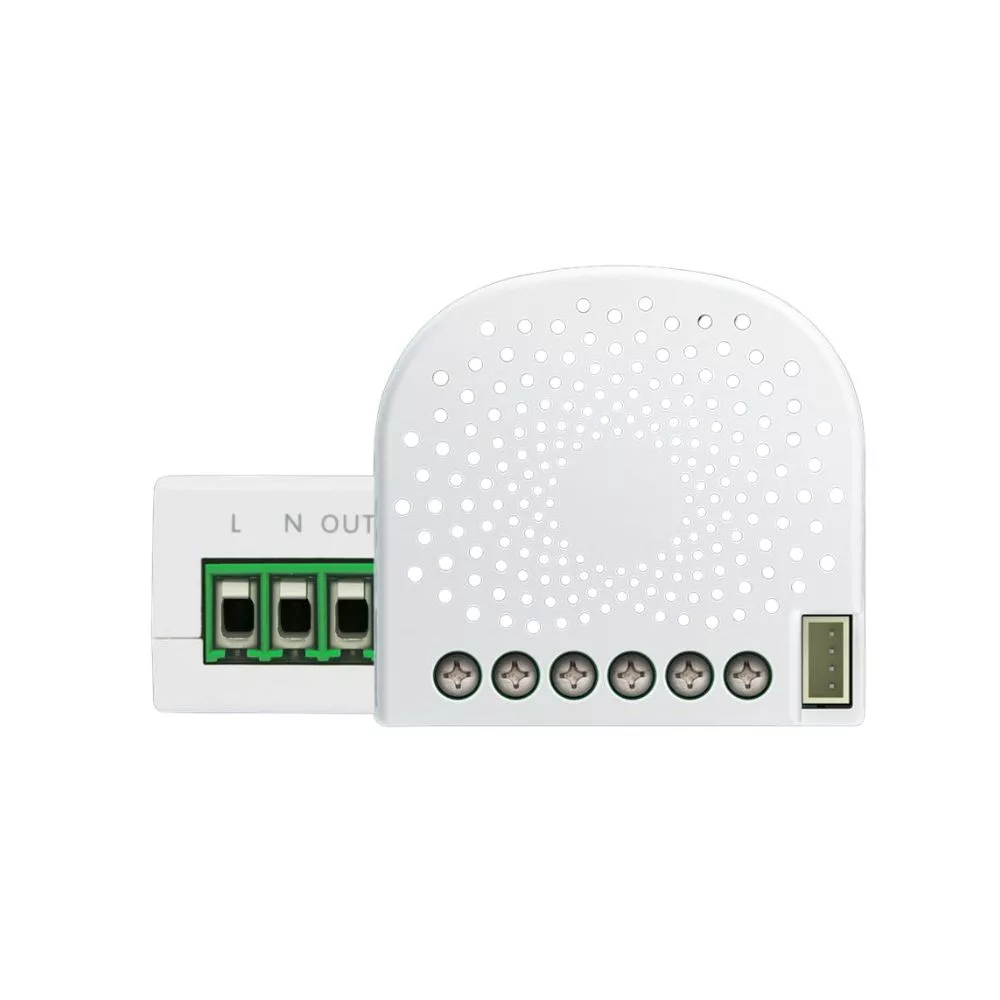

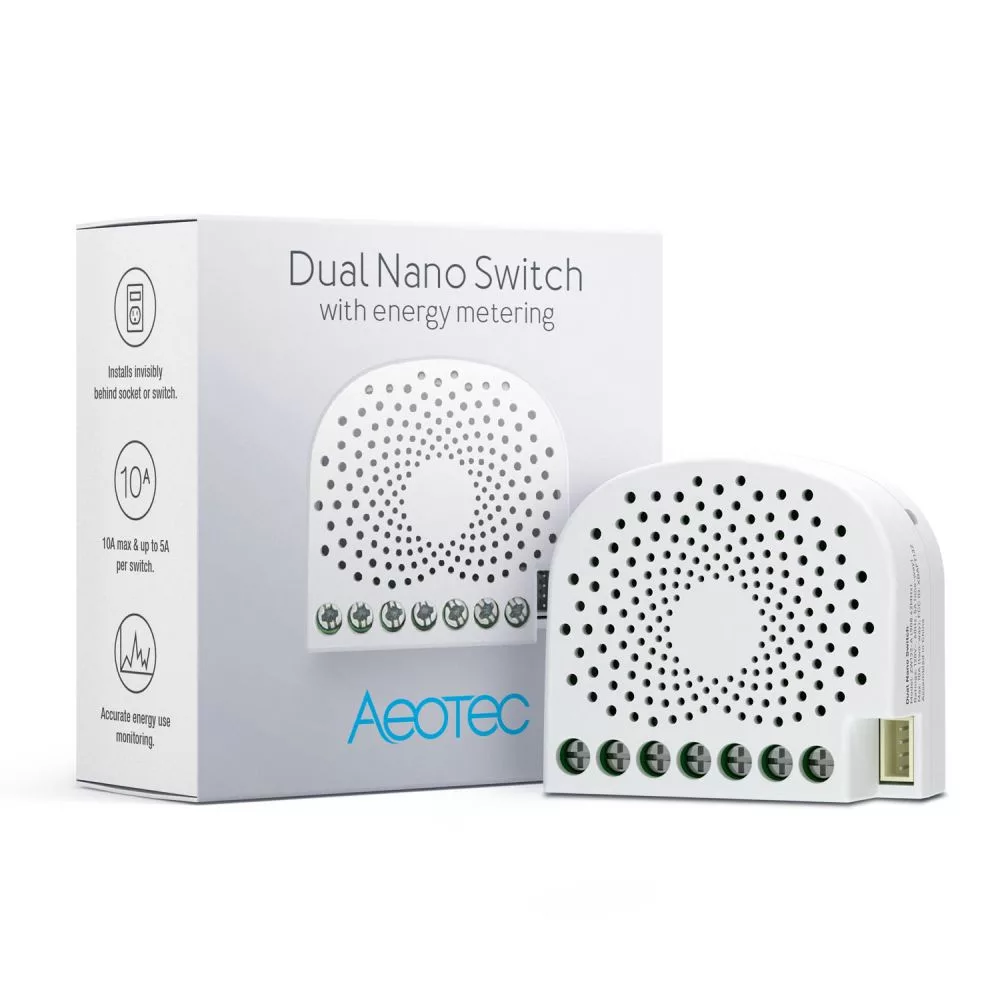

The Aeotec Dual Nano Switch (ZW132) is a dual-channel, in-wall Z-Wave relay module designed for concealed installation behind wall switches or inside electrical boxes. It enables wireless control and real-time energy monitoring, making it an ideal solution for upgrading existing installations without replacing the wall switch.
The ZW132 features two independent channels, each supporting up to 5 A (1150 W) resistive load. Both channels offer accurate energy measurement with a maximum deviation of ±3 W. Built on the Z-Wave Plus Gen5 platform, it supports OTA firmware updates, enhanced wireless range (~150 m), and AES‑128 encrypted communication. Thanks to its compact dimensions (44.5 × 41 × 20 mm), it can be mounted inside standard junction boxes or behind switches. Compatible with toggle, momentary, and touch switches. It reports real-time power consumption (watts) and cumulative energy usage (kWh). During power outages, the non-volatile memory retains all configuration settings. The Aeotec Dual Nano Switch is certified as a secure Z-Wave device and supports over-the-air firmware updates.
About Aeotec
Aeotec (formerly Aeon Labs) is a leading manufacturer of Z-Wave Plus (Gen5) smart home devices. Its product range includes sensors, plug-in and in-wall relay modules, as well as central hubs. All devices come with AES‑128 encryption and are compatible with major Z-Wave platforms such as SmartThings, Home Assistant, Vera, and Fibaro.
What is Z-Wave?
Z-Wave is an international wireless communication protocol designed for smart homes. It ensures reliable communication through message acknowledgment (two-way communication) and supports mesh networking, where all powered nodes act as repeaters. This allows devices to communicate even if they are not within direct range of each other. All certified Z-Wave devices, regardless of brand or origin, can interoperate as long as they use the same frequency. Devices supporting secure communication will connect securely with others offering the same or higher security level, otherwise defaulting to a lower level to maintain backward compatibility.
Main Features
- Flush-mounted radio module – Compact design for installation inside walls or behind switches.
- Maximum load – 2× 1150 W (5 A) resistive; 3.5 A capacitive; 2.5 A inductive per channel.
- Energy metering – Real-time and cumulative energy measurement with ±3 W accuracy (kWh and W).
- Wireless & Security – Z-Wave Plus Gen5, AES‑128 encryption, repeater function, beaming, ~150 m outdoor range.
- Power input – 120–240 VAC 50/60 Hz; neutral wire required; max total current 10 A.
- Standby power – <0.8 W standby consumption.
- Surge protection – 1 kV spike protection (8–20 μs impulse).
- Dimensions – 44.5 × 41 × 20 mm; IP20 indoor use only.
Smart Home Protocols & Compatibility
- Protocol – Z-Wave Plus (Gen5); not multiprotocol.
- Remote control – via Z-Wave network with repeater functionality.
- Hub compatibility – Works with Z-Wave hubs like SmartThings, Vera, Fibaro, Home Assistant, etc.
- Matter – Not supported.
- Cloud platform – Supported via compatible hubs (e.g., SmartThings).
- IFTTT – Indirectly supported through hub integration.
- Integration – OTA, Z-Wave Meter Command Class, built-in repeater; REST/MQTT via hub.
- KNX – Not supported.
- Voice control – Via Alexa and Google Assistant through compatible Z-Wave hubs.
Smart Features
- Monitor real-time and cumulative energy usage (W, kWh).
- Remote On/Off switching via Z-Wave hub.
- Energy usage and status event logging through the hub.
- Automation and scheduling – e.g. auto shutoff based on load.
- Scheduled energy-saving routines (e.g. nighttime power saving).
- Safe design – can be controlled by hub while also supporting manual toggle, momentary, and 3-way switches.
- OTA firmware update support with Z-Wave Plus.
- Local and cloud-based operation depending on hub.
- Share device access with others via the hub platform.
Electrical Specifications
- Input voltage – 120–240 VAC 50/60 Hz; neutral wire required.
- Max current per channel – 5 A (resistive); 3.5 A (capacitive); 2.5 A (inductive).
- Total current – Max 10 A (combined channels).
- Standby power – <0.8 W.
- Energy metering – Yes, with ±3 W accuracy; W and kWh; supports Meter Command Class.
- Switch inputs – 2x; supports toggle, momentary, and 3-way switches.
- Timer relay – Not supported.
- Dry contact switching – Not supported; live phase required on input.
Additional Features
- Fits in standard wall boxes; ~60% smaller than its predecessor.
- Built-in surge protection.
- Indoor use only – IP20 rating.
- Control via physical switch or touch panel with pin connectors.
- No special wiring required; compatible with existing switch boxes.
- Dual-channel operation for independent control and monitoring in a single module.
- Entry-to-mid-level Z-Wave actuator with premium features (Gen5, OTA, metering).
