Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)

NEW
Stock: Out of stock
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
Sonoff TH16 Origin (R3) WiFi smart relay (230V/16A) with sensor input (THR316)
SKU:
SON-REL-TH16-R3
Brand:
Sonoff
MPN:
6920075777512
Communication protocol:
Wi-Fi
Mobil App:
eWeLink
Works without Bridge/Hub/Gateway:
Yes
Works without neutral

Usually, only the phase wire is connected in plain light switches. As a result, replacement is only required with light switches or switch relays that do not require a neutral wire. These are also called one or two wires (incoming phase + outgoing phase).

If possible, use switches that require zero because they are more stable and compatible with any lamp and consumer. These are also called two or three wires (zero + incoming phase + outgoing phase).

:
No (neutral wire required)
Number of controllable circuits:
1
Voltage:
230V AC
Consumption metering:
No
Dimmer:
No
Max. Current (A = Ampere) / Channel:
16 A
REST API connection:
No
Number of controlled phases:
1 phase
Contact type:
Wet Contact Relay
Switch relay placement:
Free, DIN rail (with separate adapter)
Temperature sensor input:
Yes
Warranty:
6 months
13.99 € (excl. VAT)
Out of stock
Get notified if re-stocked
To Favourites
Recommend
Print
Comparison
Question about the product
Details
Quantity discount
Info
Opinions
Details

Sonoff TH16 R3 Origin (THR316):

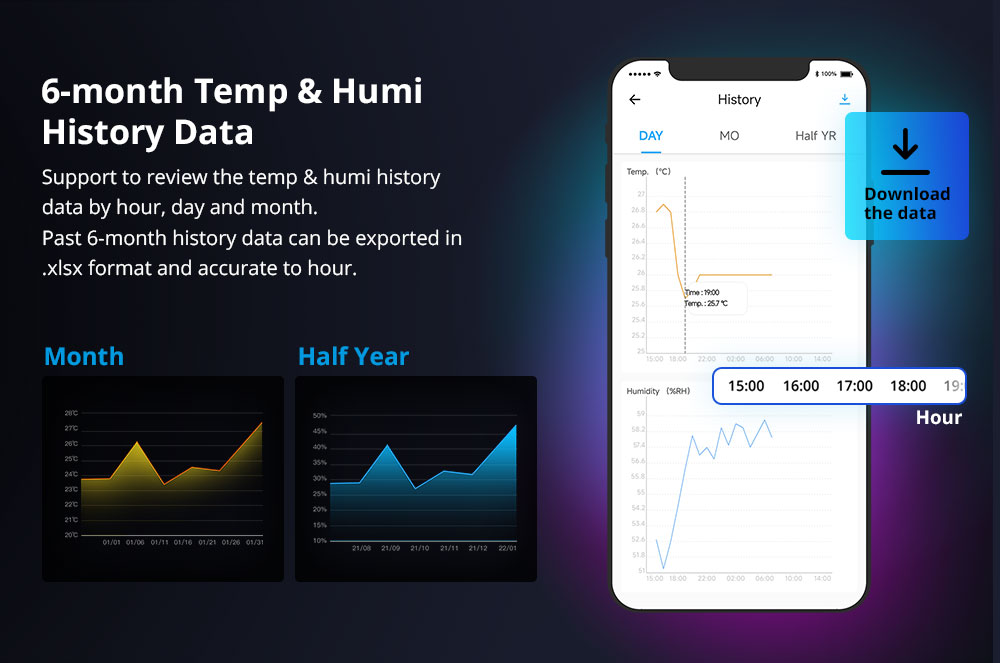

  • 6-Month Temp & Humi Historical Data by Hours: Support to check the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.
  • Local Automatic Control: Support LAN control, the device can turn on/off automatically according to the temp & humi thresholds at different time periods. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
  • Voice Control: Compatible with Alexa, Google Assistant. Just speak out your command, they can do on/off as you say, and check the temperature and humidity for you.
  • Smart Scenes: TH Origin can trigger other smart devices when the temperature and humidity reach the threshold or the device switches on or off. The device on, off, and invert can also as execute action.



More information:

  • Product Type: Wi-Fi Smart Switch
  • Electrical Rating: 100-240V~ 50/60Hz 16A Max
  • MCU: ESP32
  • Switch Channel: Single
  • Output Contact Type: Wet Contact
  • Max Load: 100-240V~ 50/60Hz 16A Max
  • Wireless Connectivity: Wi-Fi IEEE 802.11b/g/n 2.4GHz
  • RF 433MHz: No
  • Works With: Amazon Alexa, Google Assistant, Yandex Alice, IFTTT
  • DIY Mode: No
  • Certified Compliance: CE, FCC, RoHS
  • Operating Temperature: -10°C~40°C
  • Operating Humidity: 5% - 95% RH non-condensing
  • Casing Material: PC V0



Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin Sonoff TH R3 Origin

Quantity discount
QuantityDiscountProduct price
1 pcs more than less than 5 pcs - 17.77 €/pcs
5 pcs more than   10 % 15.99 €/pcs
Info
Stock
Out of stock
Status
NEW
Opinions
Be the first to review this product!
